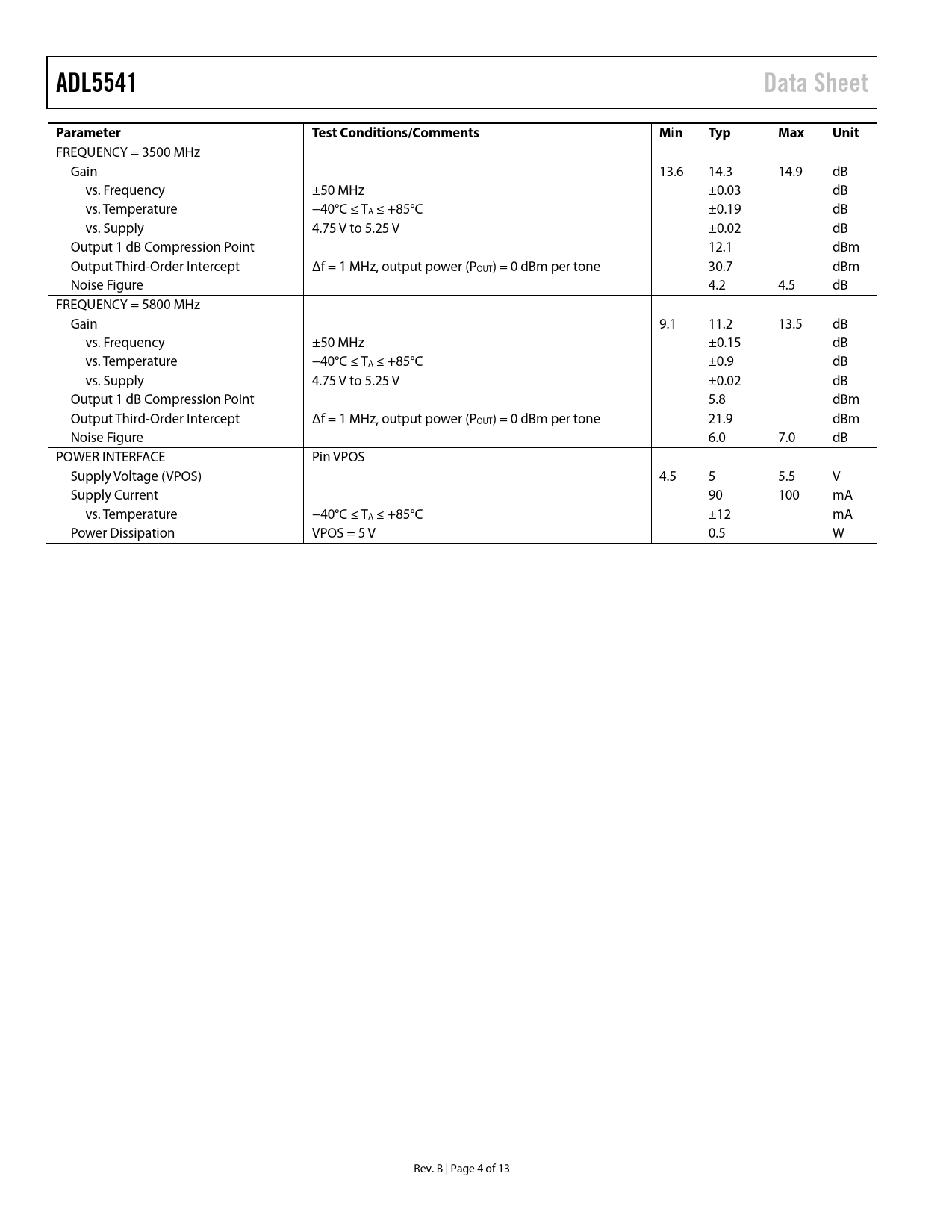

ADL5541 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY = 3500 MHz Gain 13.6 14.3 14.9 dB vs. Frequency ±50 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.19 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 12.1 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 30.7 dBm Noise Figure 4.2 4.5 dB FREQUENCY = 5800 MHz Gain 9.1 11.2 13.5 dB vs. Frequency ±50 MHz ±0.15 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.9 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 5.8 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 0 dBm per tone 21.9 dBm Noise Figure 6.0 7.0 dB POWER INTERFACE Pin VPOS Supply Voltage (VPOS) 4.5 5 5.5 V Supply Current 90 100 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±12 mA Power Dissipation VPOS = 5 V 0.5 W Rev. B | Page 4 of 13 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OPERATING TO 20 MHz BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
