Datasheet S-35720 (ABLIC)
| 制造商 | ABLIC |
| 描述 | Pin-selectable Wake-up Timer IC |
| 页数 / 页 | 20 / 1 — S-35720 Series. WAKE-UP TIMER IC. www.ablic.com. PIN-SELECTABLE WAKE-UP … |
| 修订版 | 1.0_00 |
| 文件格式/大小 | PDF / 414 Kb |
| 文件语言 | 英语 |
S-35720 Series. WAKE-UP TIMER IC. www.ablic.com. PIN-SELECTABLE WAKE-UP TIMER IC. Features. Applications. Package
该数据表的模型线
文件文字版本

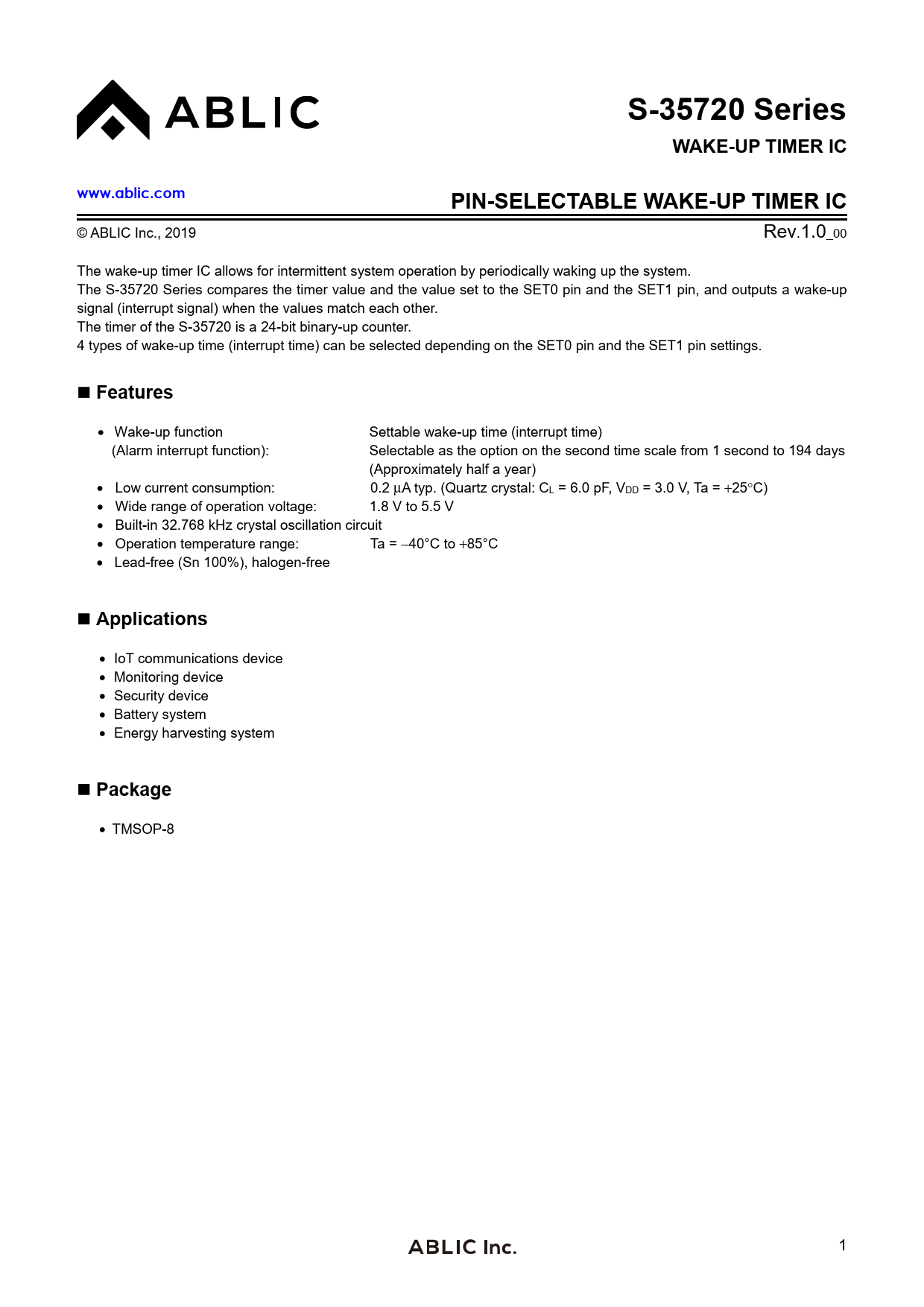

S-35720 Series WAKE-UP TIMER IC www.ablic.com PIN-SELECTABLE WAKE-UP TIMER IC
© ABLIC Inc., 2019 Rev.1.0_00 The wake-up timer IC allows for intermittent system operation by periodically waking up the system. The S-35720 Series compares the timer value and the value set to the SET0 pin and the SET1 pin, and outputs a wake-up signal (interrupt signal) when the values match each other. The timer of the S-35720 is a 24-bit binary-up counter. 4 types of wake-up time (interrupt time) can be selected depending on the SET0 pin and the SET1 pin settings.
Features
• Wake-up function Settable wake-up time (interrupt time) (Alarm interrupt function): Selectable as the option on the second time scale from 1 second to 194 days (Approximately half a year) • Low current consumption: 0.2 μA typ. (Quartz crystal: CL = 6.0 pF, VDD = 3.0 V, Ta = +25°C) • Wide range of operation voltage: 1.8 V to 5.5 V • Built-in 32.768 kHz crystal oscillation circuit • Operation temperature range: Ta = −40°C to +85°C • Lead-free (Sn 100%), halogen-free
Applications
• IoT communications device • Monitoring device • Security device • Battery system • Energy harvesting system
Package
• TMSOP-8 1
© ABLIC Inc., 2019 Rev.1.0_00 The wake-up timer IC allows for intermittent system operation by periodically waking up the system. The S-35720 Series compares the timer value and the value set to the SET0 pin and the SET1 pin, and outputs a wake-up signal (interrupt signal) when the values match each other. The timer of the S-35720 is a 24-bit binary-up counter. 4 types of wake-up time (interrupt time) can be selected depending on the SET0 pin and the SET1 pin settings.
Features
• Wake-up function Settable wake-up time (interrupt time) (Alarm interrupt function): Selectable as the option on the second time scale from 1 second to 194 days (Approximately half a year) • Low current consumption: 0.2 μA typ. (Quartz crystal: CL = 6.0 pF, VDD = 3.0 V, Ta = +25°C) • Wide range of operation voltage: 1.8 V to 5.5 V • Built-in 32.768 kHz crystal oscillation circuit • Operation temperature range: Ta = −40°C to +85°C • Lead-free (Sn 100%), halogen-free
Applications
• IoT communications device • Monitoring device • Security device • Battery system • Energy harvesting system
Package
• TMSOP-8 1
