CXT-STA4919 – Preliminary Datasheet. Pinout. Pin Number. Pin Name. Description. 1-May-19. Doc. PDS-181975 V1.0. WWW.CISSOID.COM
该数据表的模型线
文件文字版本
link to page 2 link to page 2 link to page 2

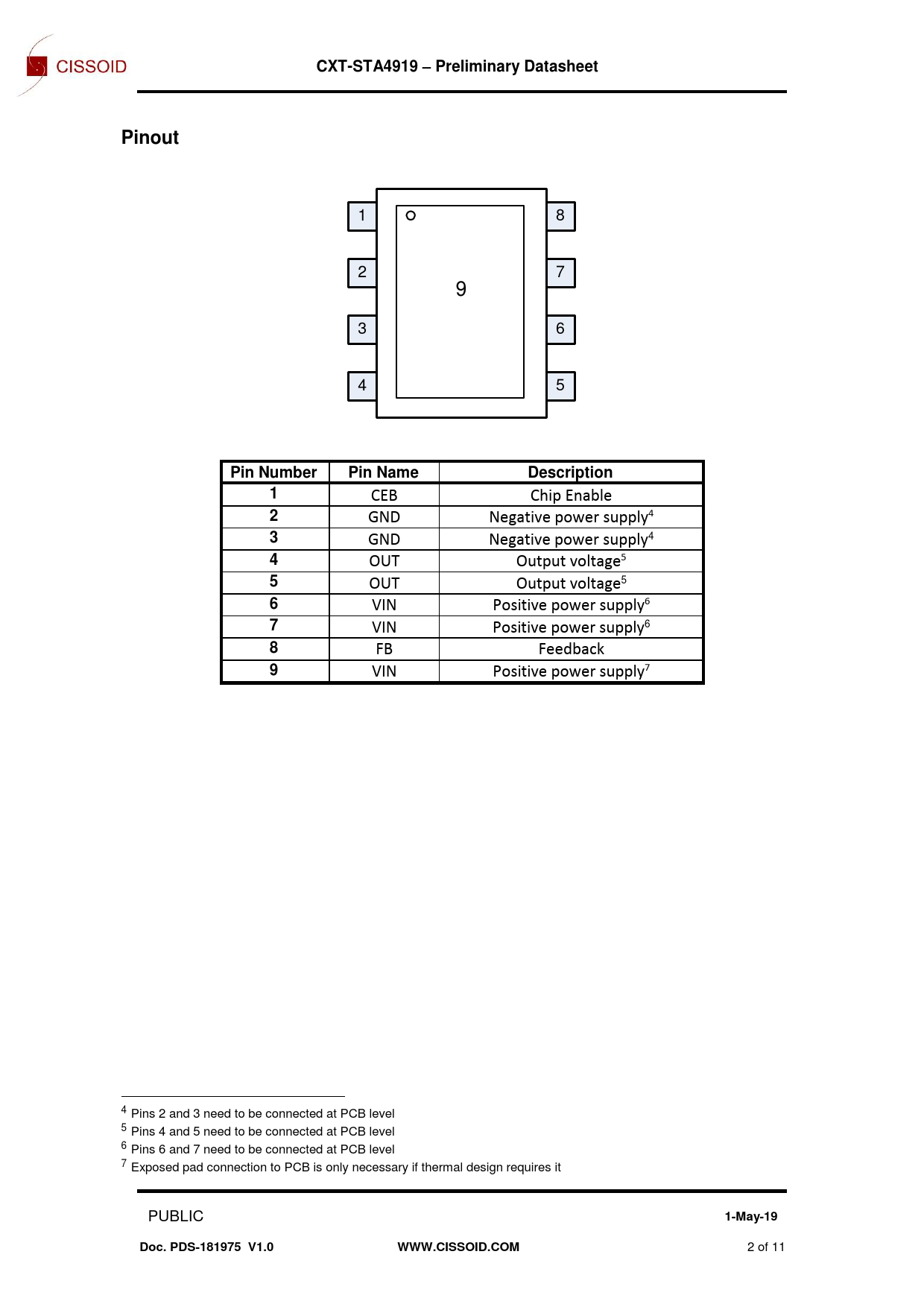

CXT-STA4919 – Preliminary Datasheet Pinout
1 8 2 7 9 3 6 4 5
Pin Number Pin Name Description 1
CEB Chip Enable
2
GND Negative power supply4
3
GND Negative power supply4
4
OUT Output voltage5
5
OUT Output voltage5
6
VIN Positive power supply6
7
VIN Positive power supply6
8
FB Feedback
9
VIN Positive power supply7 4 Pins 2 and 3 need to be connected at PCB level 5 Pins 4 and 5 need to be connected at PCB level 6 Pins 6 and 7 need to be connected at PCB level 7 Exposed pad connection to PCB is only necessary if thermal design requires it PUBLIC
1-May-19 Doc. PDS-181975 V1.0 WWW.CISSOID.COM
2 of 11
