Preliminary Datasheet CXT-STA4919 (Cissoid) - 3
| 制造商 | Cissoid |
| 描述 | High-Temperature Automotive Adjustable, Linear Voltage Regulator +3.0V to +28V / 50mA |
| 页数 / 页 | 11 / 3 — CXT-STA4919 – Preliminary Datasheet. Absolute Maximum Ratings. Operating … |
| 修订版 | 1.0 |
| 文件格式/大小 | PDF / 475 Kb |
| 文件语言 | 英语 |
CXT-STA4919 – Preliminary Datasheet. Absolute Maximum Ratings. Operating Conditions. ESD Rating. CAUTION:. 1-May-19
该数据表的模型线
文件文字版本

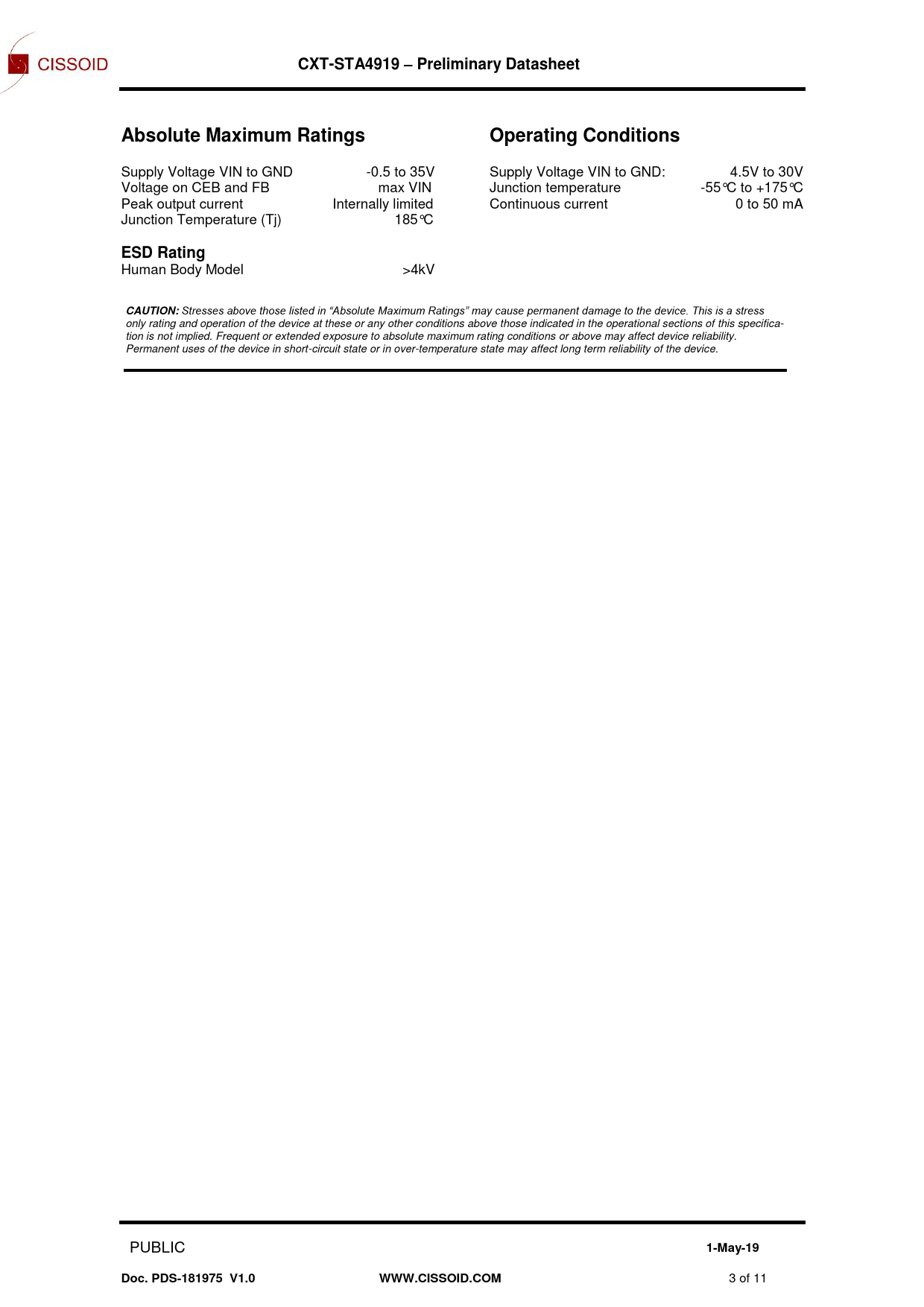

CXT-STA4919 – Preliminary Datasheet Absolute Maximum Ratings Operating Conditions
Supply Voltage VIN to GND -0.5 to 35V Supply Voltage VIN to GND: 4.5V to 30V Voltage on CEB and FB max VIN Junction temperature -55°C to +175°C Peak output current Internally limited Continuous current 0 to 50 mA Junction Temperature (Tj) 185°C
ESD Rating
Human Body Model >4kV
CAUTION:
Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specifica- tion is not implied. Frequent or extended exposure to absolute maximum rating conditions or above may affect device reliability. Permanent uses of the device in short-circuit state or in over-temperature state may affect long term reliability of the device. PUBLIC
1-May-19 Doc. PDS-181975 V1.0 WWW.CISSOID.COM
3 of 11
