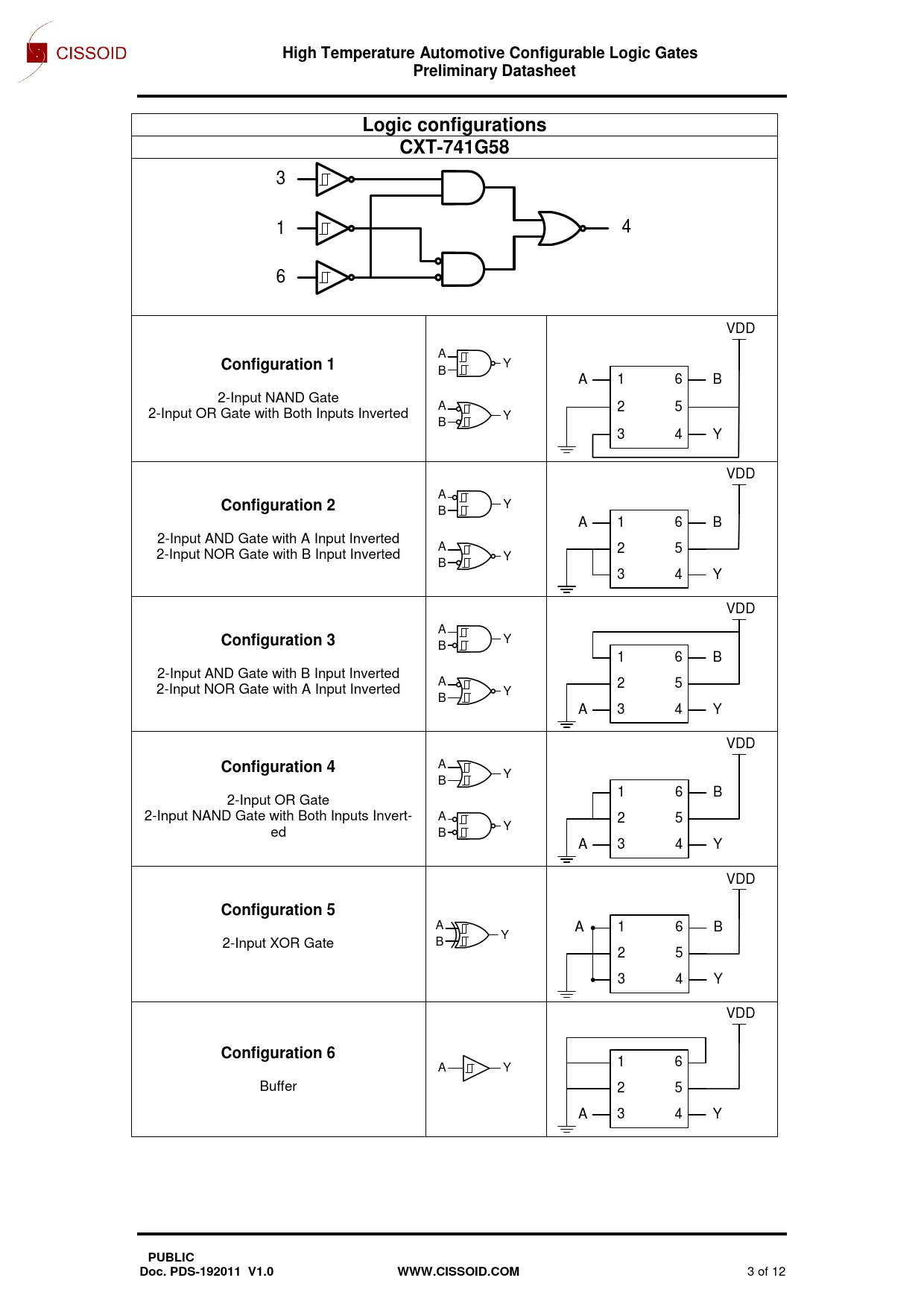

May. 19 High Temperature Automotive Configurable Logic Gates Preliminary Datasheet Logic configurations CXT-741G58
3 1 4 6 VDD A
Configuration 1
Y B A 1 6 B 2-Input NAND Gate A 2 5 2-Input OR Gate with Both Inputs Inverted Y B 3 4 Y VDD A
Configuration 2
Y B A 1 6 B 2-Input AND Gate with A Input Inverted A 2-Input NOR Gate with B Input Inverted 2 5 Y B 3 4 Y VDD A
Configuration 3
Y B 1 6 B 2-Input AND Gate with B Input Inverted A 2-Input NOR Gate with A Input Inverted 2 5 Y B A 3 4 Y VDD
Configuration 4
A Y B 1 6 B 2-Input OR Gate 2-Input NAND Gate with Both Inputs Invert- A 2 5 Y ed B A 3 4 Y VDD
Configuration 5
A A 1 6 B Y 2-Input XOR Gate B 2 5 3 4 Y VDD
Configuration 6
1 6 A Y Buffer 2 5 A 3 4 Y
