Enhanced Product. AD7124-4-EP. Parameter1 Min. Typ. Max. Unit. Test. Conditions/Comments
该数据表的模型线
文件文字版本
link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9

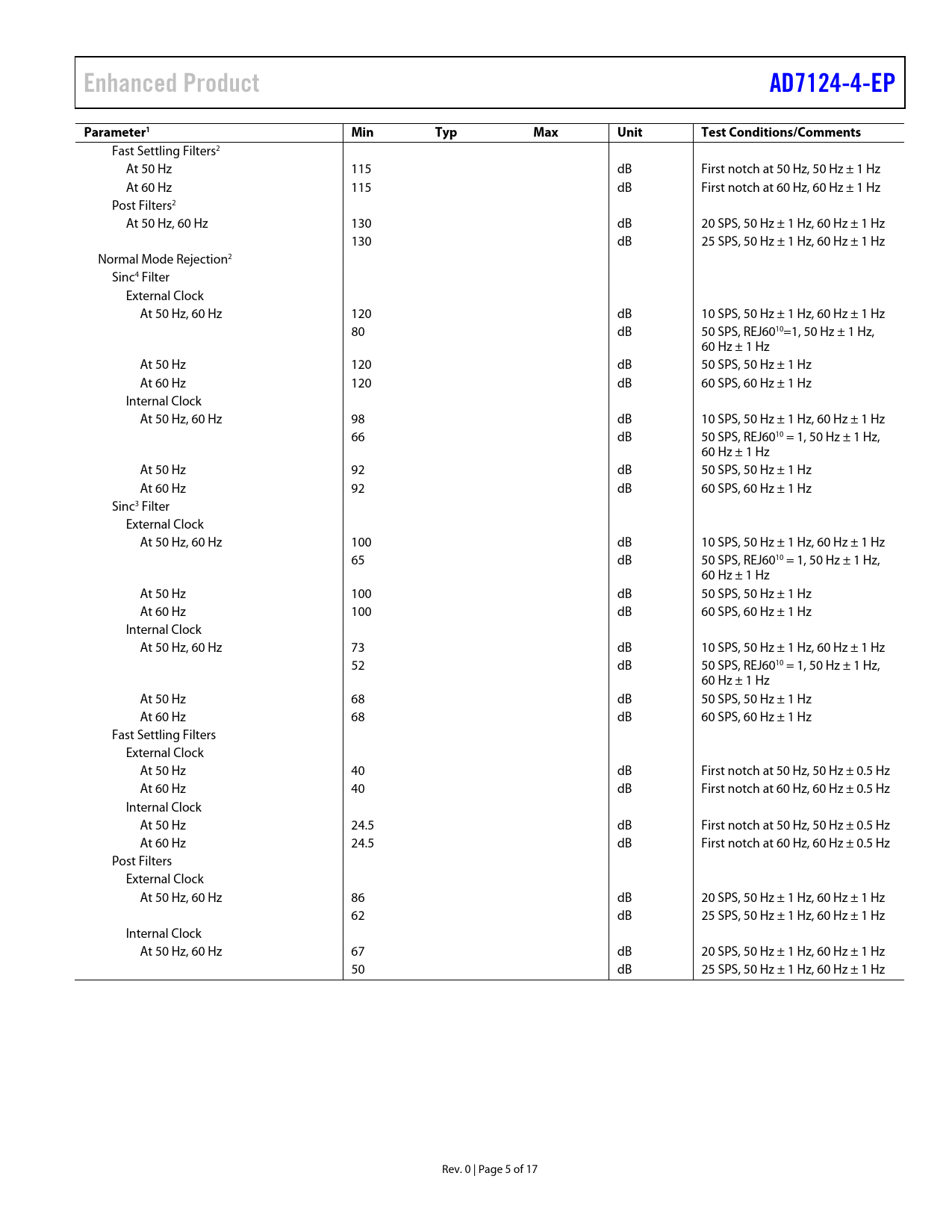

Enhanced Product AD7124-4-EP Parameter1 Min Typ Max Unit Test Conditions/Comments
Fast Settling Filters2 At 50 Hz 115 dB First notch at 50 Hz, 50 Hz ± 1 Hz At 60 Hz 115 dB First notch at 60 Hz, 60 Hz ± 1 Hz Post Filters2 At 50 Hz, 60 Hz 130 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 130 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Normal Mode Rejection2 Sinc4 Filter External Clock At 50 Hz, 60 Hz 120 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 80 dB 50 SPS, REJ6010=1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 120 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 120 dB 60 SPS, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 98 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 66 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 92 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 92 dB 60 SPS, 60 Hz ± 1 Hz Sinc3 Filter External Clock At 50 Hz, 60 Hz 100 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 65 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 100 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 100 dB 60 SPS, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 73 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 52 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 68 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 68 dB 60 SPS, 60 Hz ± 1 Hz Fast Settling Filters External Clock At 50 Hz 40 dB First notch at 50 Hz, 50 Hz ± 0.5 Hz At 60 Hz 40 dB First notch at 60 Hz, 60 Hz ± 0.5 Hz Internal Clock At 50 Hz 24.5 dB First notch at 50 Hz, 50 Hz ± 0.5 Hz At 60 Hz 24.5 dB First notch at 60 Hz, 60 Hz ± 0.5 Hz Post Filters External Clock At 50 Hz, 60 Hz 86 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 62 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 67 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Rev. 0 | Page 5 of 17 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
Enhanced Product AD7124-4-EP Parameter1 Min Typ Max Unit Test Conditions/Comments
Fast Settling Filters2 At 50 Hz 115 dB First notch at 50 Hz, 50 Hz ± 1 Hz At 60 Hz 115 dB First notch at 60 Hz, 60 Hz ± 1 Hz Post Filters2 At 50 Hz, 60 Hz 130 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 130 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Normal Mode Rejection2 Sinc4 Filter External Clock At 50 Hz, 60 Hz 120 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 80 dB 50 SPS, REJ6010=1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 120 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 120 dB 60 SPS, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 98 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 66 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 92 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 92 dB 60 SPS, 60 Hz ± 1 Hz Sinc3 Filter External Clock At 50 Hz, 60 Hz 100 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 65 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 100 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 100 dB 60 SPS, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 73 dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 52 dB 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz At 50 Hz 68 dB 50 SPS, 50 Hz ± 1 Hz At 60 Hz 68 dB 60 SPS, 60 Hz ± 1 Hz Fast Settling Filters External Clock At 50 Hz 40 dB First notch at 50 Hz, 50 Hz ± 0.5 Hz At 60 Hz 40 dB First notch at 60 Hz, 60 Hz ± 0.5 Hz Internal Clock At 50 Hz 24.5 dB First notch at 50 Hz, 50 Hz ± 0.5 Hz At 60 Hz 24.5 dB First notch at 60 Hz, 60 Hz ± 0.5 Hz Post Filters External Clock At 50 Hz, 60 Hz 86 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 62 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Internal Clock At 50 Hz, 60 Hz 67 dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 dB 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Rev. 0 | Page 5 of 17 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
