Datasheet LTM2173-14 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 14-Bit, 80Msps Low Power Quad ADC |
| 页数 / 页 | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER … |
| 修订版 | A |
| 文件格式/大小 | PDF / 414 Kb |
| 文件语言 | 英语 |

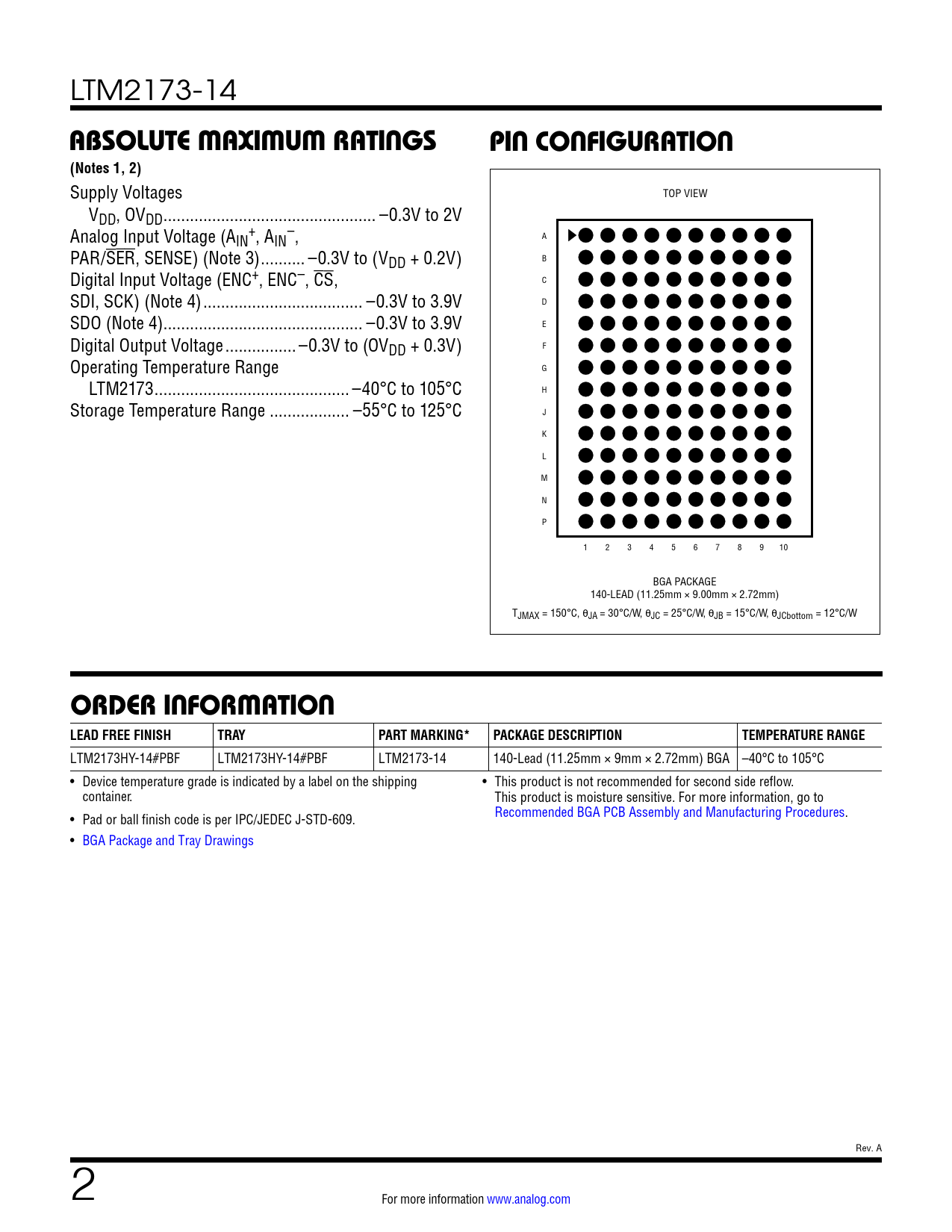

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION LEAD FREE FINISH. TRAY. PART MARKING*
该数据表的模型线
文件文字版本
LTM2173-14
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltages TOP VIEW VDD, OVDD .. –0.3V to 2V Analog Input Voltage (A + – IN , AIN , A PAR/SER, SENSE) (Note 3) .. –0.3V to (VDD + 0.2V) B Digital Input Voltage (ENC+, ENC–, CS, C SDI, SCK) (Note 4) .. –0.3V to 3.9V D SDO (Note 4) ... –0.3V to 3.9V E Digital Output Voltage .. –0.3V to (OVDD + 0.3V) F Operating Temperature Range G LTM2173 .. –40°C to 105°C H Storage Temperature Range .. –55°C to 125°C J K L M N P 1 2 3 4 5 6 7 8 9 10 BGA PACKAGE 140-LEAD (11.25mm × 9.00mm × 2.72mm) TJMAX = 150°C, θJA = 30°C/W, θJC = 25°C/W, θJB = 15°C/W, θJCbottom = 12°C/W
