Datasheet XC6237 (Torex)
| 制造商 | Torex |
| 描述 | Ultra-Low Supply Current 0.6μA High Speed LDO Voltage Regulators |
| 页数 / 页 | 27 / 1 — XC6237Series. Low Supply Current. Accuracy. Operating Voltage Range. … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
XC6237Series. Low Supply Current. Accuracy. Operating Voltage Range. Output Voltage Range. Maximum Output Current
该数据表的模型线
- XC6237A1219R-G XC6237A121NR-G XC6237A12B9R-G XC6237A12BNR-G XC6237A1319R-G XC6237A131NR-G XC6237A13B9R-G XC6237A13BNR-G XC6237A1419R-G XC6237A141NR-G XC6237A14B9R-G XC6237A14BNR-G XC6237A1519R-G XC6237A151NR-G XC6237A15B9R-G XC6237A15BNR-G XC6237A1619R-G XC6237A161NR-G XC6237A16B9R-G XC6237A16BNR-G XC6237A1719R-G XC6237A171NR-G XC6237A17B9R-G XC6237A17BNR-G XC6237A1819R-G XC6237A181NR-G XC6237A18B9R-G XC6237A18BNR-G XC6237A1919R-G XC6237A191NR-G XC6237A19B9R-G XC6237A19BNR-G XC6237A2019R-G XC6237A201NR-G XC6237A20B9R-G XC6237A20BNR-G XC6237A2119R-G XC6237A211NR-G XC6237A21B9R-G XC6237A21BNR-G XC6237A2219R-G XC6237A221NR-G XC6237A22B9R-G XC6237A22BNR-G XC6237A2319R-G XC6237A231NR-G XC6237A23B9R-G XC6237A23BNR-G XC6237A2419R-G XC6237A241NR-G XC6237A24B9R-G XC6237A24BNR-G XC6237A2519R-G XC6237A251NR-G XC6237A25B9R-G XC6237A25BNR-G XC6237A2619R-G XC6237A261NR-G XC6237A26B9R-G XC6237A26BNR-G XC6237A2719R-G XC6237A271NR-G XC6237A27B9R-G XC6237A27BNR-G XC6237A2819R-G XC6237A281NR-G XC6237A28B9R-G XC6237A28BNR-G XC6237A2919R-G XC6237A291NR-G XC6237A29B9R-G XC6237A29BNR-G XC6237A3019R-G XC6237A301NR-G XC6237A30B9R-G XC6237A30BNR-G XC6237A3119R-G XC6237A311NR-G XC6237A31B9R-G XC6237A31BNR-G XC6237A3219R-G XC6237A321NR-G XC6237A32B9R-G XC6237A32BNR-G XC6237A3319R-G XC6237A331NR-G XC6237A33B9R-G XC6237A33BNR-G XC6237A3419R-G XC6237A341NR-G XC6237A34B9R-G XC6237A34BNR-G XC6237A3519R-G XC6237A351NR-G XC6237A35B9R-G XC6237A35BNR-G XC6237A3619R-G XC6237A361NR-G XC6237A36B9R-G XC6237A36BNR-G XC6237A3719R-G XC6237A371NR-G XC6237A37B9R-G XC6237A37BNR-G XC6237A3819R-G XC6237A381NR-G XC6237A38B9R-G XC6237A38BNR-G XC6237A3919R-G XC6237A391NR-G XC6237A39B9R-G XC6237A39BNR-G XC6237A4019R-G XC6237A401NR-G XC6237A40B9R-G XC6237A40BNR-G XC6237A4119R-G XC6237A411NR-G XC6237A41B9R-G XC6237A41BNR-G XC6237A4219R-G XC6237A421NR-G XC6237A42B9R-G XC6237A42BNR-G XC6237A4319R-G XC6237A431NR-G XC6237A43B9R-G XC6237A43BNR-G XC6237A4419R-G XC6237A441NR-G XC6237A44B9R-G XC6237A44BNR-G XC6237A4519R-G XC6237A451NR-G XC6237A45B9R-G XC6237A45BNR-G XC6237A4619R-G XC6237A461NR-G XC6237A46B9R-G XC6237A46BNR-G XC6237A4719R-G XC6237A471NR-G XC6237A47B9R-G XC6237A47BNR-G XC6237A4819R-G XC6237A481NR-G XC6237A48B9R-G XC6237A48BNR-G XC6237A4919R-G XC6237A491NR-G XC6237A49B9R-G XC6237A49BNR-G XC6237A5019R-G XC6237A501NR-G XC6237A50B9R-G XC6237A50BNR-G XC6237B1219R-G XC6237B121NR-G XC6237B12B9R-G XC6237B12BNR-G XC6237B1319R-G XC6237B131NR-G XC6237B13B9R-G XC6237B13BNR-G XC6237B1419R-G XC6237B141NR-G XC6237B14B9R-G XC6237B14BNR-G XC6237B1519R-G XC6237B151NR-G XC6237B15B9R-G XC6237B15BNR-G XC6237B1619R-G XC6237B161NR-G XC6237B16B9R-G XC6237B16BNR-G XC6237B1719R-G XC6237B171NR-G XC6237B17B9R-G XC6237B17BNR-G XC6237B1819R-G XC6237B181NR-G XC6237B18B9R-G XC6237B18BNR-G XC6237B1919R-G XC6237B191NR-G XC6237B19B9R-G XC6237B19BNR-G XC6237B2019R-G XC6237B201NR-G XC6237B20B9R-G XC6237B20BNR-G XC6237B2119R-G XC6237B211NR-G XC6237B21B9R-G XC6237B21BNR-G XC6237B2219R-G XC6237B221NR-G XC6237B22B9R-G XC6237B22BNR-G XC6237B2319R-G XC6237B231NR-G XC6237B23B9R-G XC6237B23BNR-G XC6237B2419R-G XC6237B241NR-G XC6237B24B9R-G XC6237B24BNR-G XC6237B2519R-G XC6237B251NR-G XC6237B25B9R-G XC6237B25BNR-G XC6237B2619R-G XC6237B261NR-G XC6237B26B9R-G XC6237B26BNR-G XC6237B2719R-G XC6237B271NR-G XC6237B27B9R-G XC6237B27BNR-G XC6237B2819R-G XC6237B281NR-G XC6237B28B9R-G XC6237B28BNR-G XC6237B2919R-G XC6237B291NR-G XC6237B29B9R-G XC6237B29BNR-G XC6237B3019R-G XC6237B301NR-G XC6237B30B9R-G XC6237B30BNR-G XC6237B3119R-G XC6237B311NR-G XC6237B31B9R-G XC6237B31BNR-G XC6237B3219R-G XC6237B321NR-G XC6237B32B9R-G XC6237B32BNR-G XC6237B3319R-G XC6237B331NR-G XC6237B33B9R-G XC6237B33BNR-G XC6237B3419R-G XC6237B341NR-G XC6237B34B9R-G XC6237B34BNR-G XC6237B3519R-G XC6237B351NR-G XC6237B35B9R-G XC6237B35BNR-G XC6237B3619R-G XC6237B361NR-G XC6237B36B9R-G XC6237B36BNR-G XC6237B3719R-G XC6237B371NR-G XC6237B37B9R-G XC6237B37BNR-G XC6237B3819R-G XC6237B381NR-G XC6237B38B9R-G XC6237B38BNR-G XC6237B3919R-G XC6237B391NR-G XC6237B39B9R-G XC6237B39BNR-G XC6237B4019R-G XC6237B401NR-G XC6237B40B9R-G XC6237B40BNR-G XC6237B4119R-G XC6237B411NR-G XC6237B41B9R-G XC6237B41BNR-G XC6237B4219R-G XC6237B421NR-G XC6237B42B9R-G XC6237B42BNR-G XC6237B4319R-G XC6237B431NR-G XC6237B43B9R-G XC6237B43BNR-G XC6237B4419R-G XC6237B441NR-G XC6237B44B9R-G XC6237B44BNR-G XC6237B4519R-G XC6237B451NR-G XC6237B45B9R-G XC6237B45BNR-G XC6237B4619R-G XC6237B461NR-G XC6237B46B9R-G XC6237B46BNR-G XC6237B4719R-G XC6237B471NR-G XC6237B47B9R-G XC6237B47BNR-G XC6237B4819R-G XC6237B481NR-G XC6237B48B9R-G XC6237B48BNR-G XC6237B4919R-G XC6237B491NR-G XC6237B49B9R-G XC6237B49BNR-G XC6237B5019R-G XC6237B501NR-G XC6237B50B9R-G XC6237B50BNR-G XC6237C1219R-G XC6237C121NR-G XC6237C12B9R-G XC6237C12BNR-G XC6237C1319R-G XC6237C131NR-G XC6237C13B9R-G XC6237C13BNR-G XC6237C1419R-G XC6237C141NR-G XC6237C14B9R-G XC6237C14BNR-G XC6237C1519R-G XC6237C151NR-G XC6237C15B9R-G XC6237C15BNR-G XC6237C1619R-G XC6237C161NR-G XC6237C16B9R-G XC6237C16BNR-G XC6237C1719R-G XC6237C171NR-G XC6237C17B9R-G XC6237C17BNR-G XC6237C1819R-G XC6237C181NR-G XC6237C18B9R-G XC6237C18BNR-G XC6237C1919R-G XC6237C191NR-G XC6237C19B9R-G XC6237C19BNR-G XC6237C2019R-G XC6237C201NR-G XC6237C20B9R-G XC6237C20BNR-G XC6237C2119R-G XC6237C211NR-G XC6237C21B9R-G XC6237C21BNR-G XC6237C2219R-G XC6237C221NR-G XC6237C22B9R-G XC6237C22BNR-G XC6237C2319R-G XC6237C231NR-G XC6237C23B9R-G XC6237C23BNR-G XC6237C2419R-G XC6237C241NR-G XC6237C24B9R-G XC6237C24BNR-G XC6237C2519R-G XC6237C251NR-G XC6237C25B9R-G XC6237C25BNR-G XC6237C2619R-G XC6237C261NR-G XC6237C26B9R-G XC6237C26BNR-G XC6237C2719R-G XC6237C271NR-G XC6237C27B9R-G XC6237C27BNR-G XC6237C2819R-G XC6237C281NR-G XC6237C28B9R-G XC6237C28BNR-G XC6237C2919R-G XC6237C291NR-G XC6237C29B9R-G XC6237C29BNR-G XC6237C3019R-G XC6237C301NR-G XC6237C30B9R-G XC6237C30BNR-G XC6237C3119R-G XC6237C311NR-G XC6237C31B9R-G XC6237C31BNR-G XC6237C3219R-G XC6237C321NR-G XC6237C32B9R-G XC6237C32BNR-G XC6237C3319R-G XC6237C331NR-G XC6237C33B9R-G XC6237C33BNR-G XC6237C3419R-G XC6237C341NR-G XC6237C34B9R-G XC6237C34BNR-G XC6237C3519R-G XC6237C351NR-G XC6237C35B9R-G XC6237C35BNR-G XC6237C3619R-G XC6237C361NR-G XC6237C36B9R-G XC6237C36BNR-G XC6237C3719R-G XC6237C371NR-G XC6237C37B9R-G XC6237C37BNR-G XC6237C3819R-G XC6237C381NR-G XC6237C38B9R-G XC6237C38BNR-G XC6237C3919R-G XC6237C391NR-G XC6237C39B9R-G XC6237C39BNR-G XC6237C4019R-G XC6237C401NR-G XC6237C40B9R-G XC6237C40BNR-G XC6237C4119R-G XC6237C411NR-G XC6237C41B9R-G XC6237C41BNR-G XC6237C4219R-G XC6237C421NR-G XC6237C42B9R-G XC6237C42BNR-G XC6237C4319R-G XC6237C431NR-G XC6237C43B9R-G XC6237C43BNR-G XC6237C4419R-G XC6237C441NR-G XC6237C44B9R-G XC6237C44BNR-G XC6237C4519R-G XC6237C451NR-G XC6237C45B9R-G XC6237C45BNR-G XC6237C4619R-G XC6237C461NR-G XC6237C46B9R-G XC6237C46BNR-G XC6237C4719R-G XC6237C471NR-G XC6237C47B9R-G XC6237C47BNR-G XC6237C4819R-G XC6237C481NR-G XC6237C48B9R-G XC6237C48BNR-G XC6237C4919R-G XC6237C491NR-G XC6237C49B9R-G XC6237C49BNR-G XC6237C5019R-G XC6237C501NR-G XC6237C50B9R-G XC6237C50BNR-G
文件文字版本

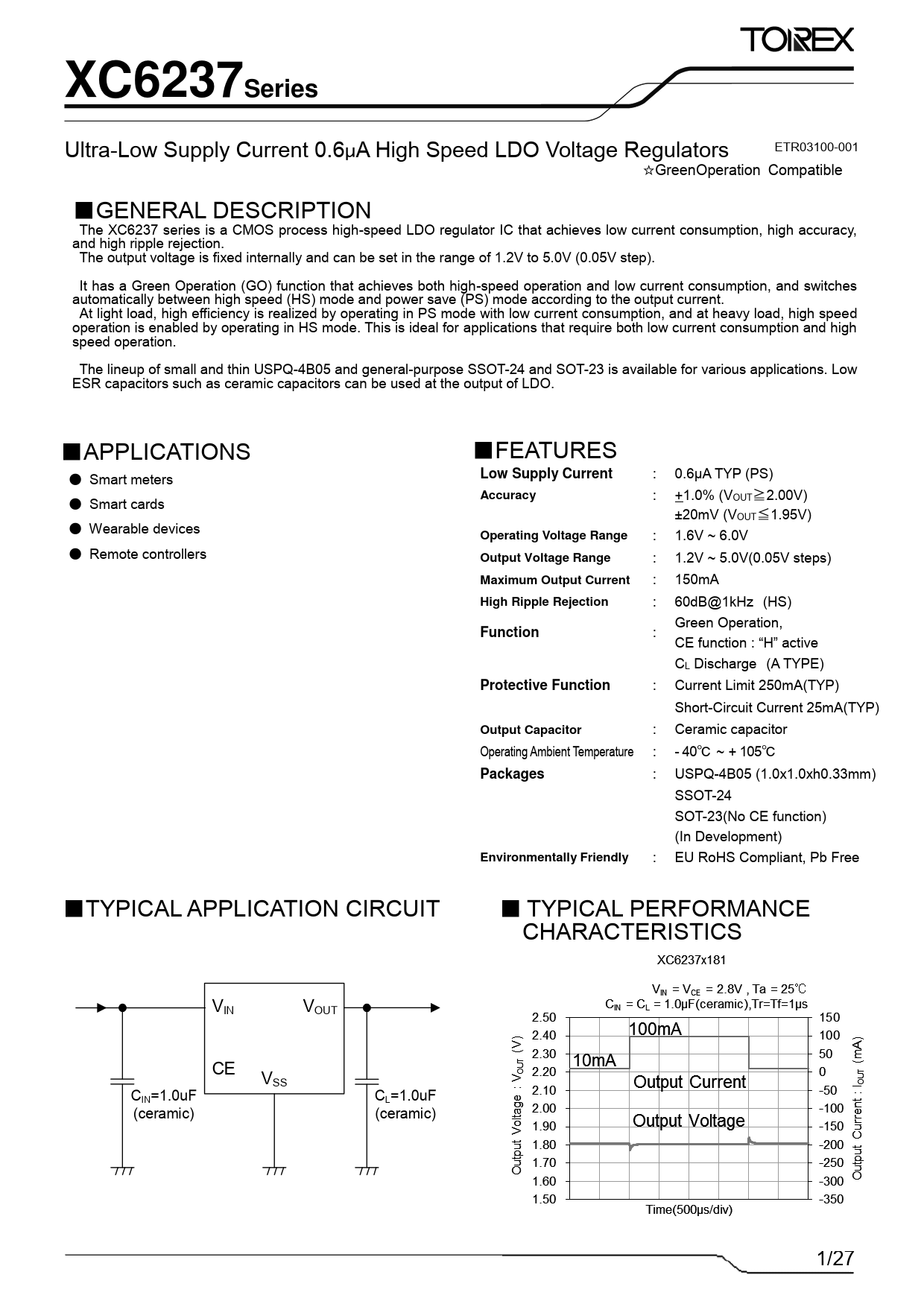

XC6237Series
Ultra-Low Supply Current 0.6µA High Speed LDO Voltage Regulators ETR03100-001 ☆GreenOperation Compatible ■GENERAL DESCRIPTION The XC6237 series is a CMOS process high-speed LDO regulator IC that achieves low current consumption, high accuracy, and high ripple rejection. The output voltage is fixed internally and can be set in the range of 1.2V to 5.0V (0.05V step). It has a Green Operation (GO) function that achieves both high-speed operation and low current consumption, and switches automatically between high speed (HS) mode and power save (PS) mode according to the output current. At light load, high efficiency is realized by operating in PS mode with low current consumption, and at heavy load, high speed operation is enabled by operating in HS mode. This is ideal for applications that require both low current consumption and high speed operation. The lineup of small and thin USPQ-4B05 and general-purpose SSOT-24 and SOT-23 is available for various applications. Low ESR capacitors such as ceramic capacitors can be used at the output of LDO. ■APPLICATIONS ■FEATURES
Low Supply Current
: 0.6μA TYP (PS) ● Smart meters
Accuracy
: +1.0% (VOUT≧2.00V) ● Smart cards ±20mV (VOUT≦1.95V) ● Wearable devices
Operating Voltage Range
: 1.6 V ~ 6.0V ● Remote controllers
Output Voltage Range
: 1.2V ~ 5.0V(0.05V steps)
Maximum Output Current
: 150mA
High Ripple Rejection
: 60dB@1kHz (HS) Green Operation,
Function
: CE function : “H” active CL Discharge (A TYPE)
Protective Function
: Current Limit 250mA(TYP) Short-Circuit Current 25mA(TYP)
Output Capacitor
: Ceram ic capacitor Operating Ambient Temperature : - 40℃ ~ + 105℃
Packages
: USPQ-4B05 (1.0x1.0xh0.33mm) SSOT-24 SOT-23(No CE function) (In Development)
Environmentally Friendly
: EU RoHS Compliant, Pb Free ■TYPICAL APPLICATION CIRCUIT ■ TYPICAL PERFORMANCE CHARACTERISTICS VIN VOUT CE VSS CIN=1.0uF CL=1.0uF (ceramic) (ceramic) 1/27 1/27 27 Document Outline XC6237 (2) XC6237_ETR03100-001 XC6237 XC6237_ETR03100-001
