Datasheet XC6237 (Torex) - 4
| 制造商 | Torex |
| 描述 | Ultra-Low Supply Current 0.6μA High Speed LDO Voltage Regulators |
| 页数 / 页 | 27 / 4 — XC6237 Series |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
XC6237 Series
该数据表的模型线
- XC6237A1219R-G XC6237A121NR-G XC6237A12B9R-G XC6237A12BNR-G XC6237A1319R-G XC6237A131NR-G XC6237A13B9R-G XC6237A13BNR-G XC6237A1419R-G XC6237A141NR-G XC6237A14B9R-G XC6237A14BNR-G XC6237A1519R-G XC6237A151NR-G XC6237A15B9R-G XC6237A15BNR-G XC6237A1619R-G XC6237A161NR-G XC6237A16B9R-G XC6237A16BNR-G XC6237A1719R-G XC6237A171NR-G XC6237A17B9R-G XC6237A17BNR-G XC6237A1819R-G XC6237A181NR-G XC6237A18B9R-G XC6237A18BNR-G XC6237A1919R-G XC6237A191NR-G XC6237A19B9R-G XC6237A19BNR-G XC6237A2019R-G XC6237A201NR-G XC6237A20B9R-G XC6237A20BNR-G XC6237A2119R-G XC6237A211NR-G XC6237A21B9R-G XC6237A21BNR-G XC6237A2219R-G XC6237A221NR-G XC6237A22B9R-G XC6237A22BNR-G XC6237A2319R-G XC6237A231NR-G XC6237A23B9R-G XC6237A23BNR-G XC6237A2419R-G XC6237A241NR-G XC6237A24B9R-G XC6237A24BNR-G XC6237A2519R-G XC6237A251NR-G XC6237A25B9R-G XC6237A25BNR-G XC6237A2619R-G XC6237A261NR-G XC6237A26B9R-G XC6237A26BNR-G XC6237A2719R-G XC6237A271NR-G XC6237A27B9R-G XC6237A27BNR-G XC6237A2819R-G XC6237A281NR-G XC6237A28B9R-G XC6237A28BNR-G XC6237A2919R-G XC6237A291NR-G XC6237A29B9R-G XC6237A29BNR-G XC6237A3019R-G XC6237A301NR-G XC6237A30B9R-G XC6237A30BNR-G XC6237A3119R-G XC6237A311NR-G XC6237A31B9R-G XC6237A31BNR-G XC6237A3219R-G XC6237A321NR-G XC6237A32B9R-G XC6237A32BNR-G XC6237A3319R-G XC6237A331NR-G XC6237A33B9R-G XC6237A33BNR-G XC6237A3419R-G XC6237A341NR-G XC6237A34B9R-G XC6237A34BNR-G XC6237A3519R-G XC6237A351NR-G XC6237A35B9R-G XC6237A35BNR-G XC6237A3619R-G XC6237A361NR-G XC6237A36B9R-G XC6237A36BNR-G XC6237A3719R-G XC6237A371NR-G XC6237A37B9R-G XC6237A37BNR-G XC6237A3819R-G XC6237A381NR-G XC6237A38B9R-G XC6237A38BNR-G XC6237A3919R-G XC6237A391NR-G XC6237A39B9R-G XC6237A39BNR-G XC6237A4019R-G XC6237A401NR-G XC6237A40B9R-G XC6237A40BNR-G XC6237A4119R-G XC6237A411NR-G XC6237A41B9R-G XC6237A41BNR-G XC6237A4219R-G XC6237A421NR-G XC6237A42B9R-G XC6237A42BNR-G XC6237A4319R-G XC6237A431NR-G XC6237A43B9R-G XC6237A43BNR-G XC6237A4419R-G XC6237A441NR-G XC6237A44B9R-G XC6237A44BNR-G XC6237A4519R-G XC6237A451NR-G XC6237A45B9R-G XC6237A45BNR-G XC6237A4619R-G XC6237A461NR-G XC6237A46B9R-G XC6237A46BNR-G XC6237A4719R-G XC6237A471NR-G XC6237A47B9R-G XC6237A47BNR-G XC6237A4819R-G XC6237A481NR-G XC6237A48B9R-G XC6237A48BNR-G XC6237A4919R-G XC6237A491NR-G XC6237A49B9R-G XC6237A49BNR-G XC6237A5019R-G XC6237A501NR-G XC6237A50B9R-G XC6237A50BNR-G XC6237B1219R-G XC6237B121NR-G XC6237B12B9R-G XC6237B12BNR-G XC6237B1319R-G XC6237B131NR-G XC6237B13B9R-G XC6237B13BNR-G XC6237B1419R-G XC6237B141NR-G XC6237B14B9R-G XC6237B14BNR-G XC6237B1519R-G XC6237B151NR-G XC6237B15B9R-G XC6237B15BNR-G XC6237B1619R-G XC6237B161NR-G XC6237B16B9R-G XC6237B16BNR-G XC6237B1719R-G XC6237B171NR-G XC6237B17B9R-G XC6237B17BNR-G XC6237B1819R-G XC6237B181NR-G XC6237B18B9R-G XC6237B18BNR-G XC6237B1919R-G XC6237B191NR-G XC6237B19B9R-G XC6237B19BNR-G XC6237B2019R-G XC6237B201NR-G XC6237B20B9R-G XC6237B20BNR-G XC6237B2119R-G XC6237B211NR-G XC6237B21B9R-G XC6237B21BNR-G XC6237B2219R-G XC6237B221NR-G XC6237B22B9R-G XC6237B22BNR-G XC6237B2319R-G XC6237B231NR-G XC6237B23B9R-G XC6237B23BNR-G XC6237B2419R-G XC6237B241NR-G XC6237B24B9R-G XC6237B24BNR-G XC6237B2519R-G XC6237B251NR-G XC6237B25B9R-G XC6237B25BNR-G XC6237B2619R-G XC6237B261NR-G XC6237B26B9R-G XC6237B26BNR-G XC6237B2719R-G XC6237B271NR-G XC6237B27B9R-G XC6237B27BNR-G XC6237B2819R-G XC6237B281NR-G XC6237B28B9R-G XC6237B28BNR-G XC6237B2919R-G XC6237B291NR-G XC6237B29B9R-G XC6237B29BNR-G XC6237B3019R-G XC6237B301NR-G XC6237B30B9R-G XC6237B30BNR-G XC6237B3119R-G XC6237B311NR-G XC6237B31B9R-G XC6237B31BNR-G XC6237B3219R-G XC6237B321NR-G XC6237B32B9R-G XC6237B32BNR-G XC6237B3319R-G XC6237B331NR-G XC6237B33B9R-G XC6237B33BNR-G XC6237B3419R-G XC6237B341NR-G XC6237B34B9R-G XC6237B34BNR-G XC6237B3519R-G XC6237B351NR-G XC6237B35B9R-G XC6237B35BNR-G XC6237B3619R-G XC6237B361NR-G XC6237B36B9R-G XC6237B36BNR-G XC6237B3719R-G XC6237B371NR-G XC6237B37B9R-G XC6237B37BNR-G XC6237B3819R-G XC6237B381NR-G XC6237B38B9R-G XC6237B38BNR-G XC6237B3919R-G XC6237B391NR-G XC6237B39B9R-G XC6237B39BNR-G XC6237B4019R-G XC6237B401NR-G XC6237B40B9R-G XC6237B40BNR-G XC6237B4119R-G XC6237B411NR-G XC6237B41B9R-G XC6237B41BNR-G XC6237B4219R-G XC6237B421NR-G XC6237B42B9R-G XC6237B42BNR-G XC6237B4319R-G XC6237B431NR-G XC6237B43B9R-G XC6237B43BNR-G XC6237B4419R-G XC6237B441NR-G XC6237B44B9R-G XC6237B44BNR-G XC6237B4519R-G XC6237B451NR-G XC6237B45B9R-G XC6237B45BNR-G XC6237B4619R-G XC6237B461NR-G XC6237B46B9R-G XC6237B46BNR-G XC6237B4719R-G XC6237B471NR-G XC6237B47B9R-G XC6237B47BNR-G XC6237B4819R-G XC6237B481NR-G XC6237B48B9R-G XC6237B48BNR-G XC6237B4919R-G XC6237B491NR-G XC6237B49B9R-G XC6237B49BNR-G XC6237B5019R-G XC6237B501NR-G XC6237B50B9R-G XC6237B50BNR-G XC6237C1219R-G XC6237C121NR-G XC6237C12B9R-G XC6237C12BNR-G XC6237C1319R-G XC6237C131NR-G XC6237C13B9R-G XC6237C13BNR-G XC6237C1419R-G XC6237C141NR-G XC6237C14B9R-G XC6237C14BNR-G XC6237C1519R-G XC6237C151NR-G XC6237C15B9R-G XC6237C15BNR-G XC6237C1619R-G XC6237C161NR-G XC6237C16B9R-G XC6237C16BNR-G XC6237C1719R-G XC6237C171NR-G XC6237C17B9R-G XC6237C17BNR-G XC6237C1819R-G XC6237C181NR-G XC6237C18B9R-G XC6237C18BNR-G XC6237C1919R-G XC6237C191NR-G XC6237C19B9R-G XC6237C19BNR-G XC6237C2019R-G XC6237C201NR-G XC6237C20B9R-G XC6237C20BNR-G XC6237C2119R-G XC6237C211NR-G XC6237C21B9R-G XC6237C21BNR-G XC6237C2219R-G XC6237C221NR-G XC6237C22B9R-G XC6237C22BNR-G XC6237C2319R-G XC6237C231NR-G XC6237C23B9R-G XC6237C23BNR-G XC6237C2419R-G XC6237C241NR-G XC6237C24B9R-G XC6237C24BNR-G XC6237C2519R-G XC6237C251NR-G XC6237C25B9R-G XC6237C25BNR-G XC6237C2619R-G XC6237C261NR-G XC6237C26B9R-G XC6237C26BNR-G XC6237C2719R-G XC6237C271NR-G XC6237C27B9R-G XC6237C27BNR-G XC6237C2819R-G XC6237C281NR-G XC6237C28B9R-G XC6237C28BNR-G XC6237C2919R-G XC6237C291NR-G XC6237C29B9R-G XC6237C29BNR-G XC6237C3019R-G XC6237C301NR-G XC6237C30B9R-G XC6237C30BNR-G XC6237C3119R-G XC6237C311NR-G XC6237C31B9R-G XC6237C31BNR-G XC6237C3219R-G XC6237C321NR-G XC6237C32B9R-G XC6237C32BNR-G XC6237C3319R-G XC6237C331NR-G XC6237C33B9R-G XC6237C33BNR-G XC6237C3419R-G XC6237C341NR-G XC6237C34B9R-G XC6237C34BNR-G XC6237C3519R-G XC6237C351NR-G XC6237C35B9R-G XC6237C35BNR-G XC6237C3619R-G XC6237C361NR-G XC6237C36B9R-G XC6237C36BNR-G XC6237C3719R-G XC6237C371NR-G XC6237C37B9R-G XC6237C37BNR-G XC6237C3819R-G XC6237C381NR-G XC6237C38B9R-G XC6237C38BNR-G XC6237C3919R-G XC6237C391NR-G XC6237C39B9R-G XC6237C39BNR-G XC6237C4019R-G XC6237C401NR-G XC6237C40B9R-G XC6237C40BNR-G XC6237C4119R-G XC6237C411NR-G XC6237C41B9R-G XC6237C41BNR-G XC6237C4219R-G XC6237C421NR-G XC6237C42B9R-G XC6237C42BNR-G XC6237C4319R-G XC6237C431NR-G XC6237C43B9R-G XC6237C43BNR-G XC6237C4419R-G XC6237C441NR-G XC6237C44B9R-G XC6237C44BNR-G XC6237C4519R-G XC6237C451NR-G XC6237C45B9R-G XC6237C45BNR-G XC6237C4619R-G XC6237C461NR-G XC6237C46B9R-G XC6237C46BNR-G XC6237C4719R-G XC6237C471NR-G XC6237C47B9R-G XC6237C47BNR-G XC6237C4819R-G XC6237C481NR-G XC6237C48B9R-G XC6237C48BNR-G XC6237C4919R-G XC6237C491NR-G XC6237C49B9R-G XC6237C49BNR-G XC6237C5019R-G XC6237C501NR-G XC6237C50B9R-G XC6237C50BNR-G
文件文字版本
XC6237 Series

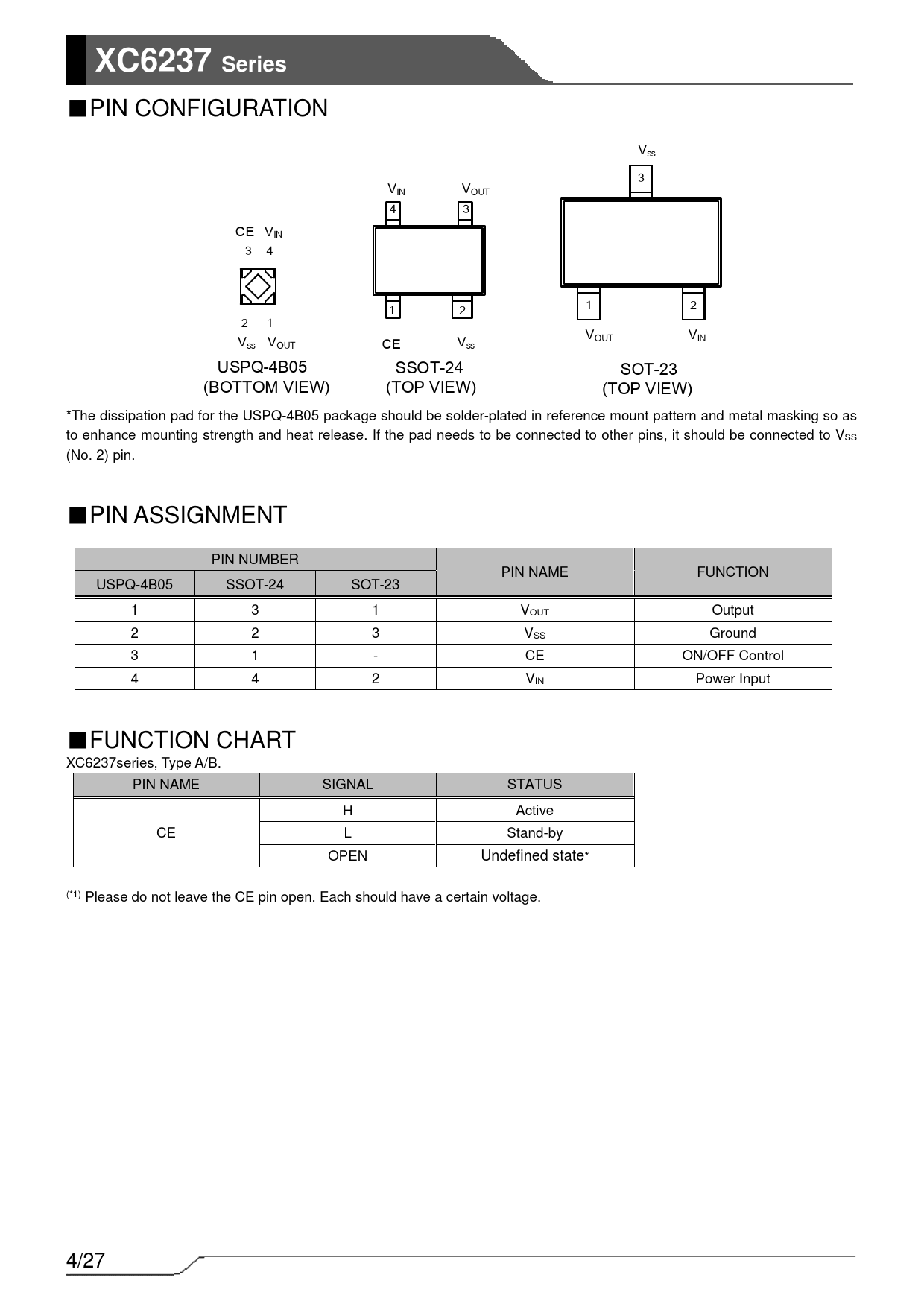

■PIN CONFIGURATION Vss 3 VIN VOUT 4 3 CE VIN 3 4 1 2 1 2 2 1 VOUT VIN Vss VOUT CE Vss USPQ-4B05 SSOT-24 SOT-23 (BOTTOM VIEW) (TOP VIEW) (TOP VIEW) *The dissipation pad for the USPQ-4B05 package should be solder-plated in reference mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to VSS (No. 2) pin. ■PIN ASSIGNMENT PIN NUMBER PIN NAME FUNCTION USPQ-4B05 SSOT-24 SOT-23 1 3 1 VOUT Output 2 2 3 VSS Ground 3 1 - CE ON/OFF Control 4 4 2 VIN Power Input ■FUNCTION CHART XC6237series, Type A/B. PIN NAME SIGNAL STATUS H Active CE L Stand-by OPEN Undefined state* (*1) Please do not leave the CE pin open. Each should have a certain voltage. 4/27 Document Outline XC6237 (2) XC6237_ETR03100-001 XC6237 XC6237_ETR03100-001
