Datasheet HMC625BLP5E (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | 0.5 dB LSB GaAs MMIC 6-Bit Digital Variable Gain Amplifier, DC - 5 GHz |
| 页数 / 页 | 9 / 6 — HMC625BLP5E. 0.5 dB LSB GaAs MMIC 6-BIT DIGITAL. VARIABLE GAIN AMPLIFIER, … |
| 文件格式/大小 | PDF / 692 Kb |
| 文件语言 | 英语 |
HMC625BLP5E. 0.5 dB LSB GaAs MMIC 6-BIT DIGITAL. VARIABLE GAIN AMPLIFIER, DC - 5 GHz. Outline Drawing. Package Information
该数据表的模型线
文件文字版本
HMC625BLP5E
v02.0616

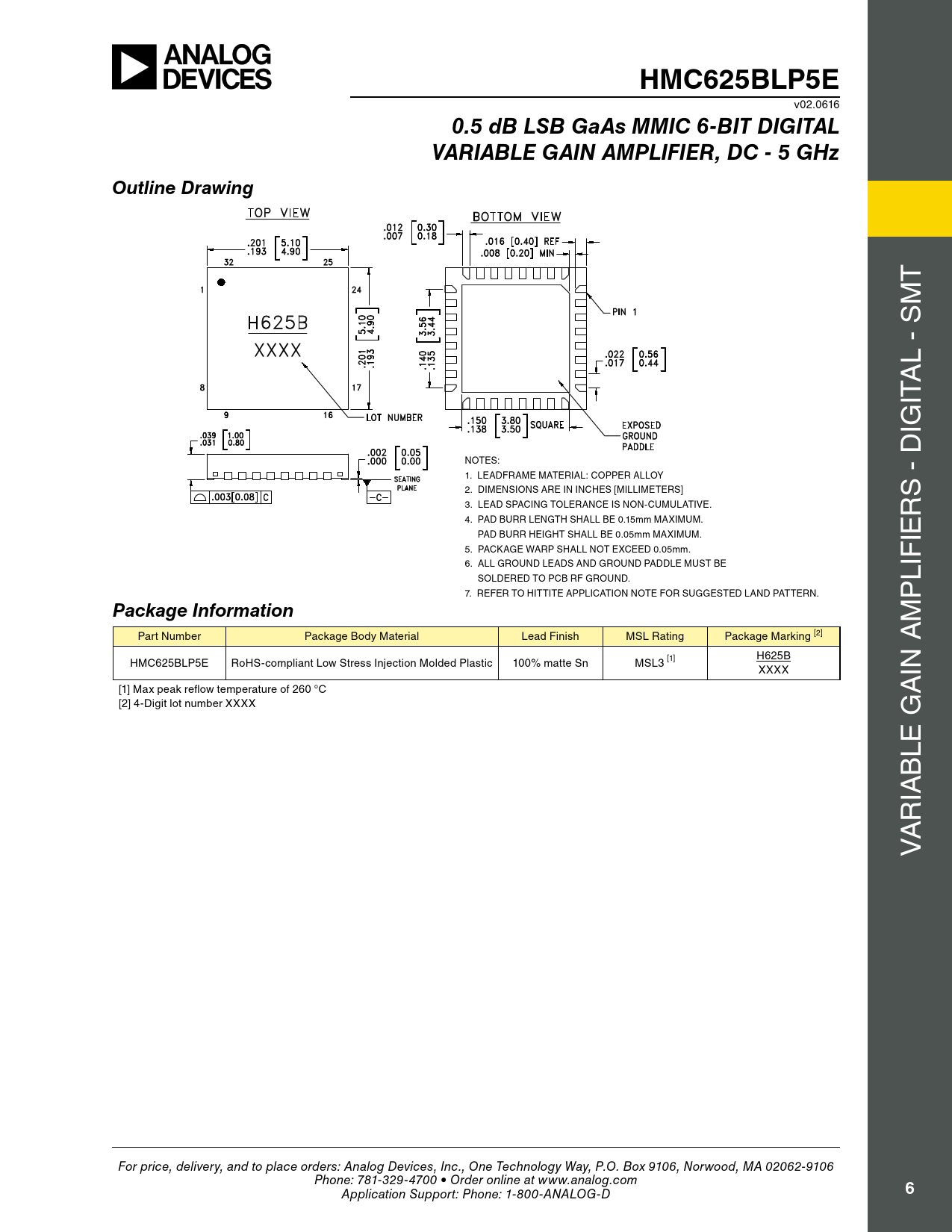

0.5 dB LSB GaAs MMIC 6-BIT DIGITAL VARIABLE GAIN AMPLIFIER, DC - 5 GHz Outline Drawing
T M L - S ITA IG NOTES: 1. LEADFRAME MATERIAL: COPPER ALLOY 2. DIMENSIONS ARE IN INCHES [MILLIMETERS] S - D 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE. 4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM. R PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM. IE 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND. LIF 7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED LAND PATTERN. P
Package Information
M Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC625BLP5E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [1] H625B XXXX IN A [1] Max peak reflow temperature of 260 °C A [2] 4-Digit lot number XXXX LE G B IA R A V For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
