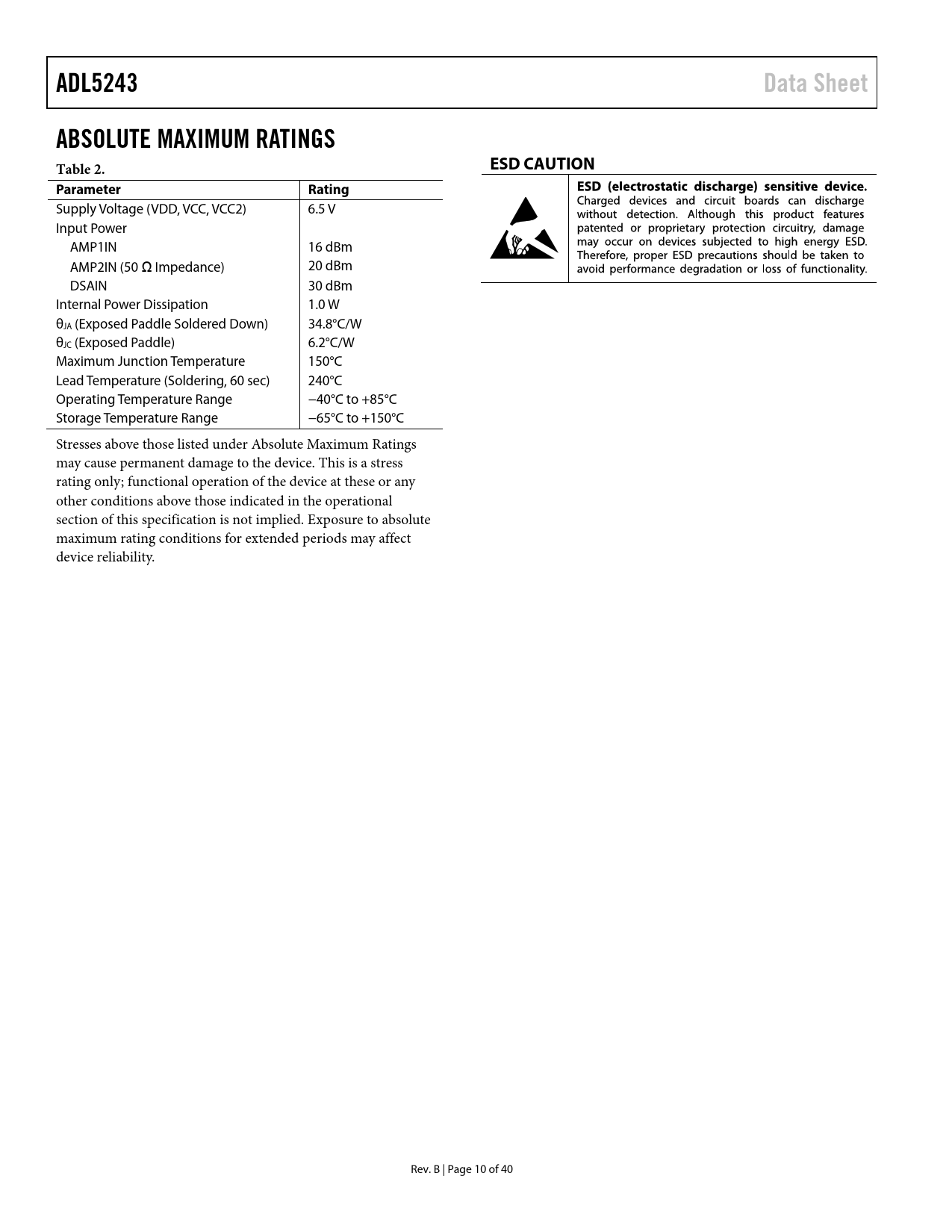

ADL5243 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION Parameter Rating
Supply Voltage (VDD, VCC, VCC2) 6.5 V Input Power AMP1IN 16 dBm AMP2IN (50 Ω Impedance) 20 dBm DSAIN 30 dBm Internal Power Dissipation 1.0 W θJA (Exposed Paddle Soldered Down) 34.8°C/W θJC (Exposed Paddle) 6.2°C/W Maximum Junction Temperature 150°C Lead Temperature (Soldering, 60 sec) 240°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 10 of 40 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier 1 Power Supply Amplifier 1 RF Input Interface Amplifier 1 RF Output Interface Amplifier 2 Power Supply Amplifier 2 RF Input Interface Amplifier 2 RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence ADL5243 Amplifier 2 Matching ADL5243 Loop Performance Proper Driving Level for the Optimum ACLR Thermal Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
