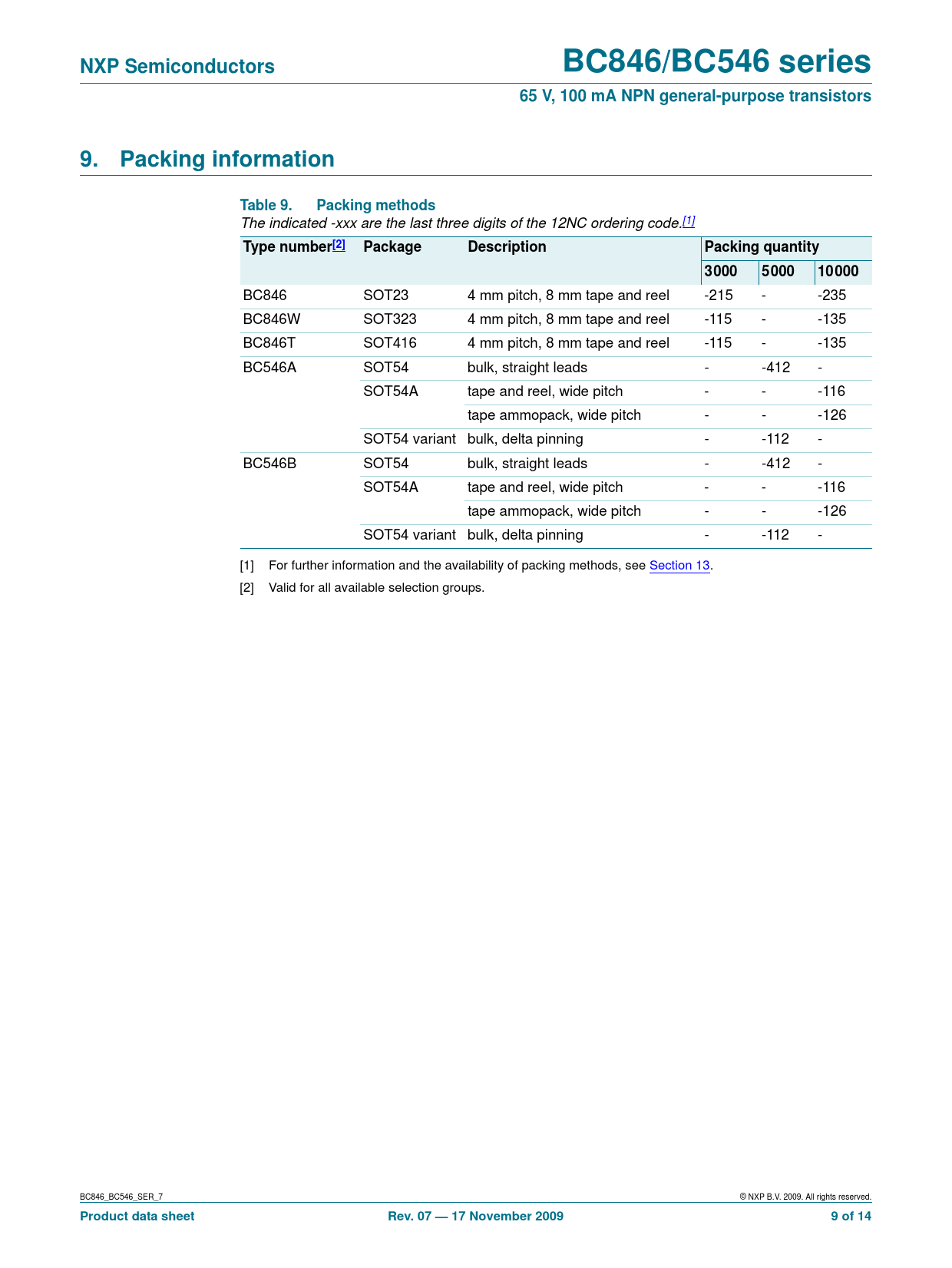

NXP Semiconductors BC846/BC546 series 65 V, 100 mA NPN general-purpose transistors 9. Packing information Table 9. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.[1]
Type number[2] Package Description Packing quantity 3000 5000 10000
BC846 SOT23 4 mm pitch, 8 mm tape and reel -215 - -235 BC846W SOT323 4 mm pitch, 8 mm tape and reel -115 - -135 BC846T SOT416 4 mm pitch, 8 mm tape and reel -115 - -135 BC546A SOT54 bulk, straight leads - -412 - SOT54A tape and reel, wide pitch - - -116 tape ammopack, wide pitch - - -126 SOT54 variant bulk, delta pinning - -112 - BC546B SOT54 bulk, straight leads - -412 - SOT54A tape and reel, wide pitch - - -116 tape ammopack, wide pitch - - -126 SOT54 variant bulk, delta pinning - -112 - [1] For further information and the availability of packing methods, see Section 13. [2] Valid for all available selection groups. BC846_BC546_SER_7 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 07 — 17 November 2009 9 of 14
