NXP Semiconductors. BC846/BC546 series. 65 V, 100 mA NPN general-purpose transistors. 10. Soldering
该数据表的模型线
BC546
文件文字版本

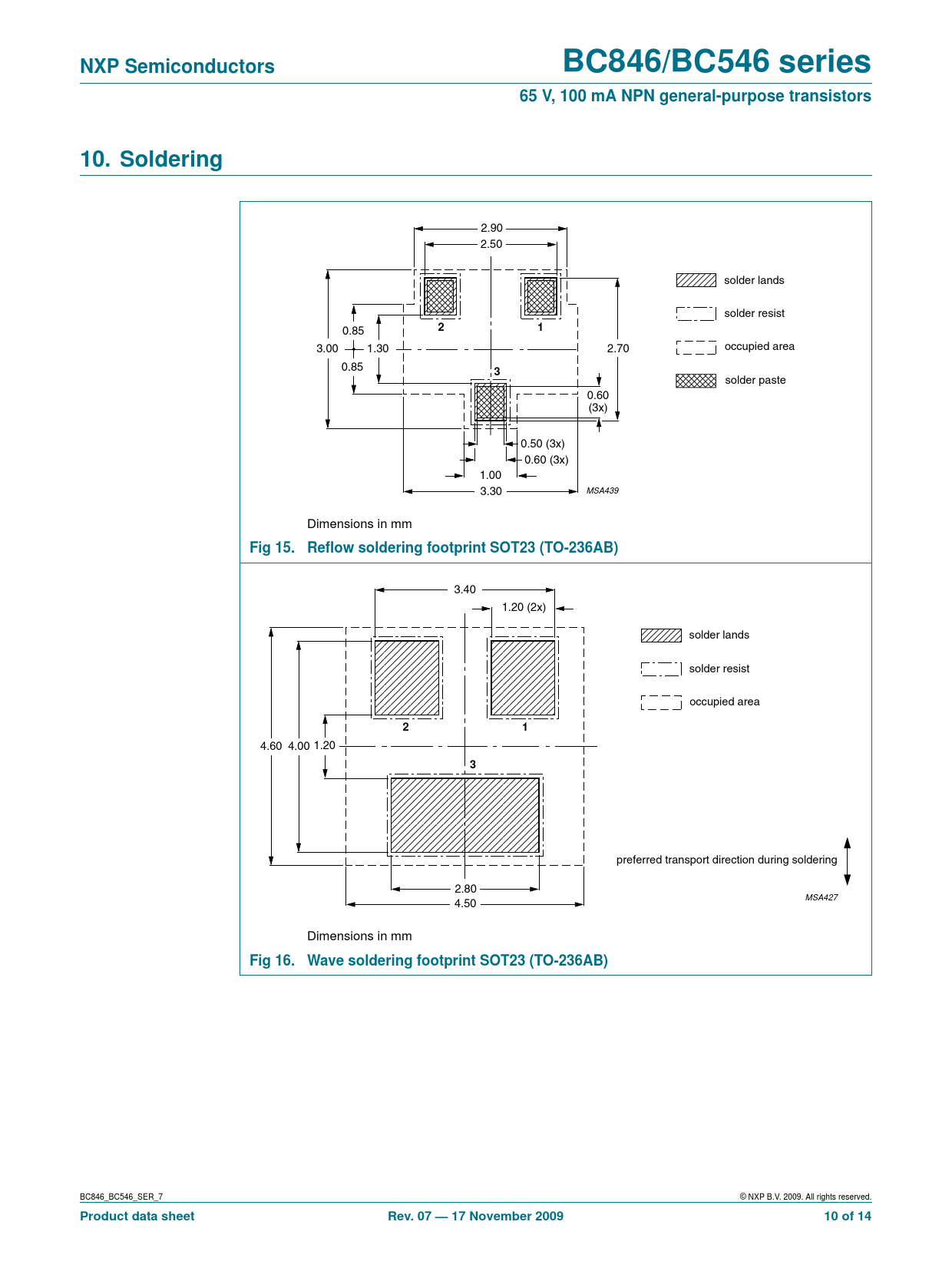

NXP Semiconductors BC846/BC546 series 65 V, 100 mA NPN general-purpose transistors 10. Soldering
2.90 2.50 solder lands solder resist
2 1
0.85 3.00 1.30 2.70 occupied area 0.85
3
solder paste 0.60 (3x) 0.50 (3x) 0.60 (3x) 1.00 3.30 MSA439 Dimensions in mm
Fig 15. Reflow soldering footprint SOT23 (TO-236AB)
3.40 1.20 (2x) solder lands solder resist occupied area
2 1
4.60 4.00 1.20
3
preferred transport direction during soldering 2.80 MSA427 4.50 Dimensions in mm
Fig 16. Wave soldering footprint SOT23 (TO-236AB)
BC846_BC546_SER_7 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 07 — 17 November 2009 10 of 14
