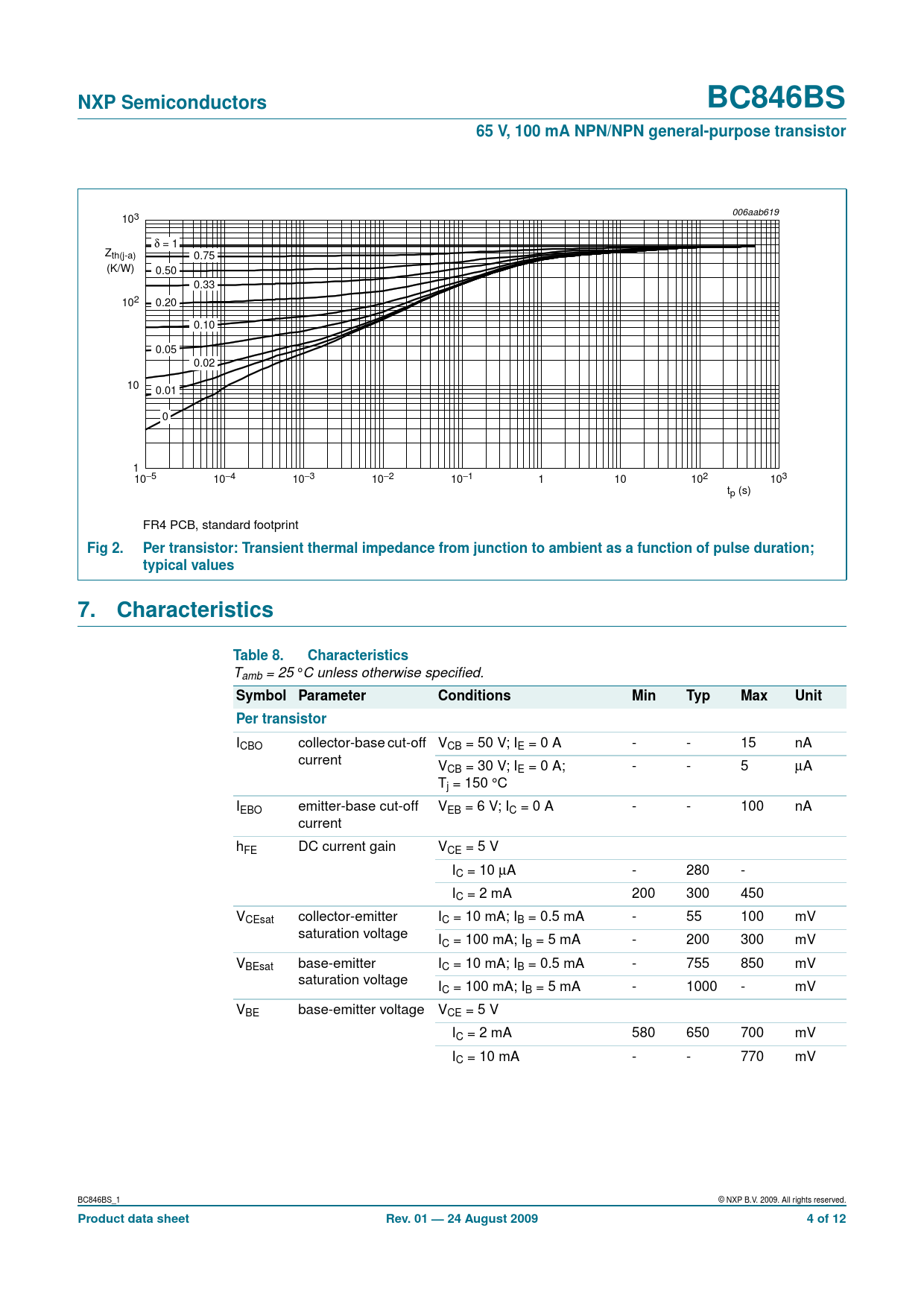

NXP Semiconductors. BC846BS. 65 V, 100 mA NPN/NPN general-purpose transistor. Fig 2
该数据表的模型线
文件文字版本
NXP Semiconductors BC846BS 65 V, 100 mA NPN/NPN general-purpose transistor
006aab619 103 δ = 1 Zth(j-a) 0.75 (K/W) 0.50 0.33 102 0.20 0.10 0.05 0.02 10 0.01 0 1 10−5 10−3 10−2 10−4 10 102 10−1 103 1 tp (s) FR4 PCB, standard footprint
Fig 2. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration; typical values 7. Characteristics Table 8. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Per transistor
ICBO collector-base cut-off VCB = 50 V; IE = 0 A - - 15 nA current VCB = 30 V; IE = 0 A; - - 5 µA Tj = 150 °C IEBO emitter-base cut-off VEB = 6 V; IC = 0 A - - 100 nA current hFE DC current gain VCE = 5 V IC = 10 µA - 280 - IC = 2 mA 200 300 450 VCEsat collector-emitter IC = 10 mA; IB = 0.5 mA - 55 100 mV saturation voltage IC = 100 mA; IB = 5 mA - 200 300 mV VBEsat base-emitter IC = 10 mA; IB = 0.5 mA - 755 850 mV saturation voltage IC = 100 mA; IB = 5 mA - 1000 - mV VBE base-emitter voltage VCE = 5 V IC = 2 mA 580 650 700 mV IC = 10 mA - - 770 mV BC846BS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 24 August 2009 4 of 12
