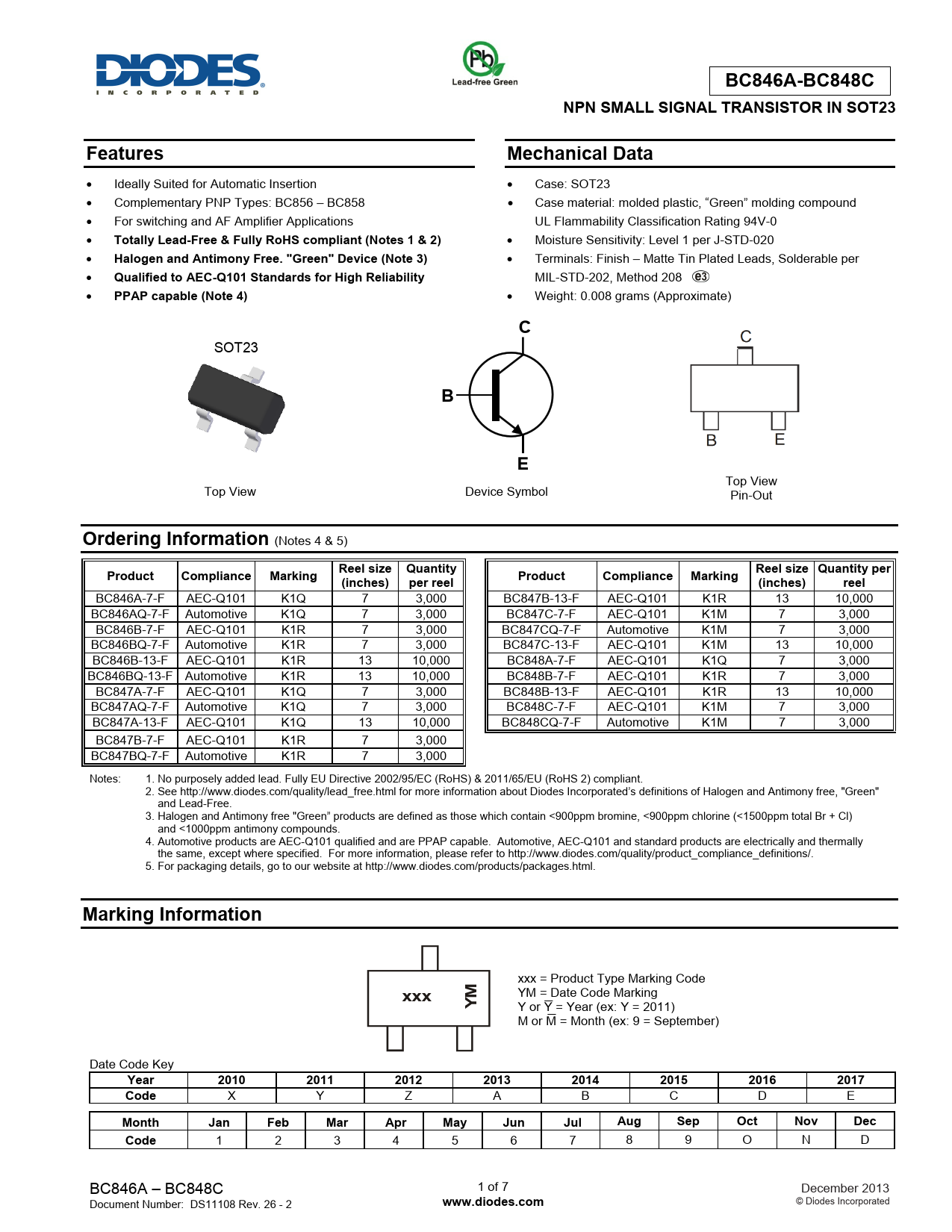

BC846A-BC848C. NPN SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical Data
该数据表的模型线
文件文字版本
BC846A-BC848C NPN SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data
Ideally Suited for Automatic Insertion Case: SOT23 Complementary PNP Types: BC856 – BC858 Case material: molded plastic, “Green” molding compound For switching and AF Amplifier Applications UL Flammability Classification Rating 94V-0
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. "Green" Device (Note 3)
Terminals: Finish – Matte Tin Plated Leads, Solderable per
Qualified to AEC-Q101 Standards for High Reliability
MIL-STD-202, Method 208
PPAP capable (Note 4)
Weight: 0.008 grams (Approximate)
C
SOT23
B E
Top View Top View Device Symbol Pin-Out
Ordering Information
(Notes 4 & 5)
Reel size Quantity Reel size Quantity per Product Compliance Marking Product Compliance Marking (inches) per reel (inches) reel
BC846A-7-F AEC-Q101 K1Q 7 3,000 BC847B-13-F AEC-Q101 K1R 13 10,000 BC846AQ-7-F Automotive K1Q 7 3,000 BC847C-7-F AEC-Q101 K1M 7 3,000 BC846B-7-F AEC-Q101 K1R 7 3,000 BC847CQ-7-F Automotive K1M 7 3,000 BC846BQ-7-F Automotive K1R 7 3,000 BC847C-13-F AEC-Q101 K1M 13 10,000 BC846B-13-F AEC-Q101 K1R 13 10,000 BC848A-7-F AEC-Q101 K1Q 7 3,000 BC846BQ-13-F Automotive K1R 13 10,000 BC848B-7-F AEC-Q101 K1R 7 3,000 BC847A-7-F AEC-Q101 K1Q 7 3,000 BC848B-13-F AEC-Q101 K1R 13 10,000 BC847AQ-7-F Automotive K1Q 7 3,000 BC848C-7-F AEC-Q101 K1M 7 3,000 BC847A-13-F AEC-Q101 K1Q 13 10,000 BC848CQ-7-F Automotive K1M 7 3,000 BC847B-7-F AEC-Q101 K1R 7 3,000 BC847BQ-7-F Automotive K1R 7 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code YM = Date Code Marking
xxx YM
Y or Y = Year (ex: Y = 2011) M or M = Month (ex: 9 = September) Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017 Code
X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BC846A – BC848C 1 of 7 December 2013 Document Number: DS11108 Rev. 26 - 2
