link to page 2 LTC2050/LTC2050HV

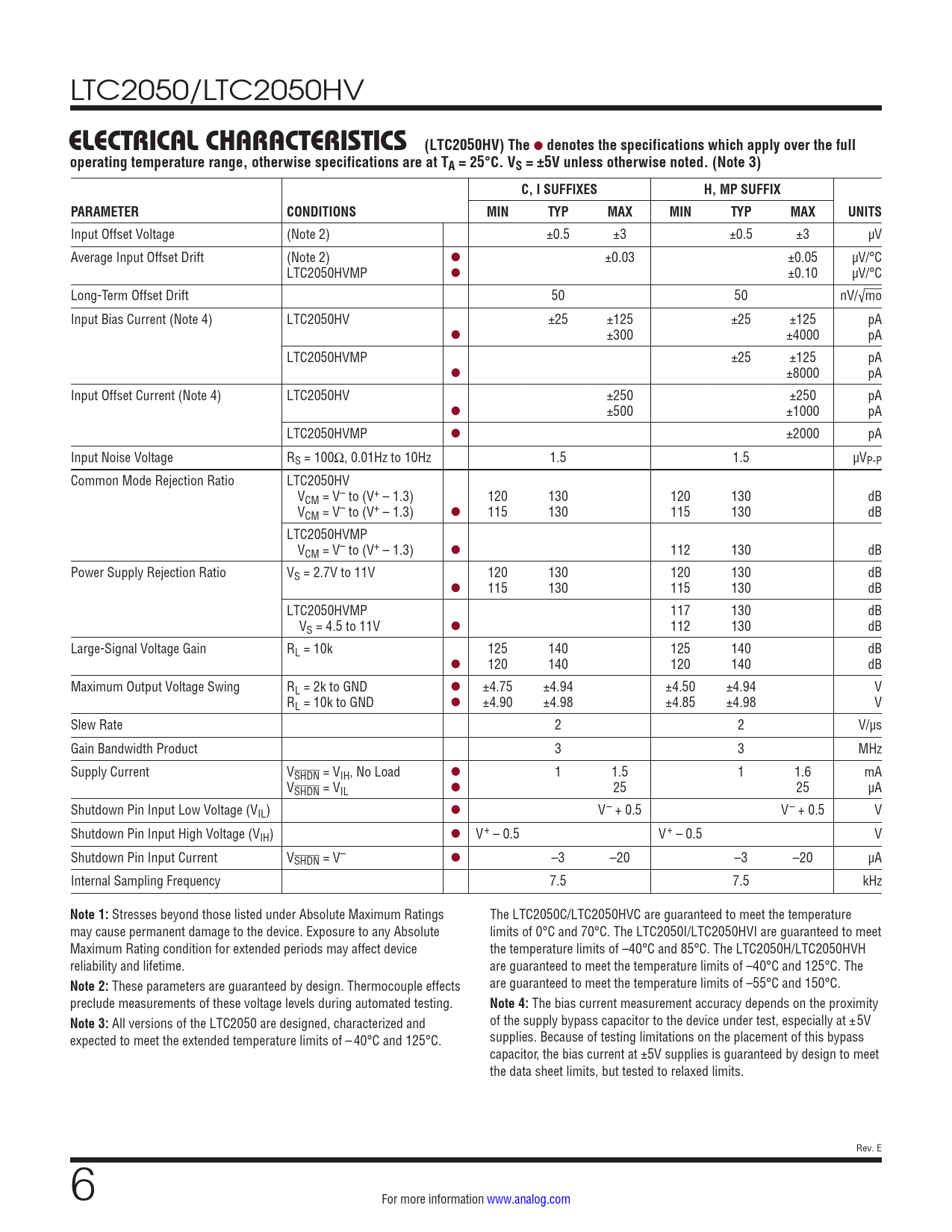

ELECTRICAL CHARACTERISTICS (LTC2050HV) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±5V unless otherwise noted. (Note 3) C, I SUFFIXES H, MP SUFFIX PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage (Note 2) ±0.5 ±3 ±0.5 ±3 µV Average Input Offset Drift (Note 2) l ±0.03 ±0.05 µV/°C LTC2050HVMP l ±0.10 µV/°C Long-Term Offset Drift 50 50 nV/√mo Input Bias Current (Note 4) LTC2050HV ±25 ±125 ±25 ±125 pA l ±300 ±4000 pA LTC2050HVMP ±25 ±125 pA l ±8000 pA Input Offset Current (Note 4) LTC2050HV ±250 ±250 pA l ±500 ±1000 pA LTC2050HVMP l ±2000 pA Input Noise Voltage RS = 100Ω, 0.01Hz to 10Hz 1.5 1.5 µVP-P Common Mode Rejection Ratio LTC2050HV VCM = V– to (V+ – 1.3) 120 130 120 130 dB VCM = V– to (V+ – 1.3) l 115 130 115 130 dB LTC2050HVMP VCM = V– to (V+ – 1.3) l 112 130 dB Power Supply Rejection Ratio VS = 2.7V to 11V 120 130 120 130 dB l 115 130 115 130 dB LTC2050HVMP 117 130 dB VS = 4.5 to 11V l 112 130 dB Large-Signal Voltage Gain RL = 10k 125 140 125 140 dB l 120 140 120 140 dB Maximum Output Voltage Swing RL = 2k to GND l ±4.75 ±4.94 ±4.50 ±4.94 V RL = 10k to GND l ±4.90 ±4.98 ±4.85 ±4.98 V Slew Rate 2 2 V/µs Gain Bandwidth Product 3 3 MHz Supply Current VSHDN = VIH, No Load l 1 1.5 1 1.6 mA VSHDN = VIL l 25 25 µA Shutdown Pin Input Low Voltage (VIL) l V– + 0.5 V– + 0.5 V Shutdown Pin Input High Voltage (VIH) l V+ – 0.5 V+ – 0.5 V Shutdown Pin Input Current VSHDN = V– l –3 –20 –3 –20 µA Internal Sampling Frequency 7.5 7.5 kHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings The LTC2050C/LTC2050HVC are guaranteed to meet the temperature may cause permanent damage to the device. Exposure to any Absolute limits of 0°C and 70°C. The LTC2050I/LTC2050HVI are guaranteed to meet Maximum Rating condition for extended periods may affect device the temperature limits of –40°C and 85°C. The LTC2050H/LTC2050HVH reliability and lifetime. are guaranteed to meet the temperature limits of –40°C and 125°C. The
Note 2:
These parameters are guaranteed by design. Thermocouple effects are guaranteed to meet the temperature limits of –55°C and 150°C. preclude measurements of these voltage levels during automated testing.
Note 4:
The bias current measurement accuracy depends on the proximity
Note 3:
All versions of the LTC2050 are designed, characterized and of the supply bypass capacitor to the device under test, especially at ±5V expected to meet the extended temperature limits of –40°C and 125°C. supplies. Because of testing limitations on the placement of this bypass capacitor, the bias current at ±5V supplies is guaranteed by design to meet the data sheet limits, but tested to relaxed limits. Rev. E 6 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
