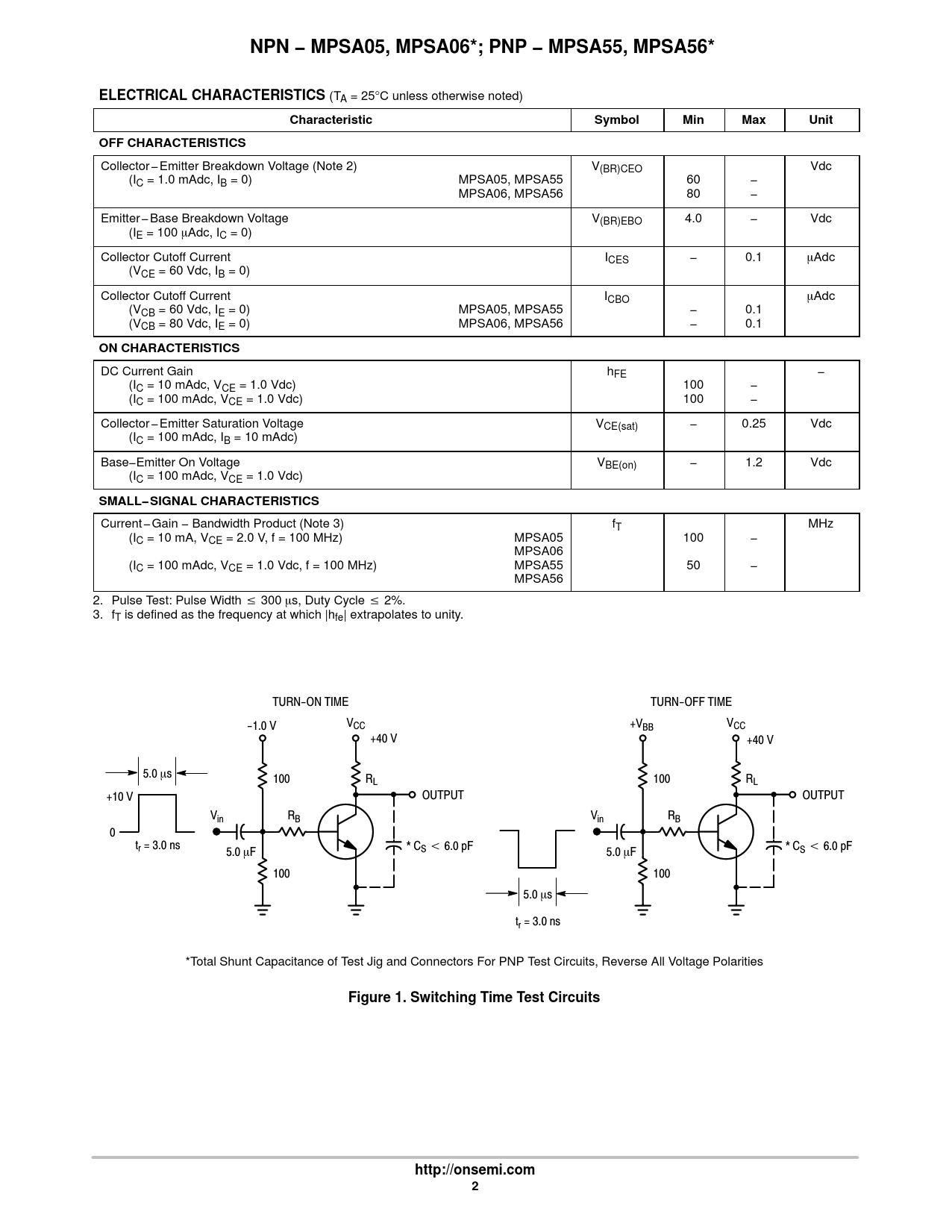

NPN − MPSA05, MPSA06*; PNP − MPSA55, MPSA56* ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector − Emitter Breakdown Voltage (Note 2) V(BR)CEO Vdc (IC = 1.0 mAdc, IB = 0) MPSA05, MPSA55 60 − MPSA06, MPSA56 80 − Emitter − Base Breakdown Voltage V(BR)EBO 4.0 − Vdc (IE = 100 mAdc, IC = 0) Collector Cutoff Current ICES − 0.1 mAdc (VCE = 60 Vdc, IB = 0) Collector Cutoff Current ICBO mAdc (VCB = 60 Vdc, IE = 0) MPSA05, MPSA55 − 0.1 (VCB = 80 Vdc, IE = 0) MPSA06, MPSA56 − 0.1
ON CHARACTERISTICS
DC Current Gain hFE − (IC = 10 mAdc, VCE = 1.0 Vdc) 100 − (IC = 100 mAdc, VCE = 1.0 Vdc) 100 − Collector − Emitter Saturation Voltage VCE(sat) − 0.25 Vdc (IC = 100 mAdc, IB = 10 mAdc) Base−Emitter On Voltage VBE(on) − 1.2 Vdc (IC = 100 mAdc, VCE = 1.0 Vdc)
SMALL−SIGNAL CHARACTERISTICS
Current − Gain − Bandwidth Product (Note 3) fT MHz (IC = 10 mA, VCE = 2.0 V, f = 100 MHz) MPSA05 100 − MPSA06 (IC = 100 mAdc, VCE = 1.0 Vdc, f = 100 MHz) MPSA55 50 − MPSA56 2. Pulse Test: Pulse Width v 300 ms, Duty Cycle v 2%. 3. fT is defined as the frequency at which |hfe| extrapolates to unity. TURN−ON TIME TURN−OFF TIME −1.0 V VCC +VBB VCC +40 V +40 V 5.0 ms 100 RL 100 RL +10 V OUTPUT OUTPUT Vin RB Vin RB 0 tr = 3.0 ns * CS t 6.0 pF 5.0 mF * CS t 6.0 pF 5.0 mF 100 100 5.0 ms tr = 3.0 ns *Total Shunt Capacitance of Test Jig and Connectors For PNP Test Circuits, Reverse All Voltage Polarities
Figure 1. Switching Time Test Circuits http://onsemi.com 2
