Datasheet IHDM-1008BC-30 (Vishay)
| 制造商 | Vishay |
| 描述 | High Current, Through-Hole Inductor Edge-Wound Series |
| 页数 / 页 | 4 / 1 — IHDM-1008BC-30. High Current, Through-Hole Inductor. Edge-Wound Series. … |
| 文件格式/大小 | PDF / 96 Kb |
| 文件语言 | 英语 |
IHDM-1008BC-30. High Current, Through-Hole Inductor. Edge-Wound Series. FEATURES. APPLICATIONS
该数据表的模型线
文件文字版本

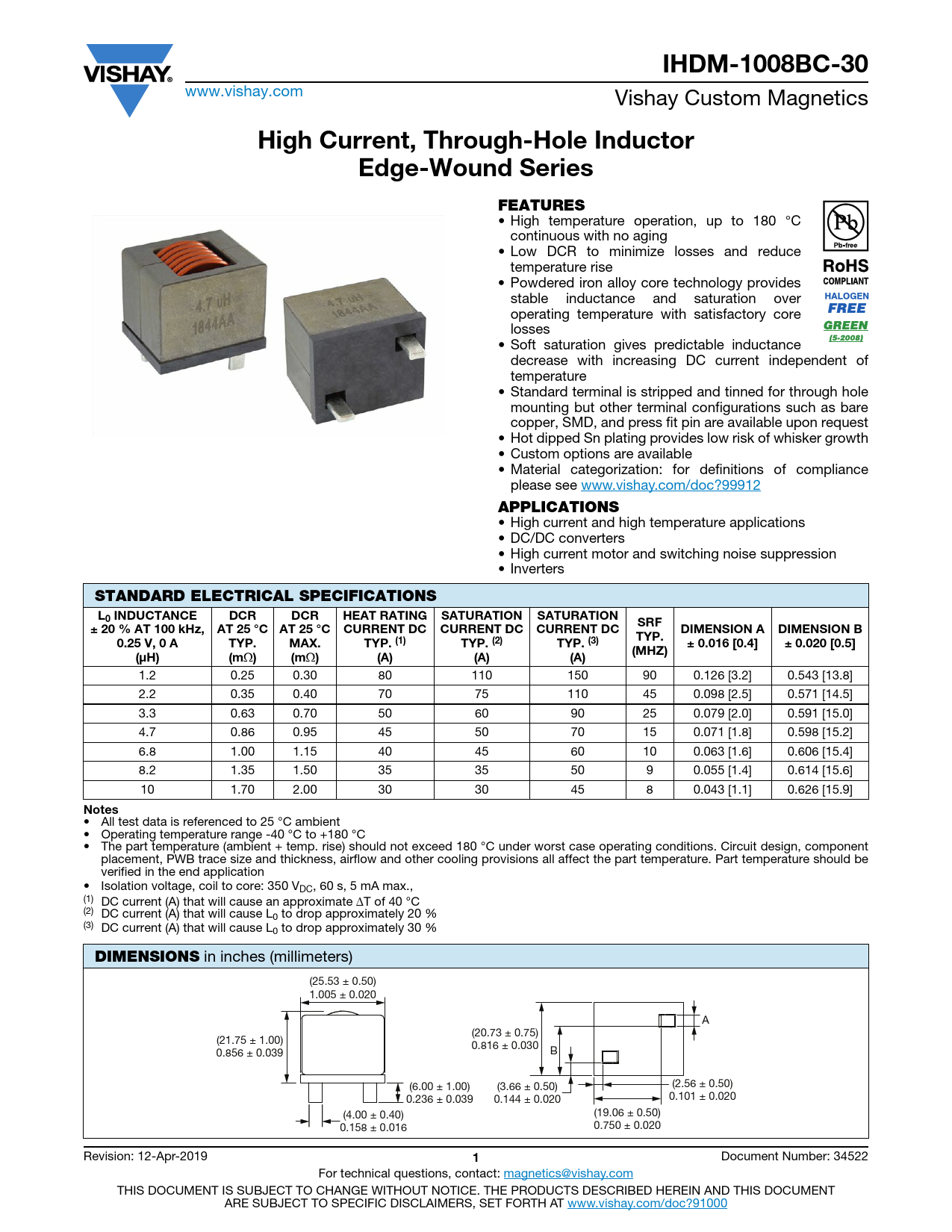

IHDM-1008BC-30
www.vishay.com Vishay Custom Magnetics
High Current, Through-Hole Inductor Edge-Wound Series FEATURES
• High temperature operation, up to 180 °C continuous with no aging • Low DCR to minimize losses and reduce temperature rise • Powdered iron alloy core technology provides stable inductance and saturation over operating temperature with satisfactory core losses • Soft saturation gives predictable inductance decrease with increasing DC current independent of temperature • Standard terminal is stripped and tinned for through hole mounting but other terminal configurations such as bare copper, SMD, and press fit pin are available upon request • Hot dipped Sn plating provides low risk of whisker growth • Custom options are available • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• High current and high temperature applications • DC/DC converters • High current motor and switching noise suppression • Inverters
STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR DCR HEAT RATING SATURATION SATURATION SRF ± 20 % AT 100 kHz, AT 25 °C AT 25 °C CURRENT DC CURRENT DC CURRENT DC DIMENSION A DIMENSION B TYP. 0.25 V, 0 A TYP. MAX. TYP. (1) TYP. (2) TYP. (3) ± 0.016 [0.4] ± 0.020 [0.5] (MHZ) (μH) (m ) (m ) (A) (A) (A)
1.2 0.25 0.30 80 110 150 90 0.126 [3.2] 0.543 [13.8] 2.2 0.35 0.40 70 75 110 45 0.098 [2.5] 0.571 [14.5] 3.3 0.63 0.70 50 60 90 25 0.079 [2.0] 0.591 [15.0] 4.7 0.86 0.95 45 50 70 15 0.071 [1.8] 0.598 [15.2] 6.8 1.00 1.15 40 45 60 10 0.063 [1.6] 0.606 [15.4] 8.2 1.35 1.50 35 35 50 9 0.055 [1.4] 0.614 [15.6] 10 1.70 2.00 30 30 45 8 0.043 [1.1] 0.626 [15.9]
Notes
• All test data is referenced to 25 °C ambient • Operating temperature range -40 °C to +180 °C • The part temperature (ambient + temp. rise) should not exceed 180 °C under worst case operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application • Isolation voltage, coil to core: 350 VDC, 60 s, 5 mA max., (1) DC current (A) that will cause an approximate T of 40 °C (2) DC current (A) that will cause L0 to drop approximately 20 % (3) DC current (A) that will cause L0 to drop approximately 30 %
DIMENSIONS
in inches (millimeters) (25.53 ± 0.50) 1.005 ± 0.020 A (20.73 ± 0.75) (21.75 ± 1.00) 0.816 ± 0.030 B 0.856 ± 0.039 (6.00 ± 1.00) (2.56 ± 0.50) (3.66 ± 0.50) 0.236 ± 0.039 0.101 ± 0.020 0.144 ± 0.020 (19.06 ± 0.50) (4.00 ± 0.40) 0.750 ± 0.020 0.158 ± 0.016 Revision: 12-Apr-2019
1
Document Number: 34522 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
