Datasheet IHDM-1008BC-30 (Vishay) - 2
| 制造商 | Vishay |
| 描述 | High Current, Through-Hole Inductor Edge-Wound Series |
| 页数 / 页 | 4 / 2 — IHDM-1008BC-30. DESCRIPTION. 1.2 μH. ± 20 %. GLOBAL PART NUMBER. … |
| 文件格式/大小 | PDF / 96 Kb |
| 文件语言 | 英语 |
IHDM-1008BC-30. DESCRIPTION. 1.2 μH. ± 20 %. GLOBAL PART NUMBER. PERFORMANCE GRAPHS. 2.2 μH. (μH). INDUCTAN. DC CURRENT (A). 3.3 μH. 4.7 μH
该数据表的模型线
文件文字版本

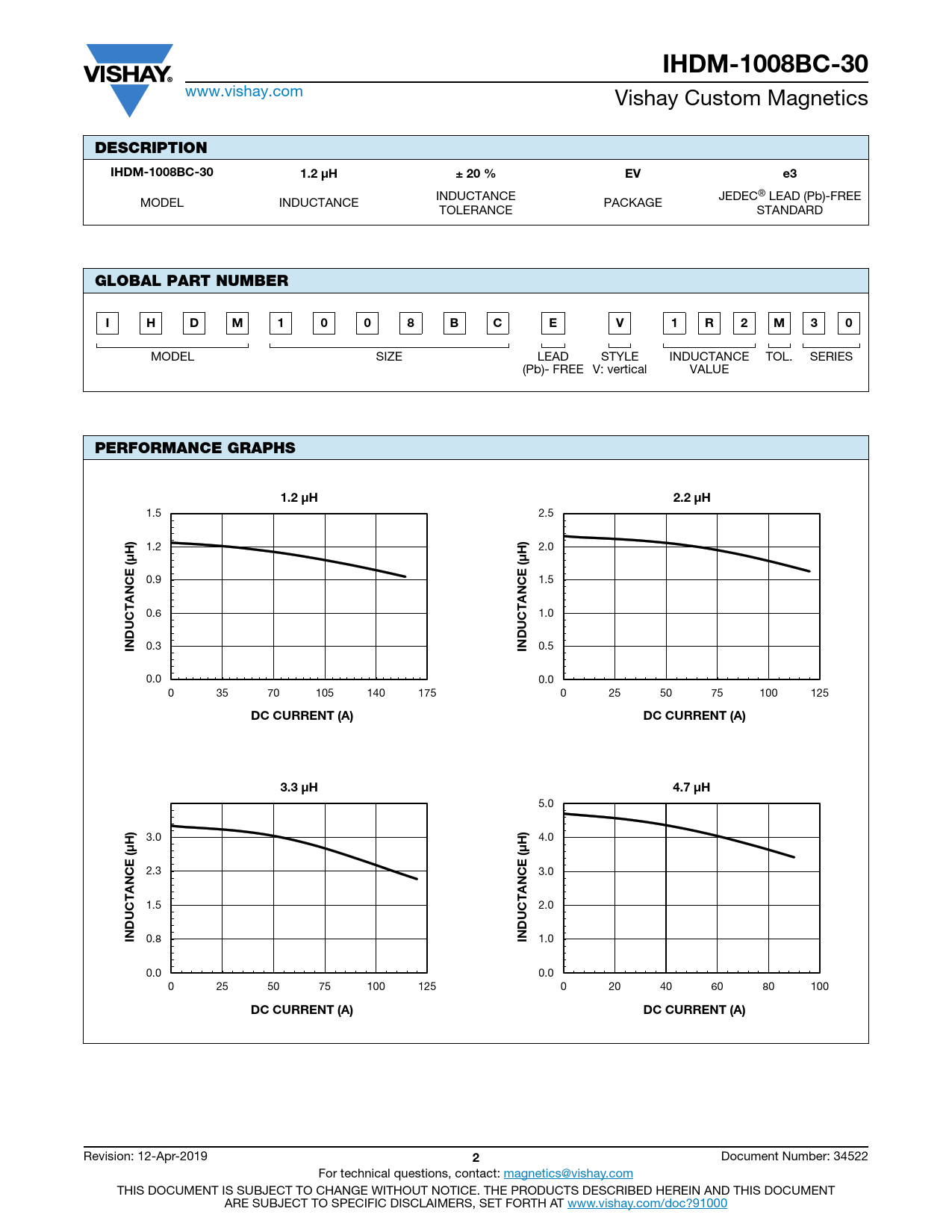

IHDM-1008BC-30
www.vishay.com Vishay Custom Magnetics
DESCRIPTION IHDM-1008BC-30 1.2 μH ± 20 % EV e3
INDUCTANCE JEDEC® LEAD (Pb)-FREE MODEL INDUCTANCE PACKAGE TOLERANCE STANDARD
GLOBAL PART NUMBER I H D M 1 0 0 8 B C E V 1 R 2 M 3 0
MODEL SIZE LEAD STYLE INDUCTANCE TOL. SERIES (Pb)- FREE V: vertical VALUE
PERFORMANCE GRAPHS 1.2 μH 2.2 μH
1.5 2.5 1.2 2.0
(μH) (μH)
0.9
CE CE
1.5 0.6 1.0 0.3
INDUCTAN
0.5
INDUCTAN
0.0 0.0 0 35 70 105 140 175 0 25 50 75 100 125
DC CURRENT (A) DC CURRENT (A) 3.3 μH 4.7 μH
5.0 3.0 4.0
(μH) (μH) CE
2.3
CE
3.0 1.5 2.0
INDUCTAN
0.8
INDUCTAN
1.0 0.0 0.0 0 25 50 75 100 125 0 20 40 60 80 100
DC CURRENT (A) DC CURRENT (A)
Revision: 12-Apr-2019
2
Document Number: 34522 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
