Datasheet TMD2635 (AustriaMicroSystems) - 3
| 制造商 | AustriaMicroSystems |
| 描述 | Miniature Proximity Sensor Module |
| 页数 / 页 | 47 / 3 — TMD2635 −. Pin Assignment. Figure 3: Pin Diagram of TMD2635 (Top View). … |
| 文件格式/大小 | PDF / 707 Kb |
| 文件语言 | 英语 |
TMD2635 −. Pin Assignment. Figure 3: Pin Diagram of TMD2635 (Top View). Figure 4: Pin Description. Pin Number. Pin Name
该数据表的模型线
文件文字版本
link to page 3 link to page 3 link to page 9
TMD2635 −
Pin Assignment Device pinout is described below.

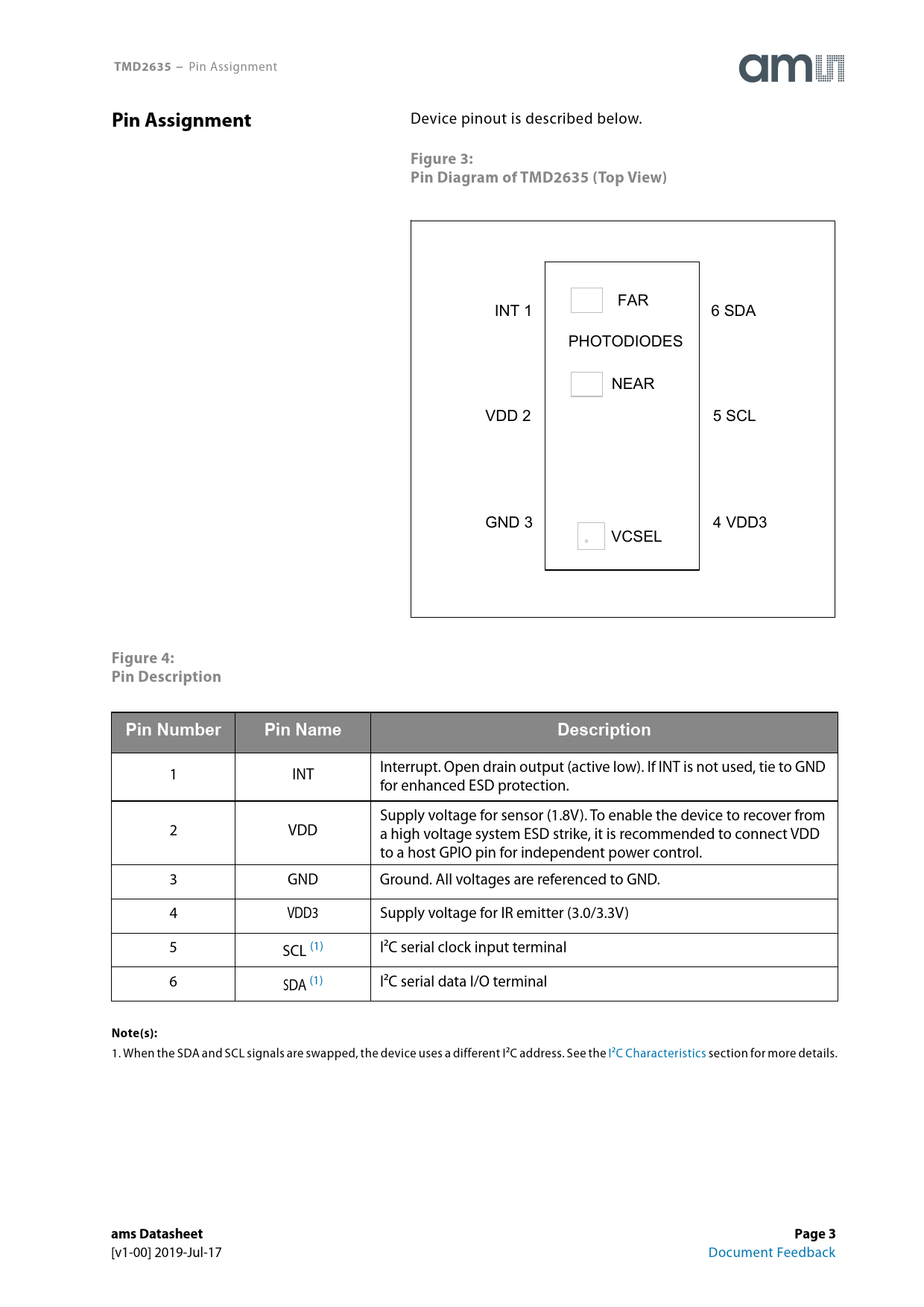

Pin Assignment Figure 3: Pin Diagram of TMD2635 (Top View)
)$5 ,17 6'$ 3+272',2'(6 1($5 9'' 6&/ *1' 9'' 9&6(/
Figure 4: Pin Description Pin Number Pin Name Description
1 INT Interrupt. Open drain output (active low). If INT is not used, tie to GND for enhanced ESD protection. Supply voltage for sensor (1.8V). To enable the device to recover from 2 VDD a high voltage system ESD strike, it is recommended to connect VDD to a host GPIO pin for independent power control. 3 GND Ground. All voltages are referenced to GND. 4 VDD3 Supply voltage for IR emitter (3.0/3.3V) 5 SCL (1) I²C serial clock input terminal 6 SDA (1) I²C serial data I/O terminal
Note(s):
1. When the SDA and SCL signals are swapped, the device uses a different I²C address. See the I²C Characteristics section for more details.
ams Datasheet Page 3
