TMD2635 −
Absolute Maximum R atings Stresses beyond those listed under Absolute Maximum Ratings
Absolute Maximum Ratings
may cause permanent damage to the device. These are stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated under Electrical Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

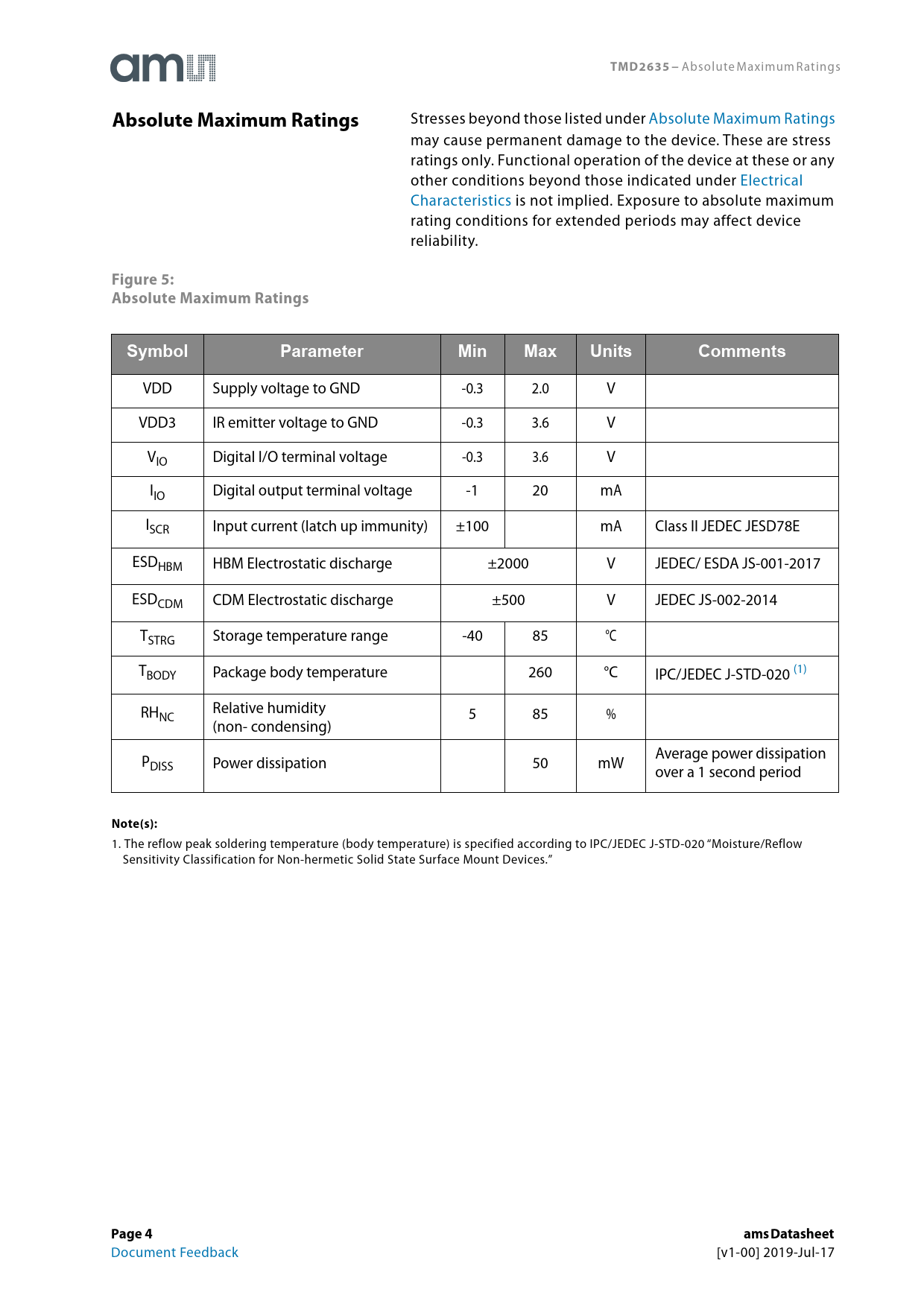

Figure 5: Absolute Maximum Ratings Symbol Parameter Min Max Units Comments
VDD Supply voltage to GND -0.3 2.0 V VDD3 IR emitter voltage to GND -0.3 3.6 V VIO Digital I/O terminal voltage -0.3 3.6 V IIO Digital output terminal voltage -1 20 mA ISCR Input current (latch up immunity) ±100 mA Class II JEDEC JESD78E ESDHBM HBM Electrostatic discharge ±2000 V JEDEC/ ESDA JS-001-2017 ESDCDM CDM Electrostatic discharge ±500 V JEDEC JS-002-2014 TSTRG Storage temperature range -40 85 °C TBODY Package body temperature 260 °C IPC/JEDEC J-STD-020 (1) RHNC Relative humidity 5 85 % (non- condensing) Average power dissipation PDISS Power dissipation 50 mW over a 1 second period
Note(s):
1. The reflow peak soldering temperature (body temperature) is specified according to IPC/JEDEC J-STD-020 “Moisture/Reflow Sensitivity Classification for Non-hermetic Solid State Surface Mount Devices.”
Page 4 ams Datasheet
