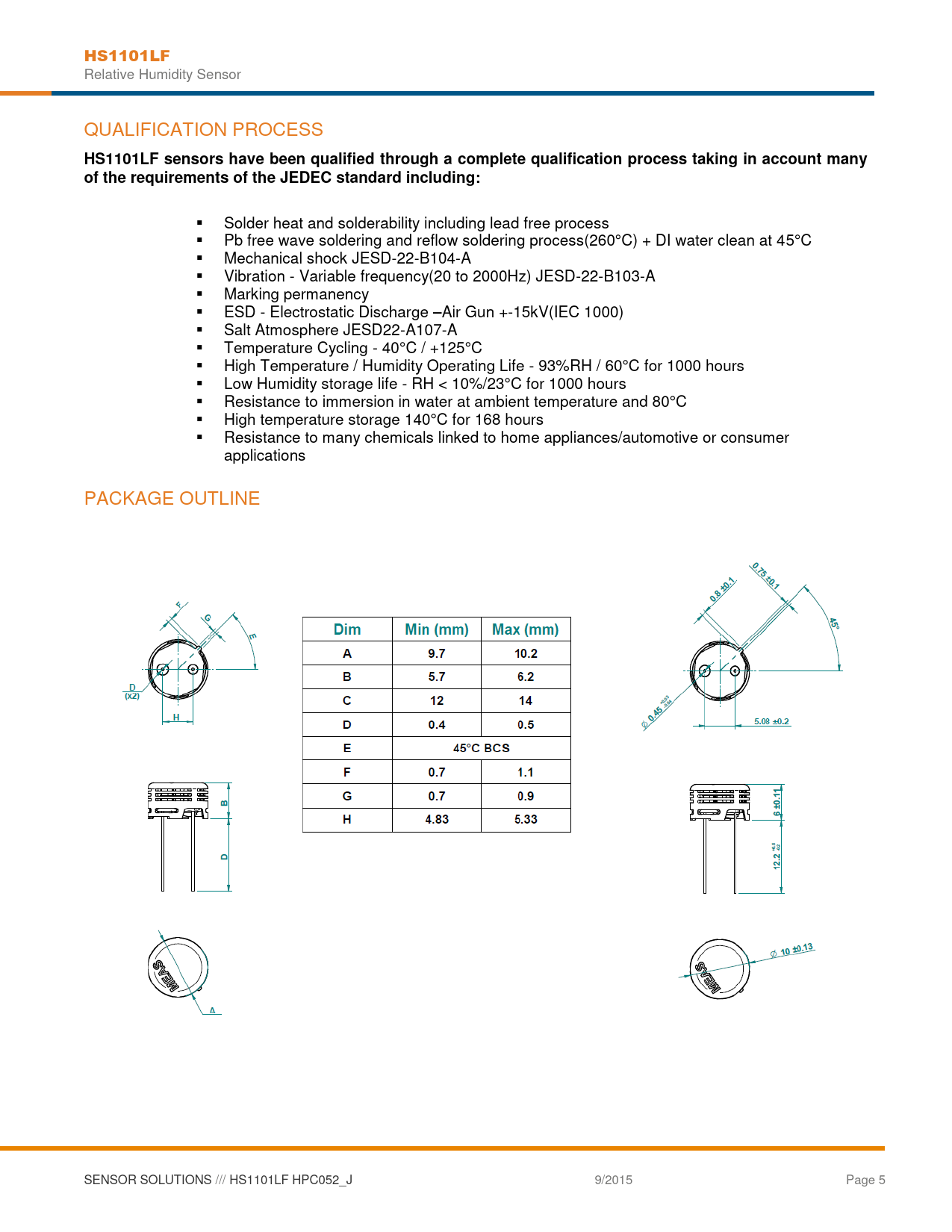

HS1101LF Relative Humidity Sensor QUALIFICATION PROCESS
HS1101LF sensors have been qualified through a complete qualification process taking in account many of the requirements of the JEDEC standard including:
 Solder heat and solderability including lead free process  Pb free wave soldering and reflow soldering process(260°C) + DI water clean at 45°C  Mechanical shock JESD-22-B104-A  Vibration - Variable frequency(20 to 2000Hz) JESD-22-B103-A  Marking permanency  ESD - Electrostatic Discharge –Air Gun +-15kV(IEC 1000)  Salt Atmosphere JESD22-A107-A  Temperature Cycling - 40°C / +125°C  High Temperature / Humidity Operating Life - 93%RH / 60°C for 1000 hours  Low Humidity storage life - RH < 10%/23°C for 1000 hours  Resistance to immersion in water at ambient temperature and 80°C  High temperature storage 140°C for 168 hours  Resistance to many chemicals linked to home appliances/automotive or consumer applications PACKAGE OUTLINE SENSOR SOLUTIONS /// HS1101LF HPC052_J 9/2015 Page 5 Document Outline HS1101LF Relative Humidity Sensor
