NXP Semiconductors. BCV61. NPN general-purpose double transistors. Package outline. Fig 16. Package outline SOT143B
该数据表的模型线
文件文字版本
link to page 10 link to page 13

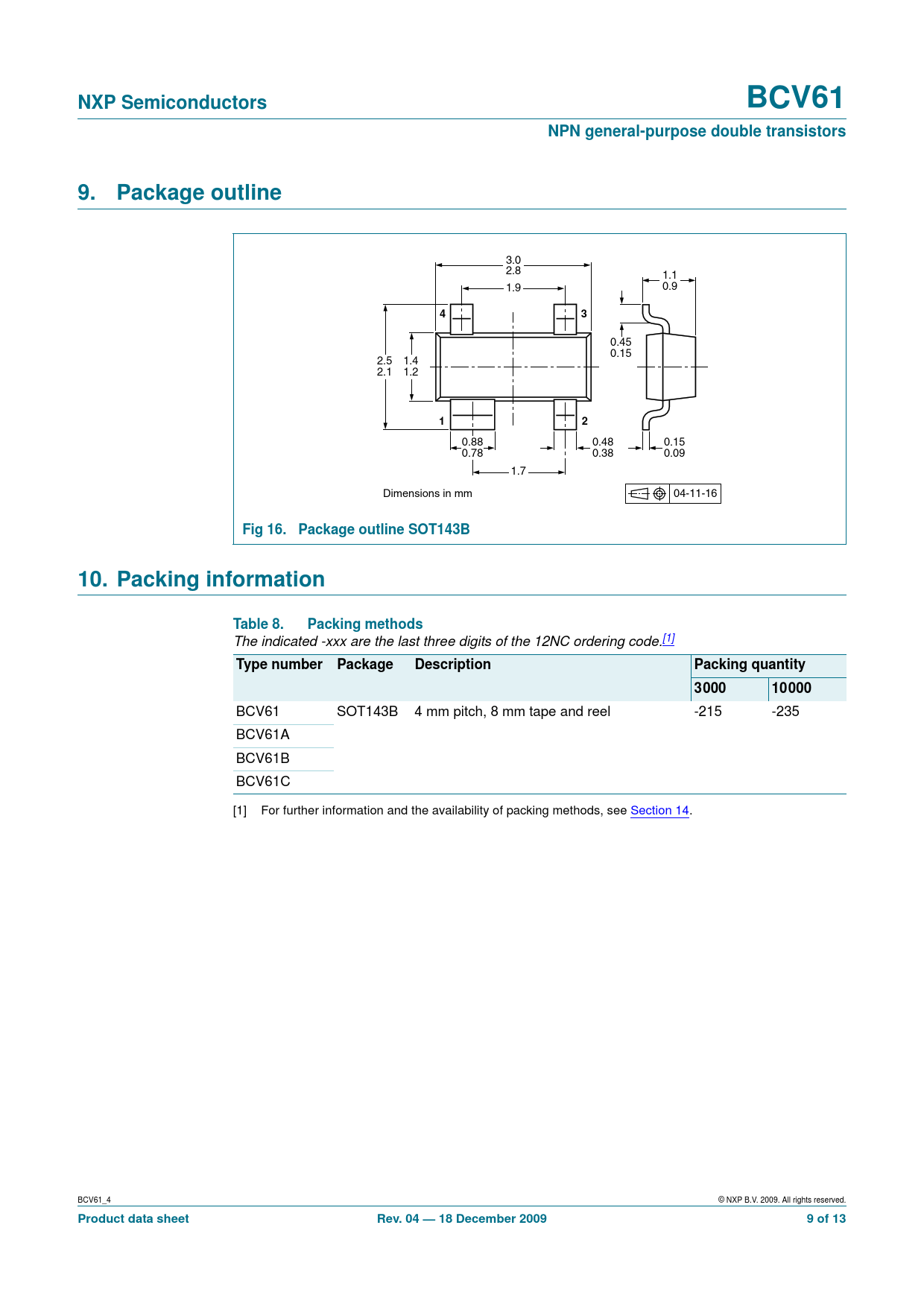

NXP Semiconductors BCV61 NPN general-purpose double transistors 9. Package outline
3.0 2.8 1.1 1.9 0.9
4 3
0.45 0.15 2.5 1.4 2.1 1.2
1 2
0.88 0.48 0.15 0.78 0.38 0.09 1.7 Dimensions in mm 04-11-16
Fig 16. Package outline SOT143B 10. Packing information Table 8. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.[1]
Type number Package Description Packing quantity 3000 10000
BCV61 SOT143B 4 mm pitch, 8 mm tape and reel -215 -235 BCV61A BCV61B BCV61C [1] For further information and the availability of packing methods, see Section 14. BCV61_4 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 04 — 18 December 2009 9 of 13
