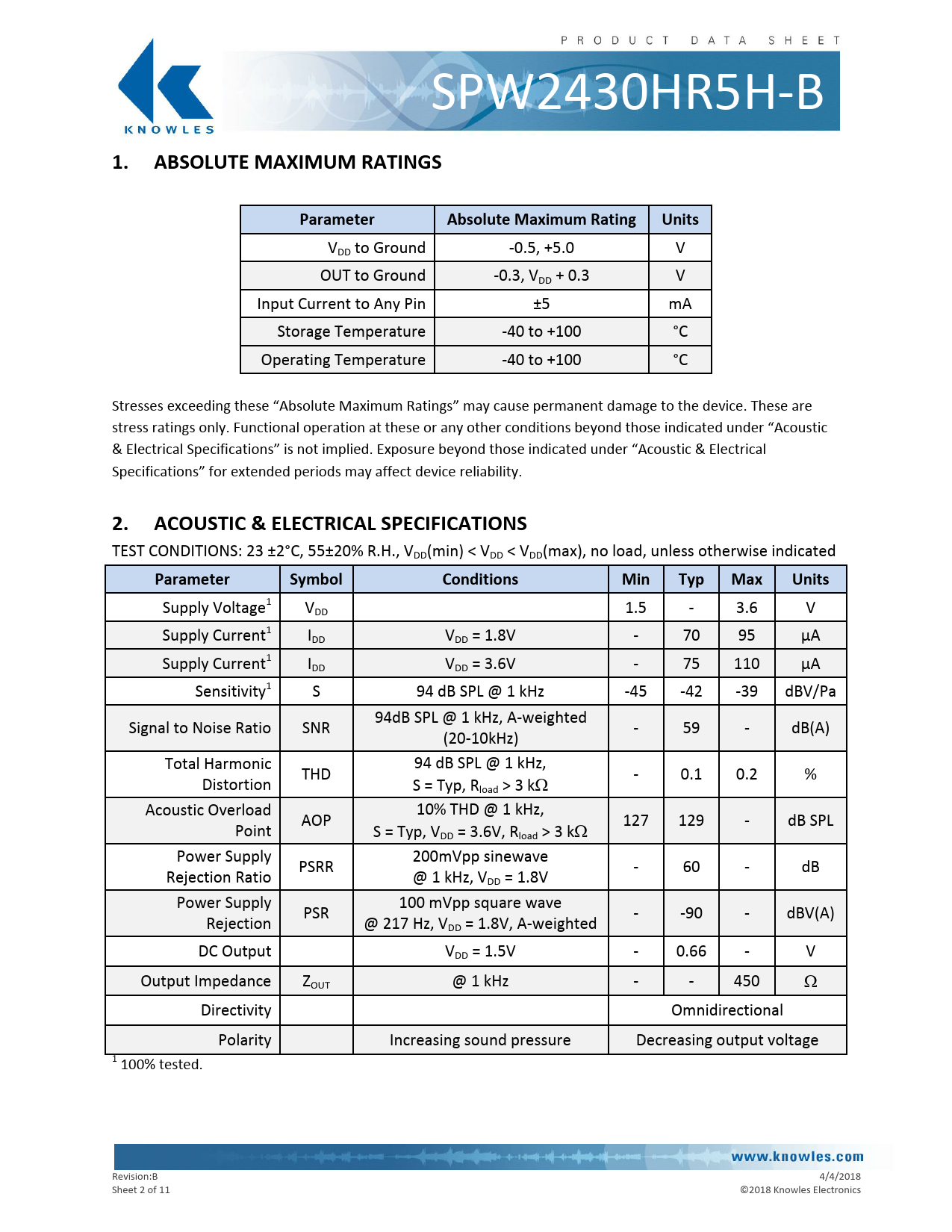

SPW2430HR5H-B
1. ABSOLUTE MAXIMUM RATINGS Parameter Absolute Maximum Rating Units
VDD to Ground -0.5, +5.0 V OUT to Ground -0.3, VDD + 0.3 V Input Current to Any Pin ±5 mA Storage Temperature -40 to +100 °C Operating Temperature -40 to +100 °C Stresses exceeding these “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only. Functional operation at these or any other conditions beyond those indicated under “Acoustic & Electrical Specifications” is not implied. Exposure beyond those indicated under “Acoustic & Electrical Specifications” for extended periods may affect device reliability.
2. ACOUSTIC & ELECTRICAL SPECIFICATIONS
TEST CONDITIONS: 23 ±2°C, 55±20% R.H., VDD(min) < VDD < VDD(max), no load, unless otherwise indicated
Parameter Symbol Conditions Min Typ Max Units
Supply Voltage1 VDD 1.5 - 3.6 V Supply Current1 IDD VDD = 1.8V - 70 95 µA Supply Current1 IDD VDD = 3.6V - 75 110 µA Sensitivity1 S 94 dB SPL @ 1 kHz -45 -42 -39 dBV/Pa 94dB SPL @ 1 kHz, A-weighted Signal to Noise Ratio SNR - 59 - dB(A) (20-10kHz) Total Harmonic 94 dB SPL @ 1 kHz, THD - 0.1 0.2 % Distortion S = Typ, Rload > 3 k Acoustic Overload 10% THD @ 1 kHz, AOP 127 129 - dB SPL Point S = Typ, VDD = 3.6V, Rload > 3 k Power Supply 200mVpp sinewave PSRR - 60 - dB Rejection Ratio @ 1 kHz, VDD = 1.8V Power Supply 100 mVpp square wave PSR - -90 - dBV(A) Rejection @ 217 Hz, VDD = 1.8V, A-weighted DC Output VDD = 1.5V - 0.66 - V Output Impedance ZOUT @ 1 kHz - - 450 Directivity Omnidirectional Polarity Increasing sound pressure Decreasing output voltage 1 100% tested. Revision:B 4/4/2018 Sheet 2 of 11 © 2018 Knowles Electronics
