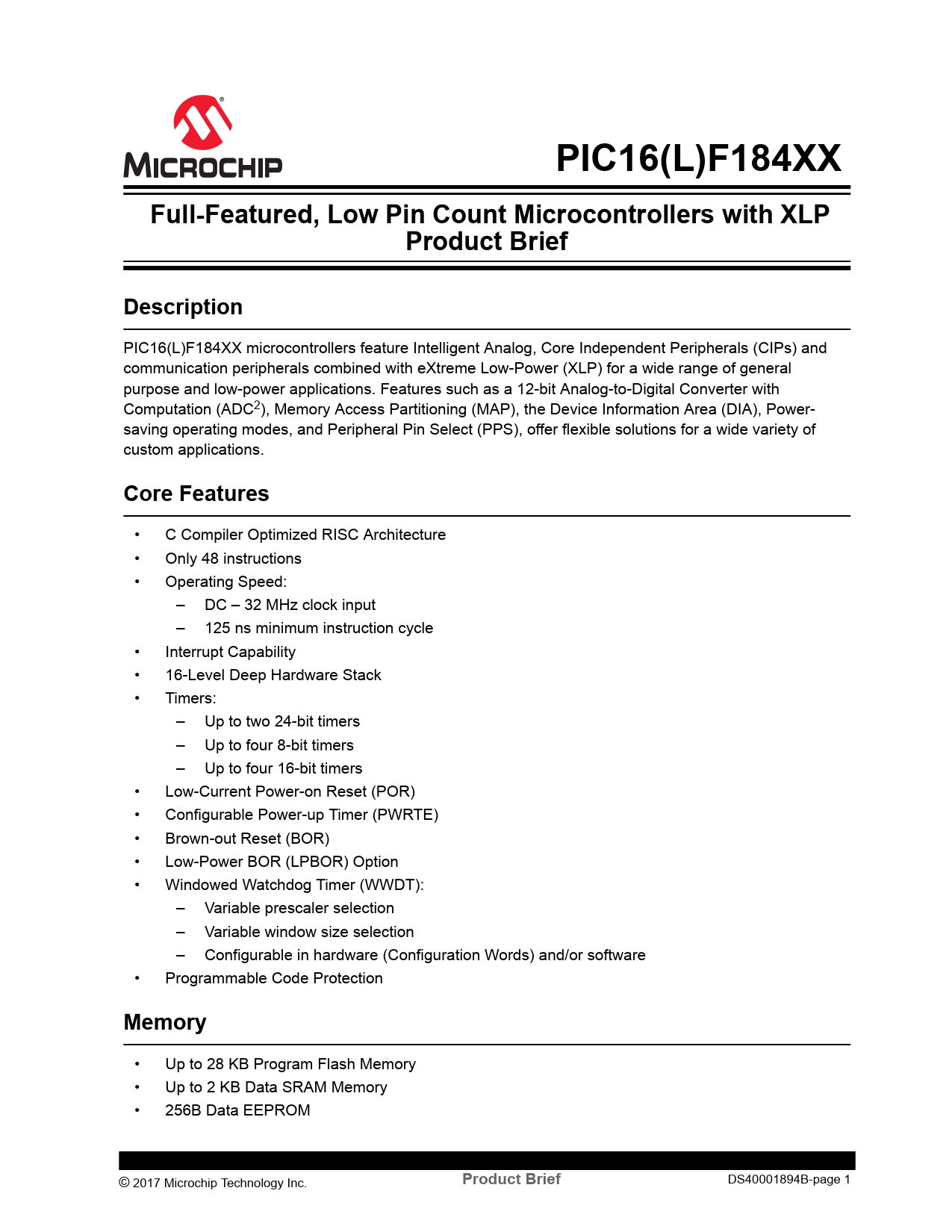

PIC16(L)F184XX Full-Featured, Low Pin Count Microcontrollers with XLP Product Brief Description
PIC16(L)F184XX microcontrollers feature Intelligent Analog, Core Independent Peripherals (CIPs) and communication peripherals combined with eXtreme Low-Power (XLP) for a wide range of general purpose and low-power applications. Features such as a 12-bit Analog-to-Digital Converter with Computation (ADC2), Memory Access Partitioning (MAP), the Device Information Area (DIA), Power- saving operating modes, and Peripheral Pin Select (PPS), offer flexible solutions for a wide variety of custom applications.
Core Features
• C Compiler Optimized RISC Architecture • Only 48 instructions • Operating Speed: – DC – 32 MHz clock input – 125 ns minimum instruction cycle • Interrupt Capability • 16-Level Deep Hardware Stack • Timers: – Up to two 24-bit timers – Up to four 8-bit timers – Up to four 16-bit timers • Low-Current Power-on Reset (POR) • Configurable Power-up Timer (PWRTE) • Brown-out Reset (BOR) • Low-Power BOR (LPBOR) Option • Windowed Watchdog Timer (WWDT): – Variable prescaler selection – Variable window size selection – Configurable in hardware (Configuration Words) and/or software • Programmable Code Protection
Memory
• Up to 28 KB Program Flash Memory • Up to 2 KB Data SRAM Memory • 256B Data EEPROM © 2017 Microchip Technology Inc.
