Product Brief PIC16(L)F184XX (Microchip) - 5
| 制造商 | Microchip |
| 描述 | Full-Featured, Low Pin Count Microcontrollers with XLP |
| 页数 / 页 | 18 / 5 — PIC16(L)F184XX. Family Types. Table 1. PIC16(L)F184XX Family Types. … |
| 文件格式/大小 | PDF / 244 Kb |
| 文件语言 | 英语 |
PIC16(L)F184XX. Family Types. Table 1. PIC16(L)F184XX Family Types. ords). imer. (1). (2) s. C/SPI)2. atchdog T. CLC. Device. I/O’. CWG. CCP. PWM
文件文字版本

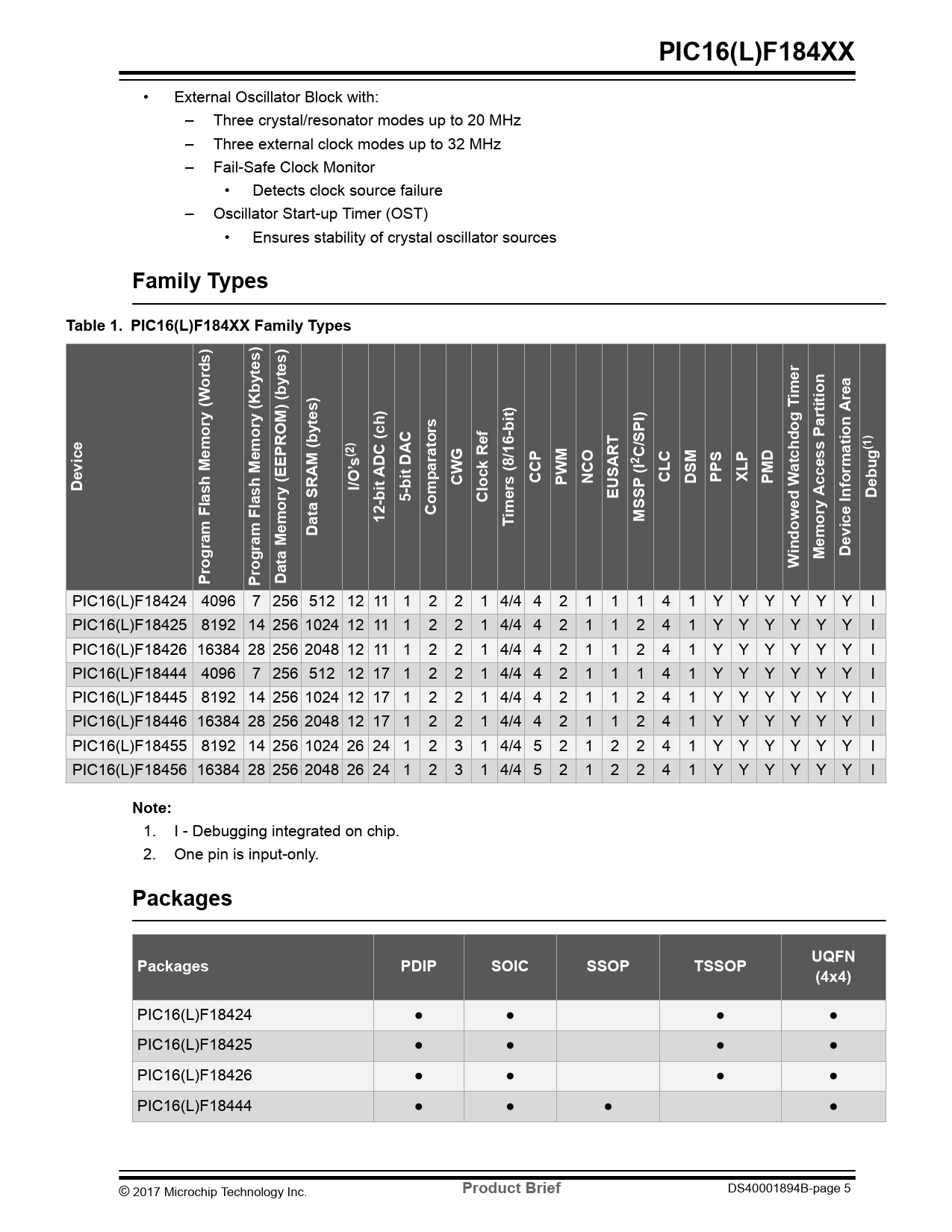

PIC16(L)F184XX
• External Oscillator Block with: – Three crystal/resonator modes up to 20 MHz – Three external clock modes up to 32 MHz – Fail-Safe Clock Monitor • Detects clock source failure – Oscillator Start-up Timer (OST) • Ensures stability of crystal oscillator sources
Family Types Table 1. PIC16(L)F184XX Family Types ords) imer (1) (2) s C/SPI)2 atchdog T CLC Device I/O’ CWG CCP PWM NCO DSM PPS XLP PMD 5-bit DAC Clock Ref EUSART Debug 12-bit ADC (ch) Comparators imers (8/16-bit) T MSSP (I Data SRAM (bytes) indowed W W Memory Access Partition Device Information Area Program Flash Memory (W Program Flash Memory (Kbytes) Data Memory (EEPROM) (bytes)
PIC16(L)F18424 4096 7 256 512 12 11 1 2 2 1 4/4 4 2 1 1 1 4 1 Y Y Y Y Y Y I PIC16(L)F18425 8192 14 256 1024 12 11 1 2 2 1 4/4 4 2 1 1 2 4 1 Y Y Y Y Y Y I PIC16(L)F18426 16384 28 256 2048 12 11 1 2 2 1 4/4 4 2 1 1 2 4 1 Y Y Y Y Y Y I PIC16(L)F18444 4096 7 256 512 12 17 1 2 2 1 4/4 4 2 1 1 1 4 1 Y Y Y Y Y Y I PIC16(L)F18445 8192 14 256 1024 12 17 1 2 2 1 4/4 4 2 1 1 2 4 1 Y Y Y Y Y Y I PIC16(L)F18446 16384 28 256 2048 12 17 1 2 2 1 4/4 4 2 1 1 2 4 1 Y Y Y Y Y Y I PIC16(L)F18455 8192 14 256 1024 26 24 1 2 3 1 4/4 5 2 1 2 2 4 1 Y Y Y Y Y Y I PIC16(L)F18456 16384 28 256 2048 26 24 1 2 3 1 4/4 5 2 1 2 2 4 1 Y Y Y Y Y Y I
Note:
1. I - Debugging integrated on chip. 2. One pin is input-only.
Packages UQFN Packages PDIP SOIC SSOP TSSOP (4x4)
PIC16(L)F18424 ● ● ● ● PIC16(L)F18425 ● ● ● ● PIC16(L)F18426 ● ● ● ● PIC16(L)F18444 ● ● ● ● © 2017 Microchip Technology Inc.
Product Brief
DS40001894B-page 5 Document Outline Description Core Features Memory Operating Characteristics Power-Saving Operation Modes eXtreme Low-Power (XLP) Features Digital Peripherals Analog Peripherals Flexible Oscillator Structure Family Types Packages Pin Diagrams 1. 14/16-Pin Diagrams 2. 20-Pin Diagrams 3. 28-Pin Diagrams Pin Allocation Tables 1. 14/16-Pin Allocation Table 2. 20-Pin Allocation Table 3. 28-Pin Allocation Table The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
