Product Brief PIC18 Q43 (Microchip) - 2
| 制造商 | Microchip |
| 描述 | PIC18 Q43 combines our most popular, versatile and easy to use Core Independent Peripherals with advanced interconnection capabilities that make sophisticated hardware customization effortless |
| 页数 / 页 | 20 / 2 — PIC18 Q43. Core Features. Memory. Product Brief |
| 文件格式/大小 | PDF / 273 Kb |
| 文件语言 | 英语 |
PIC18 Q43. Core Features. Memory. Product Brief
该数据表的模型线
文件文字版本

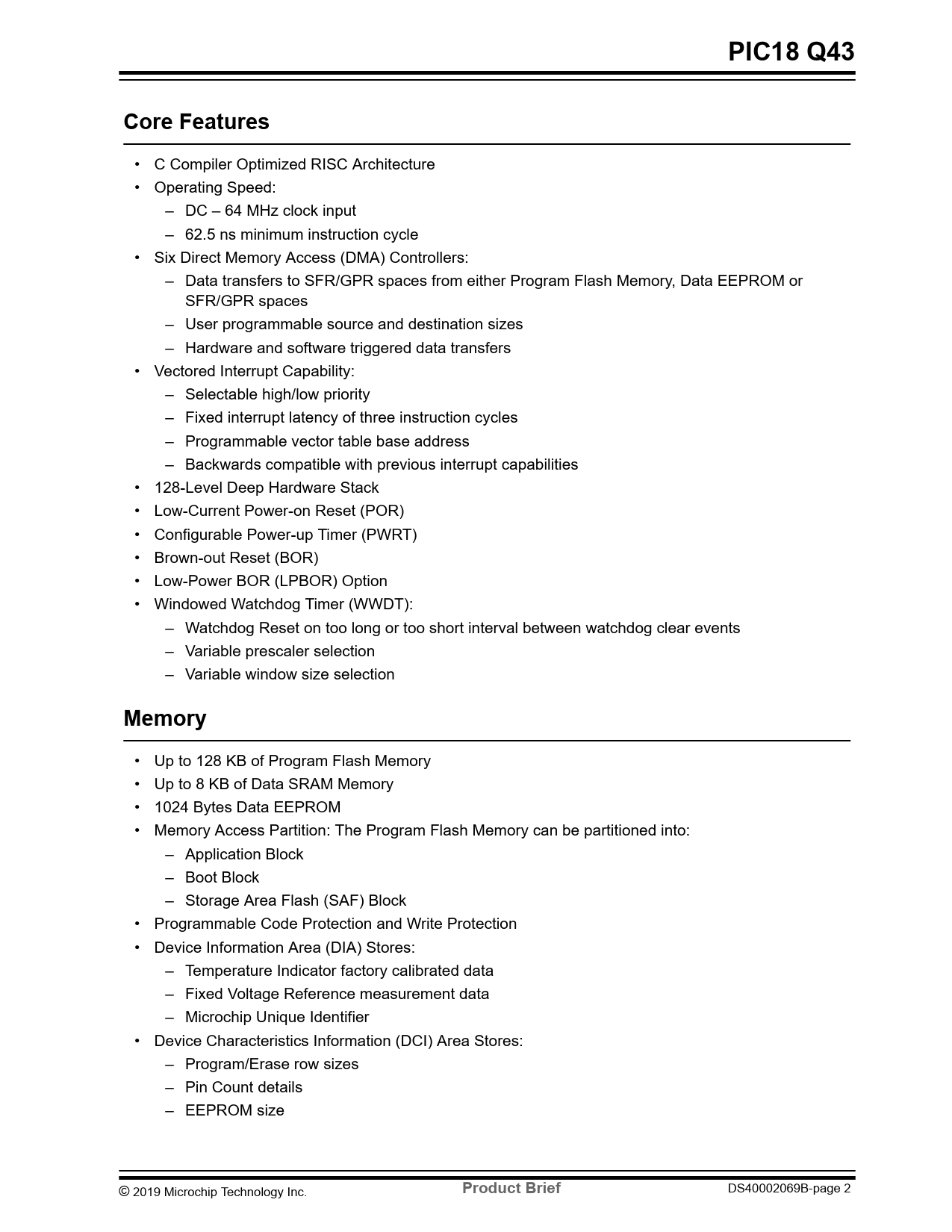

PIC18 Q43 Core Features
• C Compiler Optimized RISC Architecture • Operating Speed: – DC – 64 MHz clock input – 62.5 ns minimum instruction cycle • Six Direct Memory Access (DMA) Controllers: – Data transfers to SFR/GPR spaces from either Program Flash Memory, Data EEPROM or SFR/GPR spaces – User programmable source and destination sizes – Hardware and software triggered data transfers • Vectored Interrupt Capability: – Selectable high/low priority – Fixed interrupt latency of three instruction cycles – Programmable vector table base address – Backwards compatible with previous interrupt capabilities • 128-Level Deep Hardware Stack • Low-Current Power-on Reset (POR) • Configurable Power-up Timer (PWRT) • Brown-out Reset (BOR) • Low-Power BOR (LPBOR) Option • Windowed Watchdog Timer (WWDT): – Watchdog Reset on too long or too short interval between watchdog clear events – Variable prescaler selection – Variable window size selection
Memory
• Up to 128 KB of Program Flash Memory • Up to 8 KB of Data SRAM Memory • 1024 Bytes Data EEPROM • Memory Access Partition: The Program Flash Memory can be partitioned into: – Application Block – Boot Block – Storage Area Flash (SAF) Block • Programmable Code Protection and Write Protection • Device Information Area (DIA) Stores: – Temperature Indicator factory calibrated data – Fixed Voltage Reference measurement data – Microchip Unique Identifier • Device Characteristics Information (DCI) Area Stores: – Program/Erase row sizes – Pin Count details – EEPROM size © 2019 Microchip Technology Inc.
