Product Brief PIC18 Q43 (Microchip) - 3
| 制造商 | Microchip |
| 描述 | PIC18 Q43 combines our most popular, versatile and easy to use Core Independent Peripherals with advanced interconnection capabilities that make sophisticated hardware customization effortless |
| 页数 / 页 | 20 / 3 — PIC18 Q43. Operating Characteristics. Power-Saving Functionality. Digital … |
| 文件格式/大小 | PDF / 273 Kb |
| 文件语言 | 英语 |
PIC18 Q43. Operating Characteristics. Power-Saving Functionality. Digital Peripherals. Product Brief
该数据表的模型线
文件文字版本

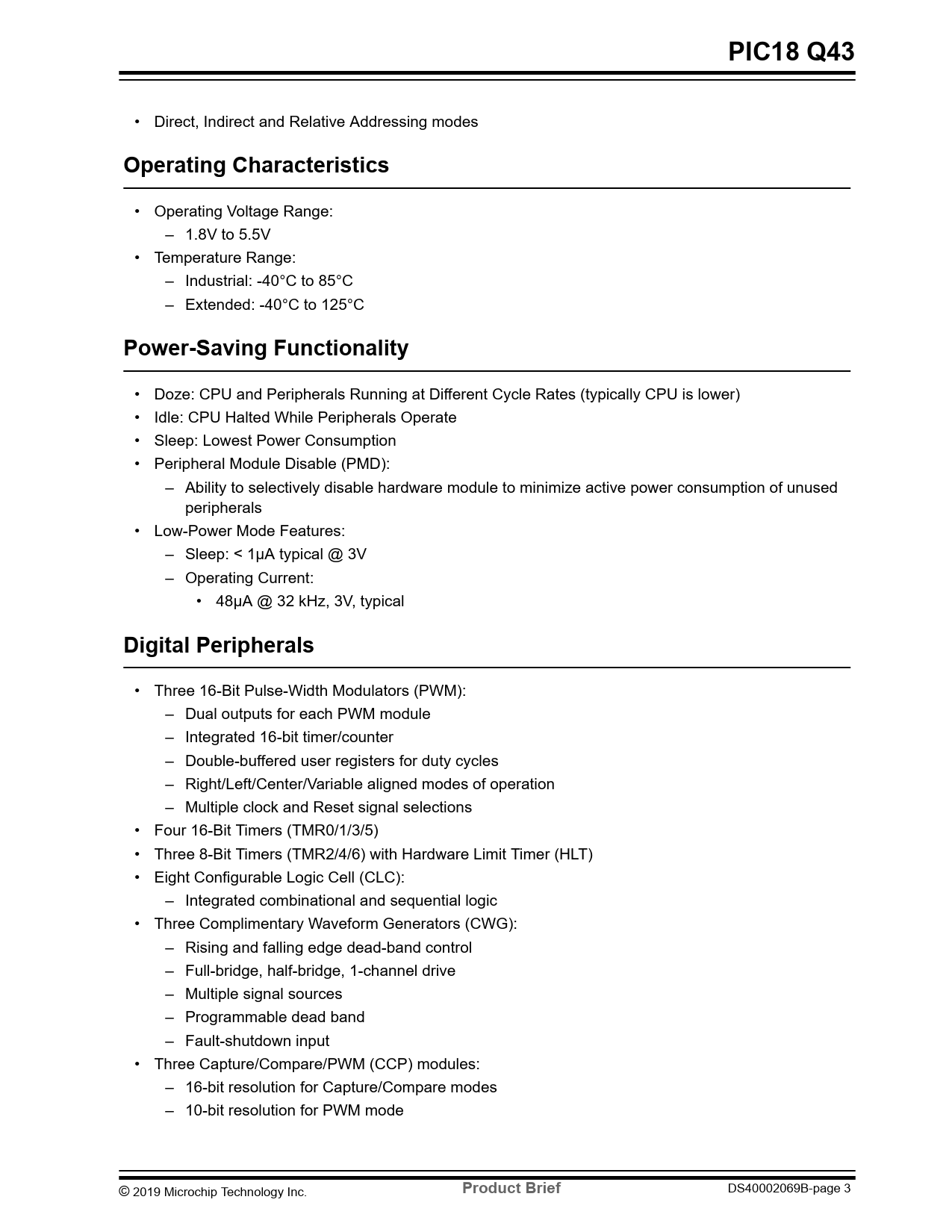

PIC18 Q43
• Direct, Indirect and Relative Addressing modes
Operating Characteristics
• Operating Voltage Range: – 1.8V to 5.5V • Temperature Range: – Industrial: -40°C to 85°C – Extended: -40°C to 125°C
Power-Saving Functionality
• Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower) • Idle: CPU Halted While Peripherals Operate • Sleep: Lowest Power Consumption • Peripheral Module Disable (PMD): – Ability to selectively disable hardware module to minimize active power consumption of unused peripherals • Low-Power Mode Features: – Sleep: < 1µA typical @ 3V – Operating Current: • 48µA @ 32 kHz, 3V, typical
Digital Peripherals
• Three 16-Bit Pulse-Width Modulators (PWM): – Dual outputs for each PWM module – Integrated 16-bit timer/counter – Double-buffered user registers for duty cycles – Right/Left/Center/Variable aligned modes of operation – Multiple clock and Reset signal selections • Four 16-Bit Timers (TMR0/1/3/5) • Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT) • Eight Configurable Logic Cell (CLC): – Integrated combinational and sequential logic • Three Complimentary Waveform Generators (CWG): – Rising and falling edge dead-band control – Full-bridge, half-bridge, 1-channel drive – Multiple signal sources – Programmable dead band – Fault-shutdown input • Three Capture/Compare/PWM (CCP) modules: – 16-bit resolution for Capture/Compare modes – 10-bit resolution for PWM mode © 2019 Microchip Technology Inc.
Product Brief
DS40002069B-page 3 Document Outline Description PIC18 Q43 Family Types Core Features Memory Operating Characteristics Power-Saving Functionality Digital Peripherals Analog Peripherals Clocking Structure Programming/Debug Features Packages Pin Diagrams Pin Allocation Tables Table of Contents The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
