Datasheet MMCB2528G5T-0001A3 (TDK) - 2
| 制造商 | TDK |
| 描述 | Multilayer Band Pass Filter For 27.5-29.5GHz |
| 页数 / 页 | 6 / 2 — R F C o m p o n e n t s. Multilayer Band Pass Filter. Conformity to RoHS … |
| 文件格式/大小 | PDF / 103 Kb |
| 文件语言 | 英语 |
R F C o m p o n e n t s. Multilayer Band Pass Filter. Conformity to RoHS Directive. For 27.5-29.5GHz. MMCB2528G5T-0001A3
该数据表的模型线
文件文字版本

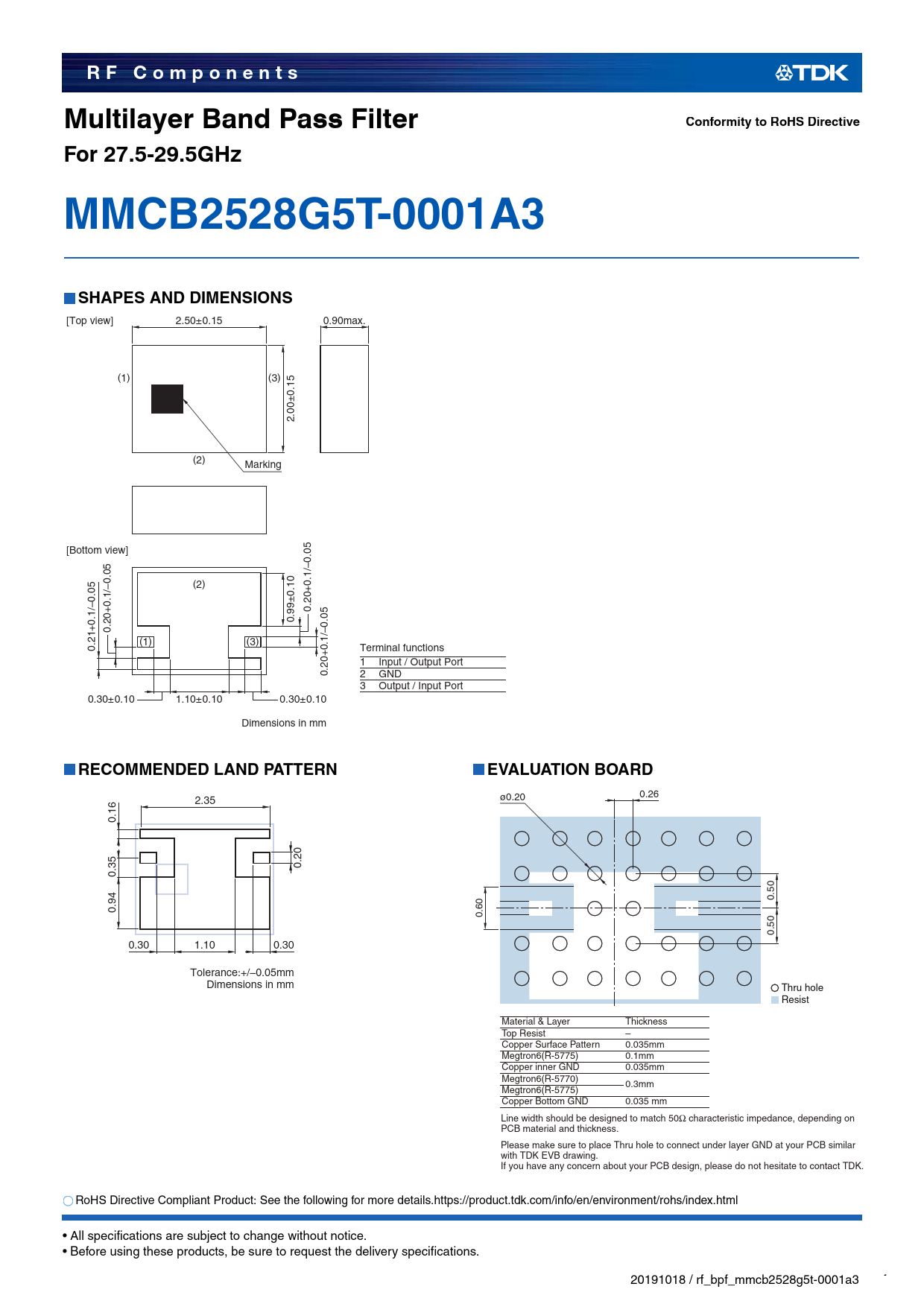

R F C o m p o n e n t s Multilayer Band Pass Filter Conformity to RoHS Directive For 27.5-29.5GHz MMCB2528G5T-0001A3 SHAPES AND DIMENSIONS
[Top view] 2.50±0.15 0.90max. (1) (3) 0.15 2.00± (2) Marking [Bottom view] (2) 0.10 0.20+0.1/–0.05 0.99± 0.20+0.1/–0.05 (1) (3) 0.21+0.1/–0.05 Terminal functions 1 Input / Output Port 0.20+0.1/–0.05 2 GND 3 Output / Input Port 0.30±0.10 1.10±0.10 0.30±0.10 Dimensions in mm
RECOMMENDED LAND PATTERN EVALUATION BOARD
0.26 2.35 ø0.20 0.16 0.20 0.35 0.50 0.94 0.60 0.50 0.30 1.10 0.30 Tolerance:+/–0.05mm Dimensions in mm Thru hole Resist Material & Layer Thickness Top Resist – Copper Surface Pattern 0.035mm Megtron6(R-5775) 0.1mm Copper inner GND 0.035mm Megtron6(R-5770) 0.3mm Megtron6(R-5775) Copper Bottom GND 0.035 mm Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Please make sure to place Thru hole to connect under layer GND at your PCB similar with TDK EVB drawing. If you have any concern about your PCB design, please do not hesitate to contact TDK. RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20191018 / rf_bpf_mmcb2528g5t-0001a3_en.fm
