Datasheet MMCB2528G5T-0001A3 (TDK) - 3
| 制造商 | TDK |
| 描述 | Multilayer Band Pass Filter For 27.5-29.5GHz |
| 页数 / 页 | 6 / 3 — R F C o m p o n e n t s. ELECTRICAL CHARACTERISTICS. Frequency Range. … |
| 文件格式/大小 | PDF / 103 Kb |
| 文件语言 | 英语 |

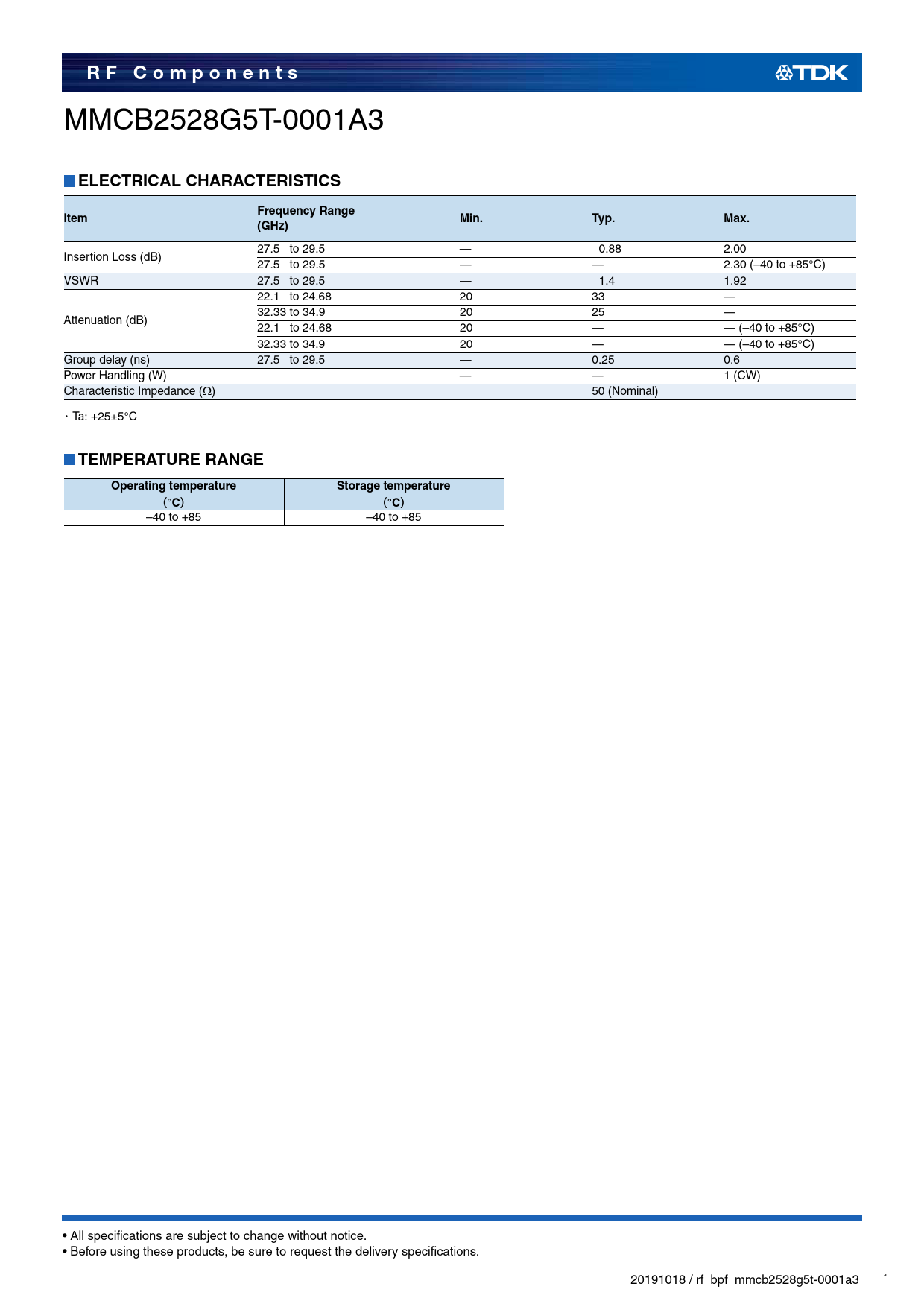

R F C o m p o n e n t s. ELECTRICAL CHARACTERISTICS. Frequency Range. Item. Min. Typ. Max. (GHz). TEMPERATURE RANGE
该数据表的模型线
文件文字版本
R F C o m p o n e n t s
MMCB2528G5T-0001A3
ELECTRICAL CHARACTERISTICS Frequency Range Item Min. Typ. Max. (GHz)
27.5 to 29.5 — 0.88 2.00 Insertion Loss (dB) 27.5 to 29.5 — — 2.30 (–40 to +85°C) VSWR 27.5 to 29.5 — 1.4 1.92 22.1 to 24.68 20 33 — 32.33 to 34.9 20 25 — Attenuation (dB) 22.1 to 24.68 20 — — (–40 to +85°C) 32.33 to 34.9 20 — — (–40 to +85°C) Group delay (ns) 27.5 to 29.5 — 0.25 0.6 Power Handling (W) — — 1 (CW) Characteristic Impedance () 50 (Nominal) ・Ta: +25±5°C
TEMPERATURE RANGE Operating temperature Storage temperature
（
°C
） （
°C
） –40 to +85 –40 to +85 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20191018 / rf_bpf_mmcb2528g5t-0001a3_en.fm
