| 制造商 | Infineon |
| 描述 | 650 V half bridge gate driver with integrated bootstrap diode |
| 页数 / 页 | 24 / 5 — VCC. HIN. /LIN. VSS. COM |
| 修订版 | 02_10 |
| 文件格式/大小 | PDF / 964 Kb |
| 文件语言 | 英语 |
VCC. HIN. /LIN. VSS. COM
该数据表的模型线
文件文字版本
2ED2181 (4) S06F (J)2ED2108(4)S06F(J) 650 V half bridge gate driver with integrated bootstrap diode 3 Pin configuration and functionality 3.1 Pin configuration 1
VCC
14 2
HIN VB
13 1
VCC VB
8 3
/LIN HO
12 2
HIN HO
7 4
VS
11
DT
3
/LIN VS
6 5
VSS
10 4
COM LO
5 6 9
COM
7
LO

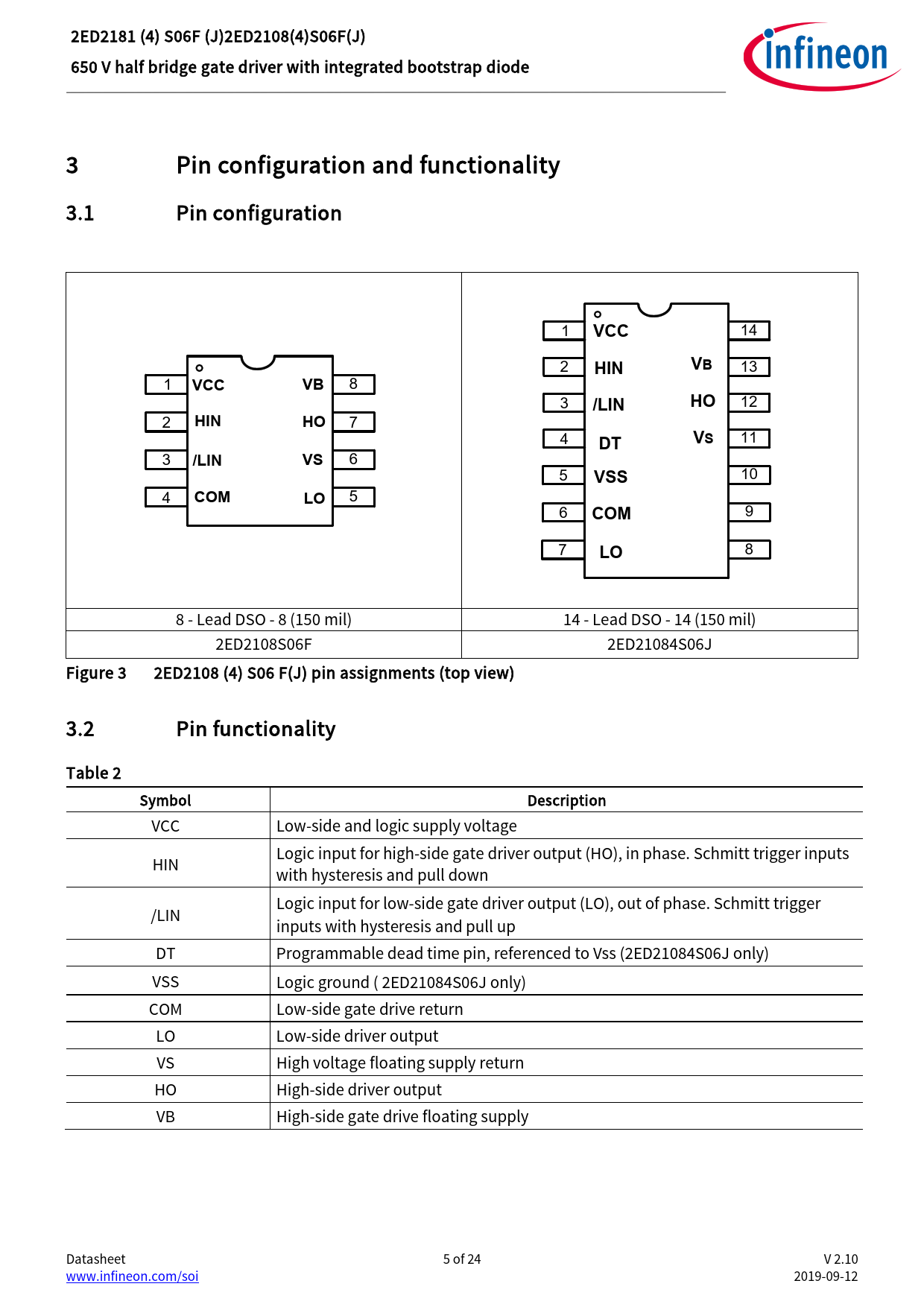

8 8 - Lead DSO - 8 (150 mil) 14 - Lead DSO - 14 (150 mil) 2ED2108S06F 2ED21084S06J Figure 3 2ED2108 (4) S06 F(J) pin assignments (top view) 3.2 Pin functionality Table 2 Symbol Description VCC Low-side and logic supply voltage Logic input for high-side gate driver output (HO), in phase. Schmitt trigger inputs HIN with hysteresis and pull down Logic input for low-side gate driver output (LO), out of phase. Schmitt trigger /LIN inputs with hysteresis and pul up DT Programmable dead time pin, referenced to Vss (2ED21084S06J only) VSS Logic ground ( 2ED21084S06J only) COM Low-side gate drive return LO Low-side driver output VS High voltage floating supply return HO High-side driver output VB High-side gate drive floating supply Datasheet 5 of 24 V 2.10 www.infineon.com/soi 2019-09-12 Document Outline Features Product summary Potential applications Product validation Ordering information Description 1 Table of contents 2 Block diagram 3 Pin configuration and functionality 3.1 Pin configuration 3.2 Pin functionality 4 Electrical parameters 4.1 Absolute maximum ratings 4.2 Recommended operating conditions 4.3 Static electrical characteristics 4.4 Dynamic electrical characteristics 5 Application information and additional details 5.1 IGBT / MOSFET gate drive 5.2 Switching and timing relationships 5.3 Deadtime 5.4 Matched propagation delays 5.5 Input logic compatibility 5.6 Undervoltage lockout 5.7 Bootstrap diode 5.8 Calculating the bootstrap capacitance CBS 5.9 Tolerant to negative tranisents on input pins 5.10 Negative voltage transient tolerance of VS pin 5.11 NTSOA – Negative Transient Safe Operating Area 5.12 Higher headroom for input to output signal transmission with logic operation upto -11 V 5.13 Maximum switching frequency 5.14 PCB layout tips 6 Qualification information0F 7 Related products 8 Package details 9 Part marking information 10 Additional documentation and resources 10.1 Infineon online forum resources 11 Revision history
