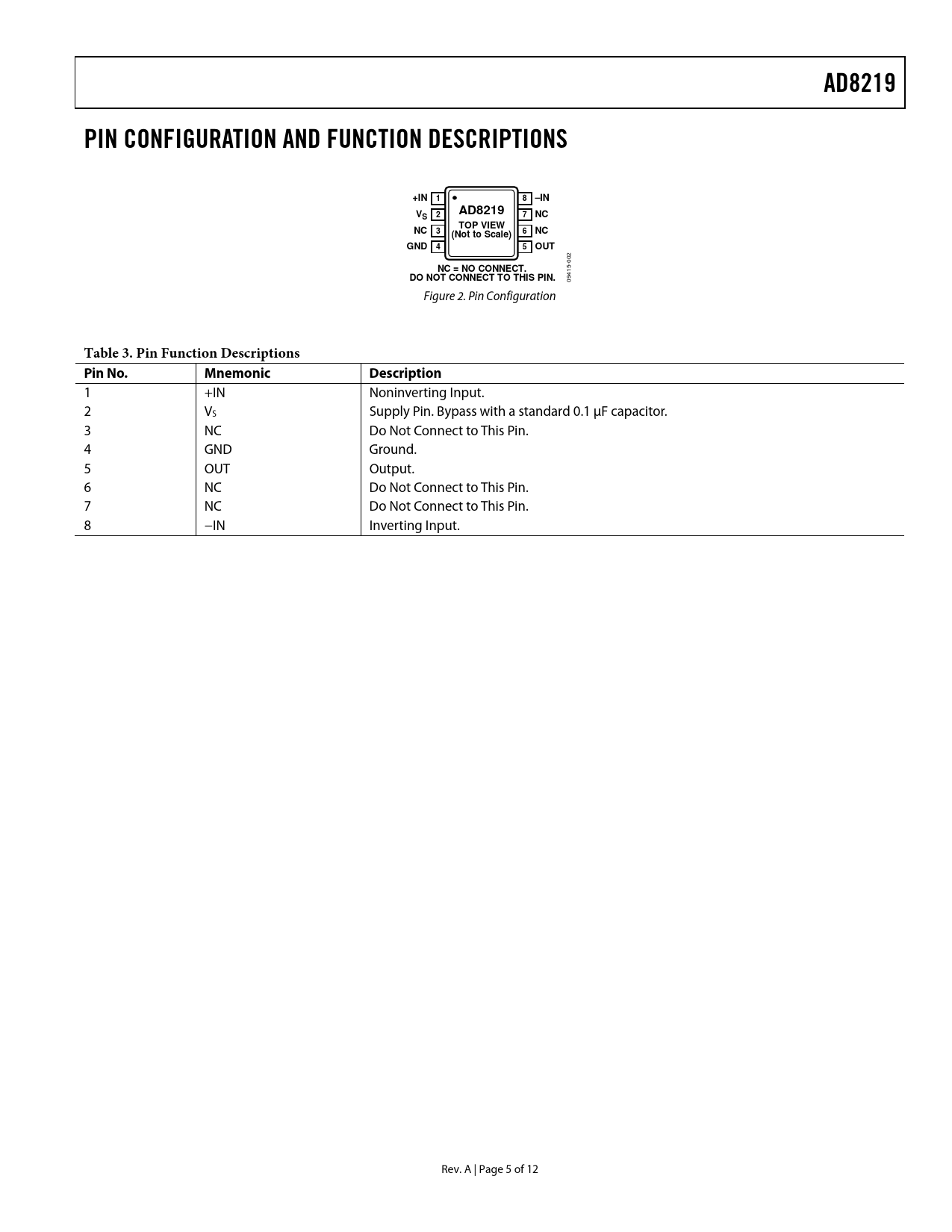

AD8219PIN CONFIGURATION AND FUNCTION DESCRIPTIONS+IN18–INVAD8219S27NCTOP VIEWNC36NC(Not to Scale)GND45OUT 2 00 NC = NO CONNECT. 5- 41 DO NOT CONNECT TO THIS PIN. 09 Figure 2. Pin Configuration Table 3. Pin Function Descriptions Pin No.MnemonicDescription 1 +IN Noninverting Input. 2 VS Supply Pin. Bypass with a standard 0.1 μF capacitor. 3 NC Do Not Connect to This Pin. 4 GND Ground. 5 OUT Output. 6 NC Do Not Connect to This Pin. 7 NC Do Not Connect to This Pin. 8 −IN Inverting Input. Rev. A | Page 5 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER CORE SUPPLY CONNECTIONS OUTPUT CLAMPING OUTPUT LINEARITY APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSING MOTOR CONTROL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
