AD8219. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本

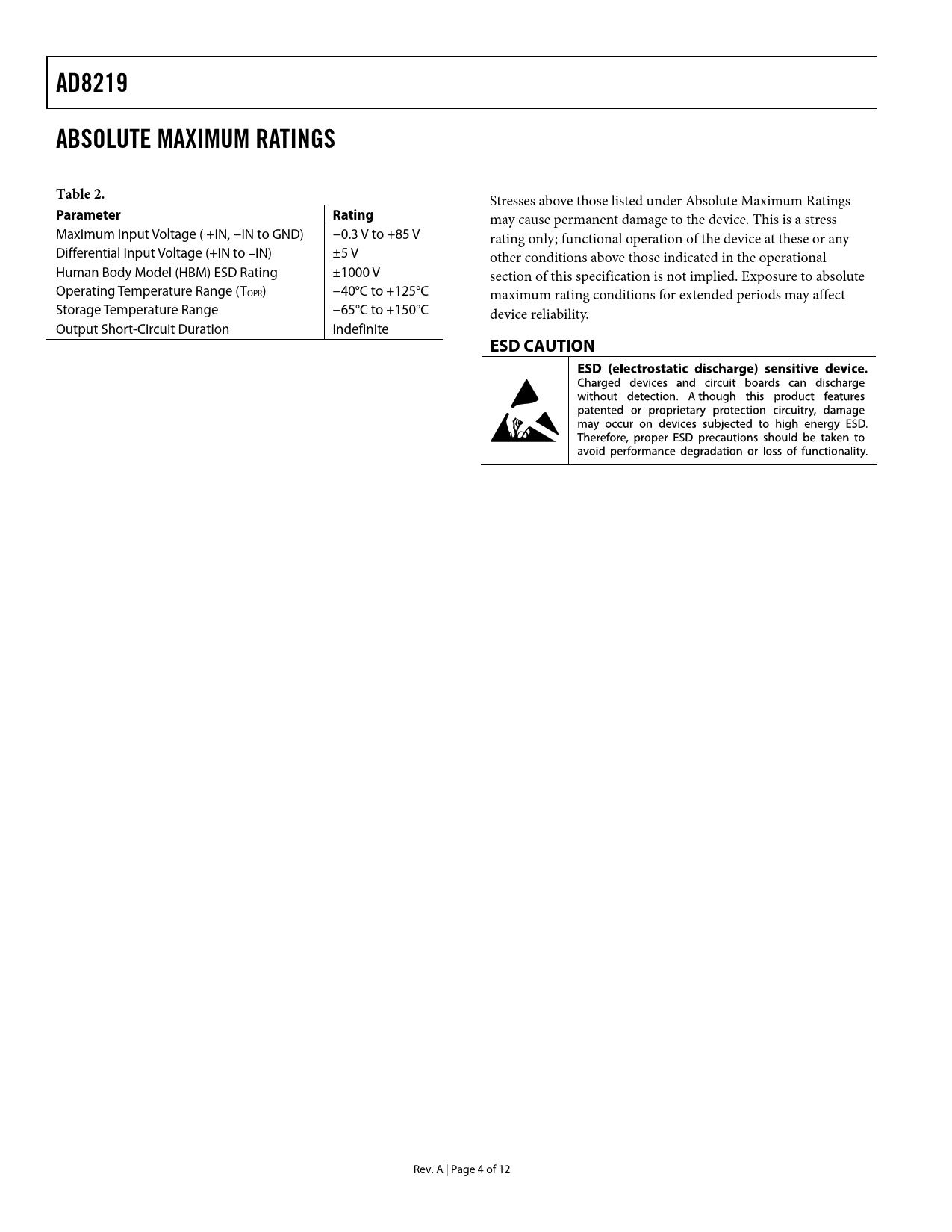

AD8219 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Maximum Input Voltage ( +IN, −IN to GND) −0.3 V to +85 V rating only; functional operation of the device at these or any Differential Input Voltage (+IN to –IN) ±5 V other conditions above those indicated in the operational Human Body Model (HBM) ESD Rating ±1000 V section of this specification is not implied. Exposure to absolute Operating Temperature Range (TOPR) −40°C to +125°C maximum rating conditions for extended periods may affect Storage Temperature Range −65°C to +150°C device reliability. Output Short-Circuit Duration Indefinite
ESD CAUTION
Rev. A | Page 4 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER CORE SUPPLY CONNECTIONS OUTPUT CLAMPING OUTPUT LINEARITY APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSING MOTOR CONTROL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
