AD8207. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本

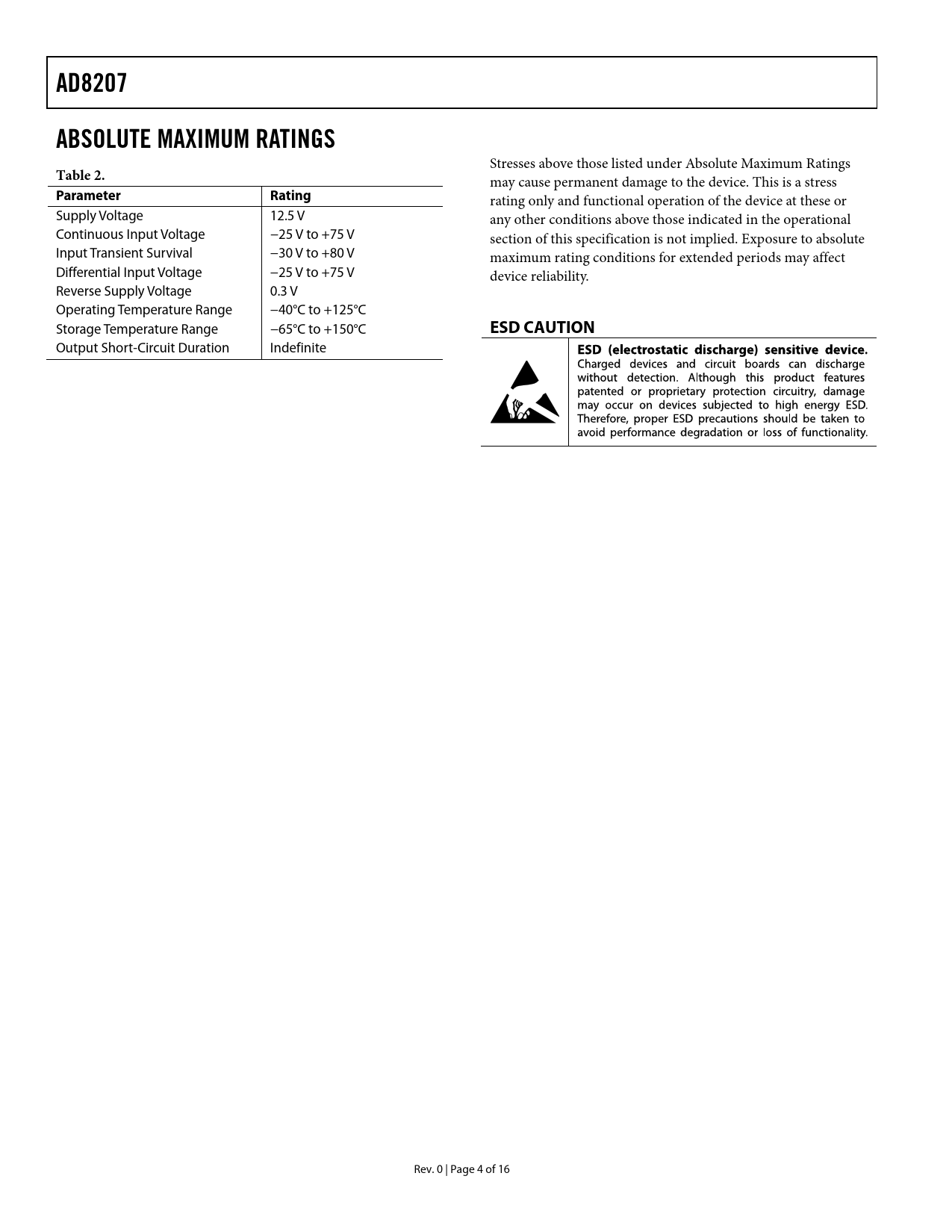

AD8207 ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under Absolute Maximum Ratings
Table 2.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only and functional operation of the device at these or Supply Voltage 12.5 V any other conditions above those indicated in the operational Continuous Input Voltage −25 V to +75 V section of this specification is not implied. Exposure to absolute Input Transient Survival −30 V to +80 V maximum rating conditions for extended periods may affect Differential Input Voltage −25 V to +75 V device reliability. Reverse Supply Voltage 0.3 V Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Output Short-Circuit Duration Indefinite Rev. 0 | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER SUPPLY ADJUSTMENT 3.3 V TO 4.5 V SUPPLY OPERATION 4.5 V TO 5.5 V SUPPLY OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION Ground Referenced Output Mode V+ Referenced Output Mode BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION MOTOR CONTROL 3-Phase Motor Control H-Bridge Motor Control SOLENOID CONTROL High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
