AD8207. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +IN. GND 2. 7 VREF1. VREF2 3. TOP VIEW. 6 V+. RANGE 4 (Not to Scale) 5 OUT
该数据表的模型线
文件文字版本

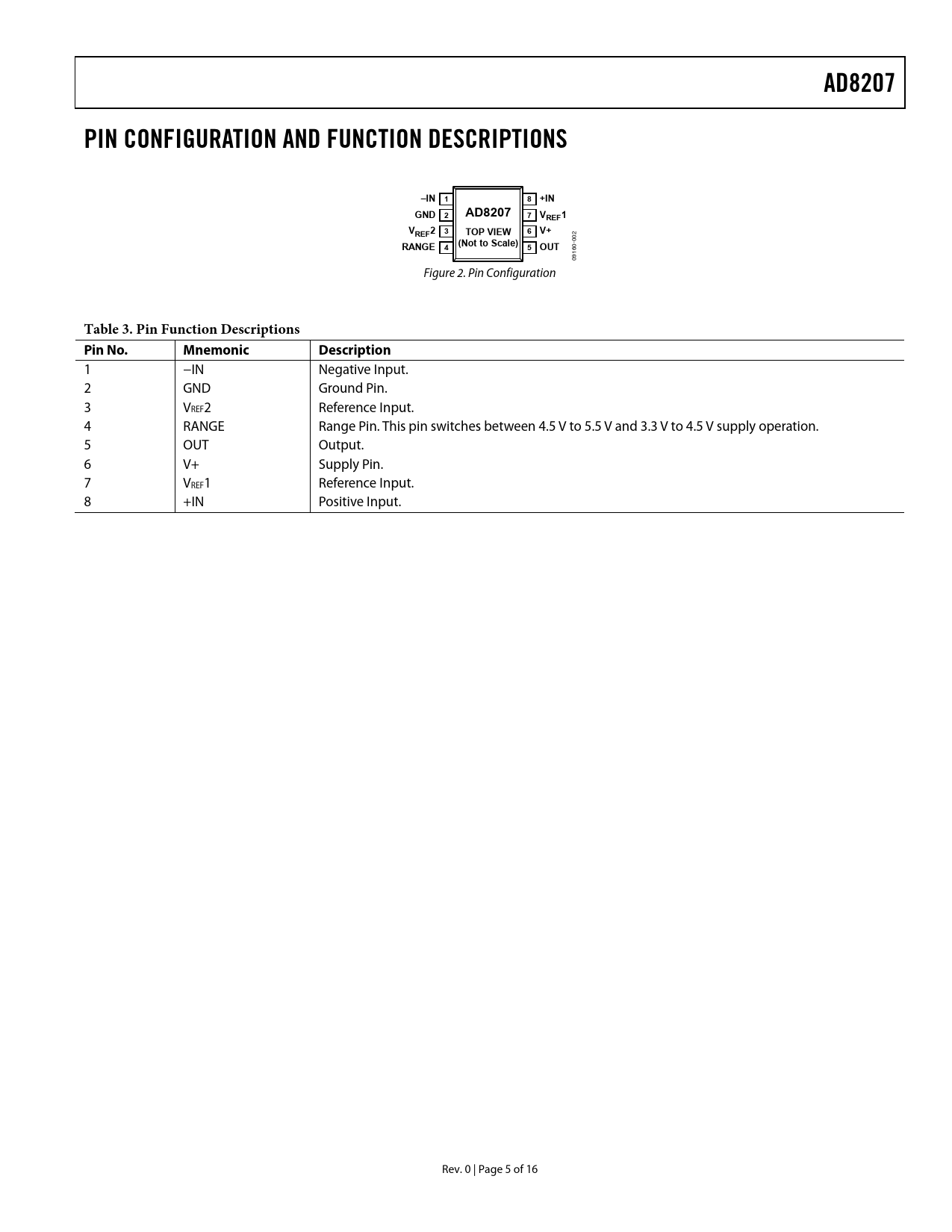

AD8207 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS –IN 1 8 +IN GND 2 AD8207 7 VREF1 VREF2 3 TOP VIEW 6 V+
2 00
RANGE 4 (Not to Scale) 5 OUT
0- 16 09 Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input. 2 GND Ground Pin. 3 VREF2 Reference Input. 4 RANGE Range Pin. This pin switches between 4.5 V to 5.5 V and 3.3 V to 4.5 V supply operation. 5 OUT Output. 6 V+ Supply Pin. 7 VREF1 Reference Input. 8 +IN Positive Input. Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER SUPPLY ADJUSTMENT 3.3 V TO 4.5 V SUPPLY OPERATION 4.5 V TO 5.5 V SUPPLY OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION Ground Referenced Output Mode V+ Referenced Output Mode BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION MOTOR CONTROL 3-Phase Motor Control H-Bridge Motor Control SOLENOID CONTROL High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
