| 制造商 | Analog Devices |
| 描述 | Fast Response, High Voltage, Current Shunt Comparator |
| 页数 / 页 | 16 / 5 — Data Sheet. AD8214. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VS 1. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 247 Kb |
| 文件语言 | 英语 |

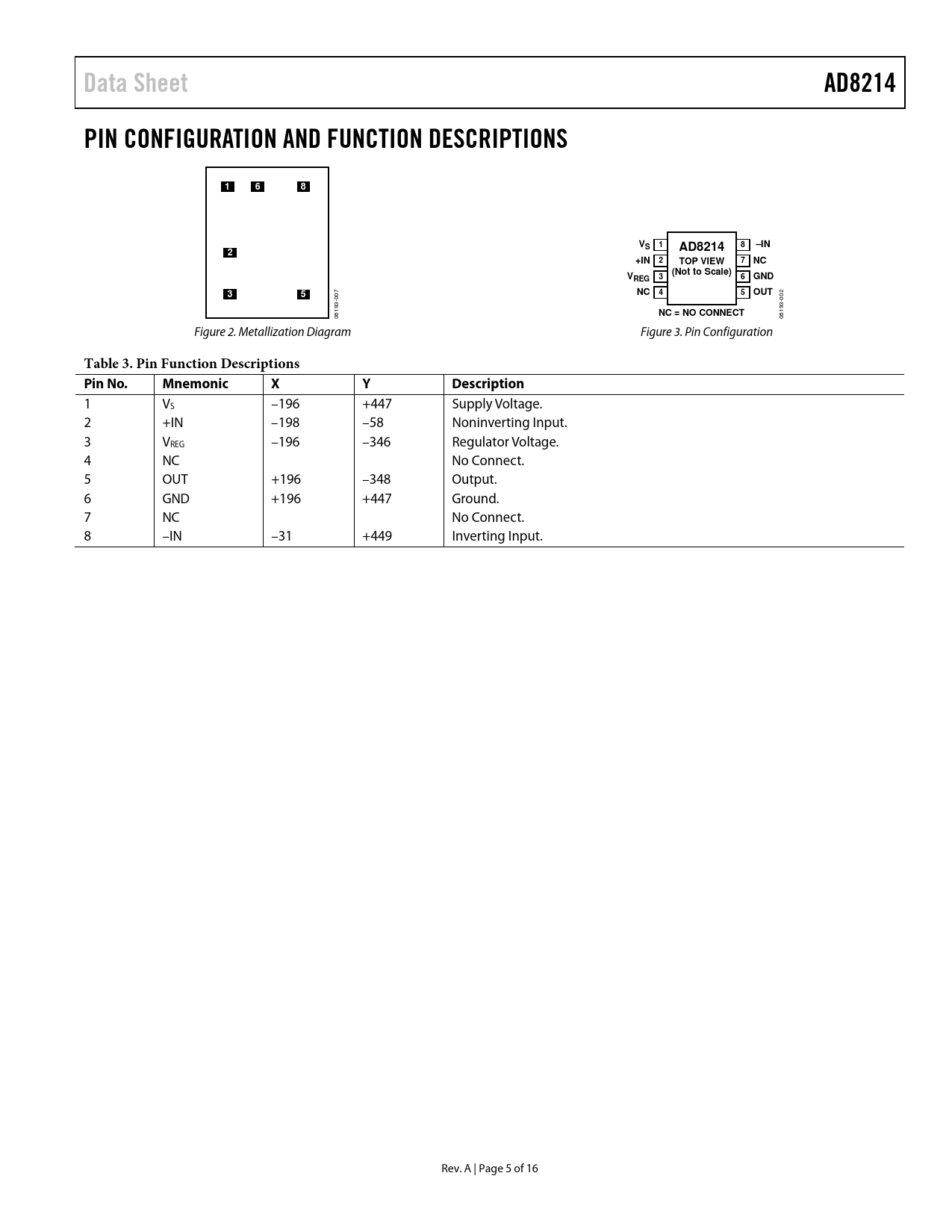

Data Sheet. AD8214. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VS 1. –IN. +IN. TOP VIEW. (Not to Scale). VREG 3. GND. OUT. NC = NO CONNECT
该数据表的模型线
文件文字版本
Data Sheet AD8214 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 6 8 VS 1 AD8214 8 –IN 2 +IN 2 TOP VIEW 7 NC (Not to Scale) VREG 3 6 GND 3 5 NC 4 5 OUT
007 002
NC = NO CONNECT
06193- 06193- Figure 2. Metallization Diagram Figure 3. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic X Y Description
1 VS –196 +447 Supply Voltage. 2 +IN –198 –58 Noninverting Input. 3 VREG –196 –346 Regulator Voltage. 4 NC No Connect. 5 OUT +196 –348 Output. 6 GND +196 +447 Ground. 7 NC No Connect. 8 –IN –31 +449 Inverting Input. Rev. A | Page 5 of 16 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Comparator Offset and Hysteresis Setting the Input Threshold Voltage Input-Referred Dynamic Error Applications Typical Setup and Calculations High Side Overcurrent Detection Outline Dimensions Ordering Guide Automotive Products
