Datasheet AD8206 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | High Common-Mode Voltage, Bidirectional Current Shunt Amplifier |
| 页数 / 页 | 13 / 4 — AD8206. Data Sheet. AD8206 SO. Parameter. Test Conditions/Comments. Min. … |
| 修订版 | C |
| 文件格式/大小 | PDF / 363 Kb |
| 文件语言 | 英语 |

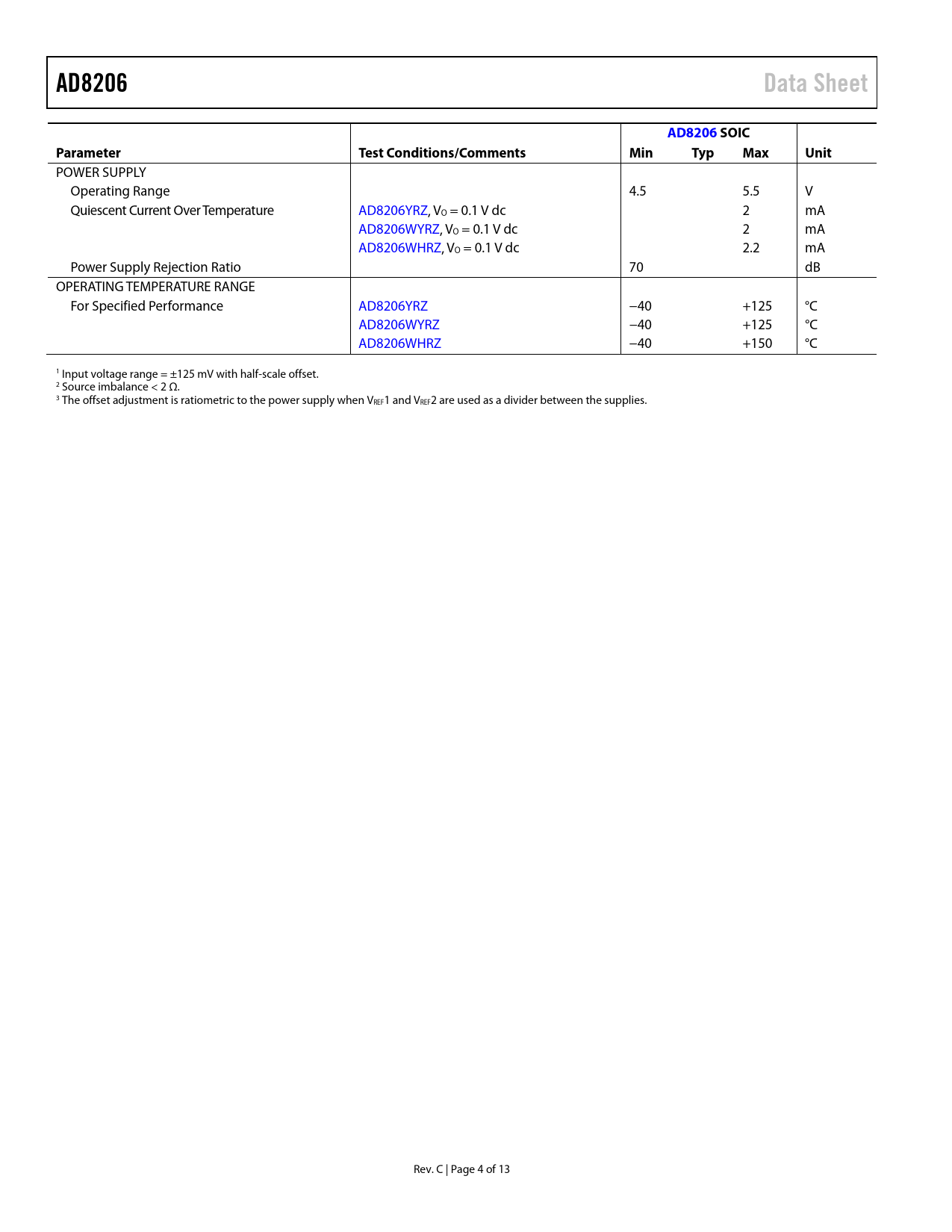

AD8206. Data Sheet. AD8206 SO. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
AD8206 Data Sheet AD8206 SO IC Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Operating Range 4.5 5.5 V Quiescent Current Over Temperature AD8206YRZ, VO = 0.1 V dc 2 mA AD8206WYRZ, VO = 0.1 V dc 2 mA AD8206WHRZ, VO = 0.1 V dc 2.2 mA Power Supply Rejection Ratio 70 dB OPERATING TEMPERATURE RANGE For Specified Performance AD8206YRZ −40 +125 °C AD8206WYRZ −40 +125 °C AD8206WHRZ −40 +150 °C 1 Input voltage range = ±125 mV with half-scale offset. 2 Source imbalance < 2 Ω. 3 The offset adjustment is ratiometric to the power supply when VREF1 and VREF2 are used as a divider between the supplies. Rev. C | Page 4 of 13 Document Outline FEATURES EXCELLENT AC AND DC PERFORMANCE APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION GROUND REFERENCED OUTPUT V+ REFERENCED OUTPUT BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSE WITH A LOW-SIDE SWITCH HIGH-SIDE CURRENT SENSE WITH A HIGH-SIDE SWITCH OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
