Data Sheet. AD8206. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本

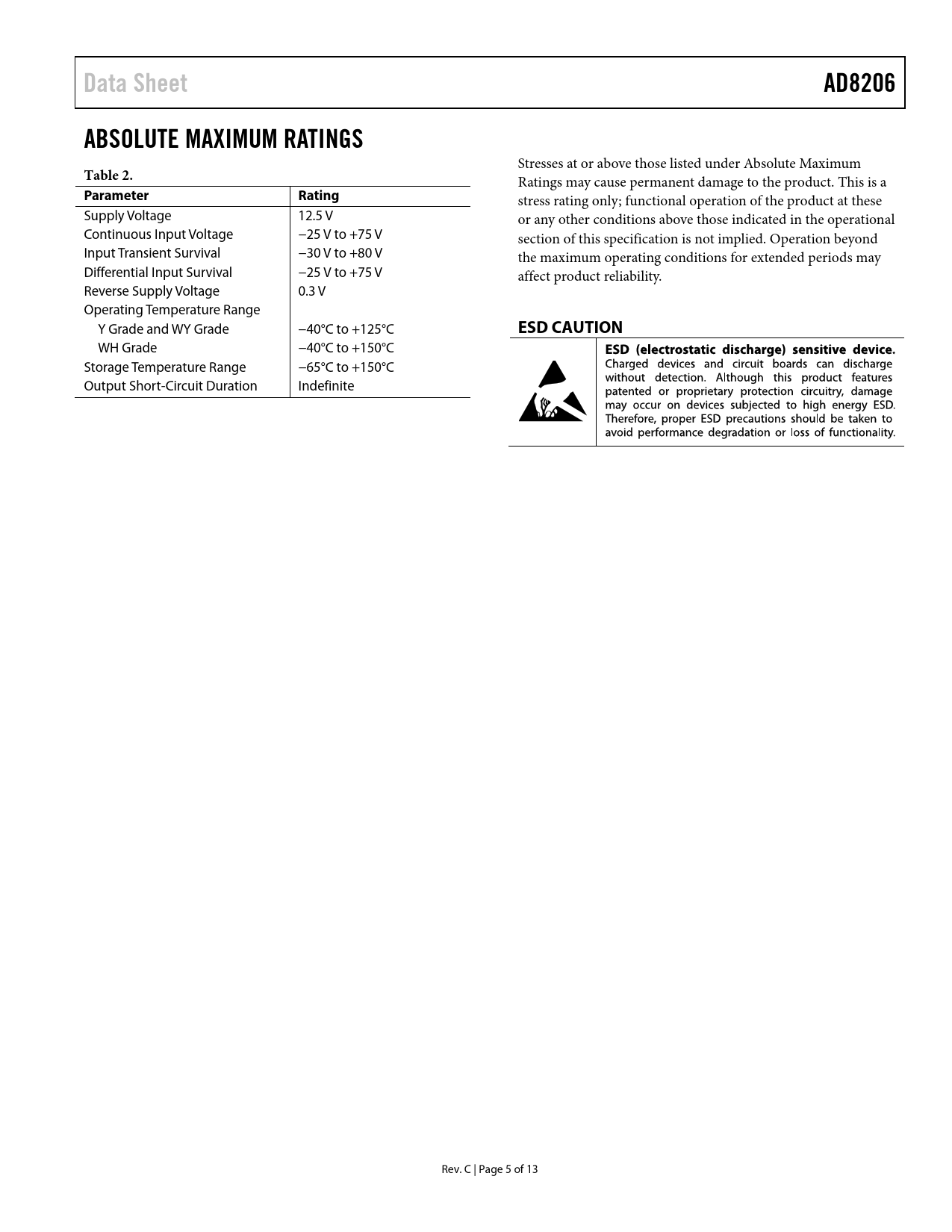

Data Sheet AD8206 ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage 12.5 V or any other conditions above those indicated in the operational Continuous Input Voltage −25 V to +75 V section of this specification is not implied. Operation beyond Input Transient Survival −30 V to +80 V the maximum operating conditions for extended periods may Differential Input Survival −25 V to +75 V affect product reliability. Reverse Supply Voltage 0.3 V Operating Temperature Range Y Grade and WY Grade −40°C to +125°C
ESD CAUTION
WH Grade −40°C to +150°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Rev. C | Page 5 of 13 Document Outline FEATURES EXCELLENT AC AND DC PERFORMANCE APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION GROUND REFERENCED OUTPUT V+ REFERENCED OUTPUT BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSE WITH A LOW-SIDE SWITCH HIGH-SIDE CURRENT SENSE WITH A HIGH-SIDE SWITCH OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
