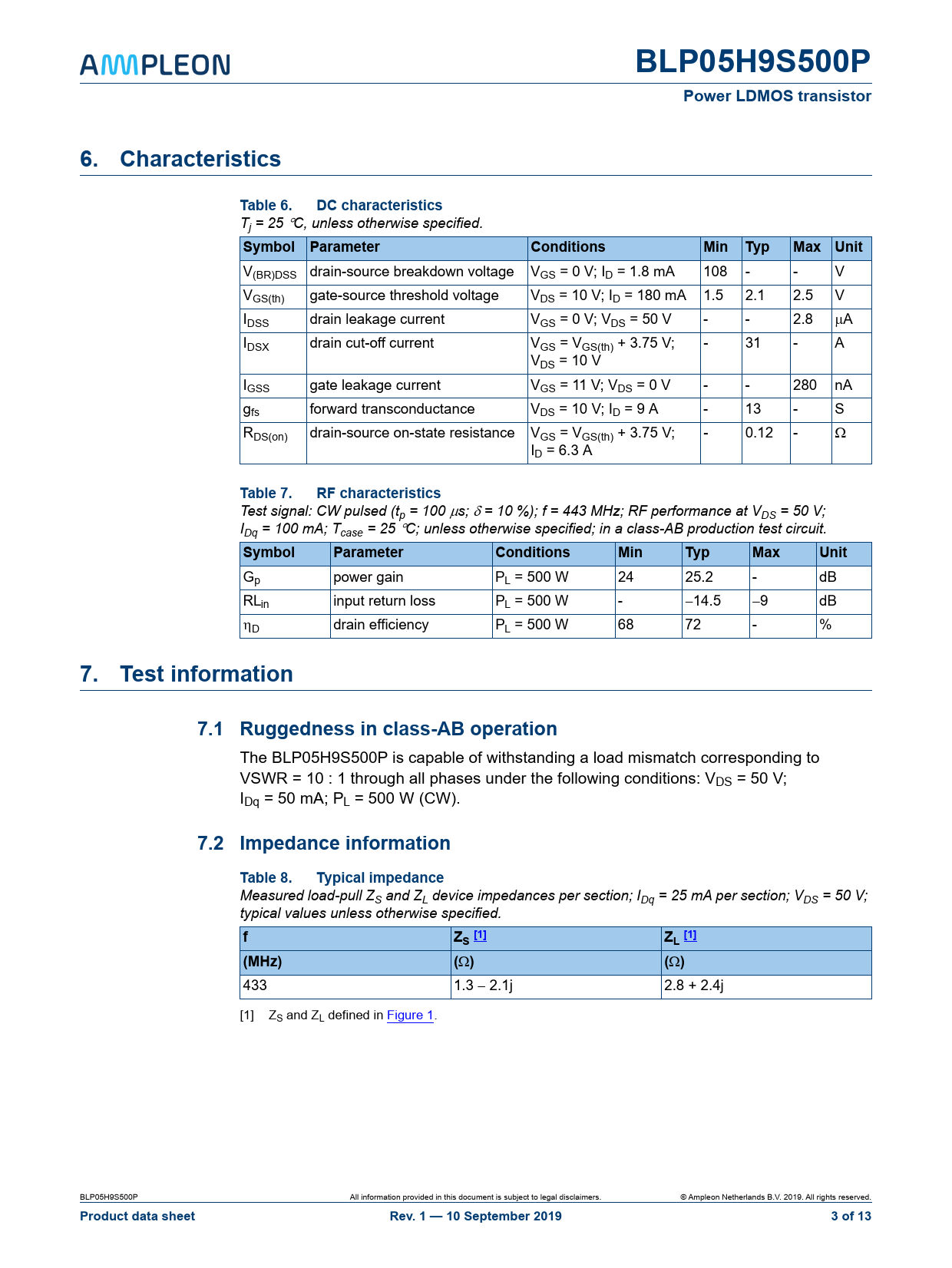

BLP05H9S500P Power LDMOS transistor 6. Characteristics Table 6. DC characteristics
Tj = 25 C, unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
V(BR)DSS drain-source breakdown voltage VGS = 0 V; ID = 1.8 mA 108 - - V VGS(th) gate-source threshold voltage VDS = 10 V; ID = 180 mA 1.5 2.1 2.5 V IDSS drain leakage current VGS = 0 V; VDS = 50 V - - 2.8 A IDSX drain cut-off current VGS = VGS(th) + 3.75 V; - 31 - A VDS = 10 V IGSS gate leakage current VGS = 11 V; VDS = 0 V - - 280 nA gfs forward transconductance VDS = 10 V; ID = 9 A - 13 - S RDS(on) drain-source on-state resistance VGS = VGS(th) + 3.75 V; - 0.12 - ID = 6.3 A
Table 7. RF characteristics
Test signal: CW pulsed (tp = 100 s; = 10 %); f = 443 MHz; RF performance at VDS = 50 V; IDq = 100 mA; Tcase = 25 C; unless otherwise specified; in a class-AB production test circuit.
Symbol Parameter Conditions Min Typ Max Unit
Gp power gain PL = 500 W 24 25.2 - dB RLin input return loss PL = 500 W - 14.5 9 dB D drain efficiency PL = 500 W 68 72 - %
7. Test information 7.1 Ruggedness in class-AB operation
The BLP05H9S500P is capable of withstanding a load mismatch corresponding to VSWR = 10 : 1 through all phases under the following conditions: VDS = 50 V; IDq = 50 mA; PL = 500 W (CW).
7.2 Impedance information Table 8. Typical impedance
Measured load-pull ZS and ZL device impedances per section; IDq = 25 mA per section; VDS = 50 V; typical values unless otherwise specified.
f ZS [1] ZL [1] (MHz) ( ) ( )
433 1.3 2.1j 2.8 + 2.4j [1] ZS and ZL defined in Figure 1. BLP05H9S500P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2019. All rights reserved.
Product data sheet Rev. 1 — 10 September 2019 3 of 13
