Data Brief Bora (Teledyne e2v)
| 制造商 | Teledyne e2v |
| 描述 | 1.3MP BORA CMOS Sensor. High Resolution Time of Flight CMOS Image Sensor |
| 页数 / 页 | 2 / 1 — 1.3MP BORA CMOS SENSOR. FEATURES ». PERFORMANCE CHARACTERISTICS*. … |
| 文件格式/大小 | PDF / 189 Kb |
| 文件语言 | 英语 |
1.3MP BORA CMOS SENSOR. FEATURES ». PERFORMANCE CHARACTERISTICS*. APPLICATIONS. EMBEDDED FUNCTIONS. teledyne-e2v.com/imaging
该数据表的模型线
文件文字版本

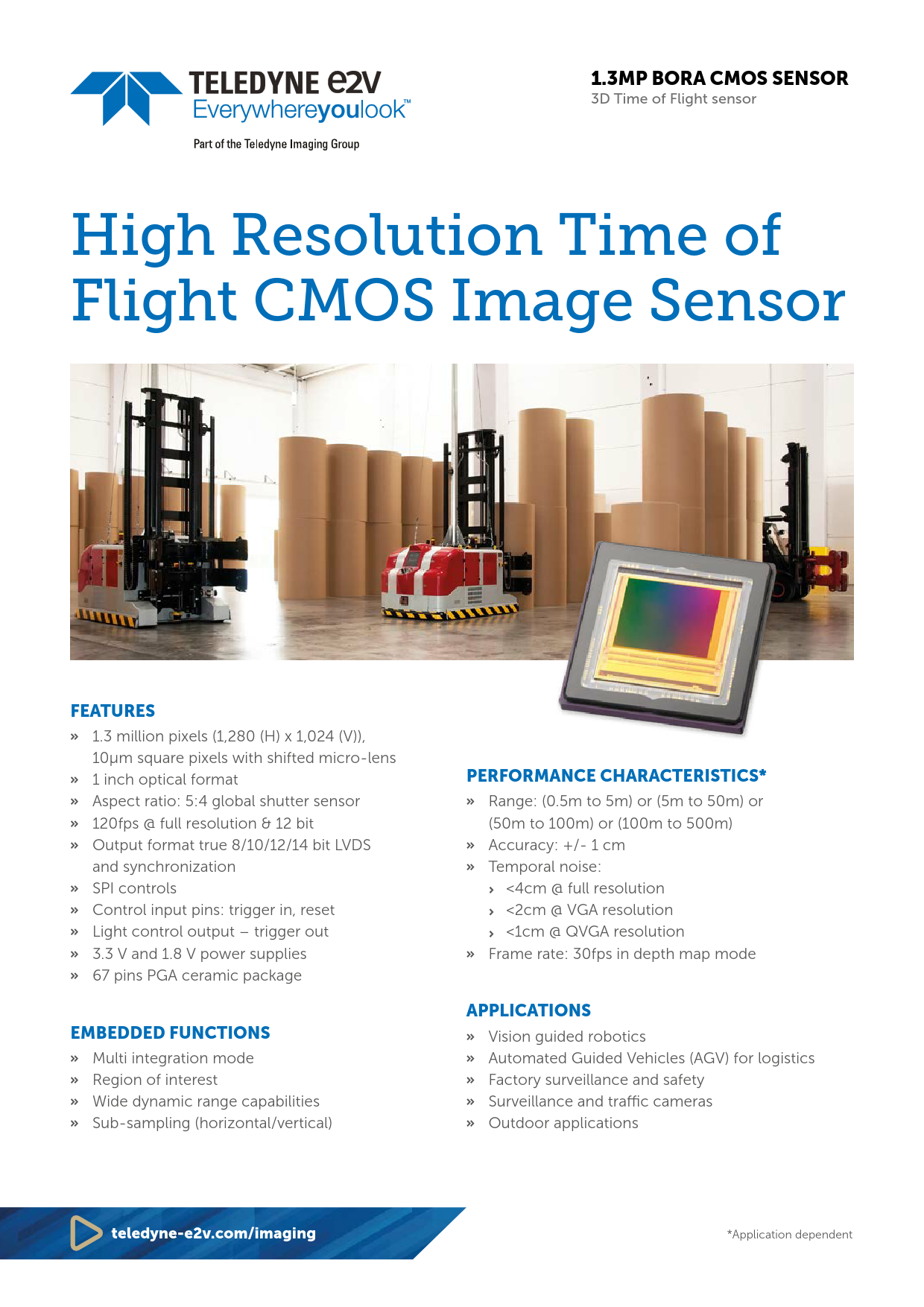

1.3MP BORA CMOS SENSOR
3D Time of Flight sensor High Resolution Time of Flight CMOS Image Sensor
FEATURES »
1.3 million pixels (1,280 (H) x 1,024 (V)), 10μm square pixels with shifted micro-lens
»
1 inch optical format
PERFORMANCE CHARACTERISTICS* »
Aspect ratio: 5:4 global shutter sensor
»
Range: (0.5m to 5m) or (5m to 50m) or
»
120fps @ full resolution & 12 bit (50m to 100m) or (100m to 500m)
»
Output format true 8/10/12/14 bit LVDS
»
Accuracy: +/- 1 cm and synchronization
»
Temporal noise:
»
SPI controls <4cm @ full resolution
»
Control input pins: trigger in, reset <2cm @ VGA resolution
»
Light control output – trigger out <1cm @ QVGA resolution
»
3.3 V and 1.8 V power supplies
»
Frame rate: 30fps in depth map mode
»
67 pins PGA ceramic package
APPLICATIONS EMBEDDED FUNCTIONS »
Vision guided robotics
»
Multi integration mode
»
Automated Guided Vehicles (AGV) for logistics
»
Region of interest
»
Factory surveillance and safety
»
Wide dynamic range capabilities
»
Surveillance and traffic cameras
»
Sub-sampling (horizontal/vertical)
»
Outdoor applications
teledyne-e2v.com/imaging
*Application dependent
3D Time of Flight sensor High Resolution Time of Flight CMOS Image Sensor
FEATURES »
1.3 million pixels (1,280 (H) x 1,024 (V)), 10μm square pixels with shifted micro-lens
»
1 inch optical format
PERFORMANCE CHARACTERISTICS* »
Aspect ratio: 5:4 global shutter sensor
»
Range: (0.5m to 5m) or (5m to 50m) or
»
120fps @ full resolution & 12 bit (50m to 100m) or (100m to 500m)
»
Output format true 8/10/12/14 bit LVDS
»
Accuracy: +/- 1 cm and synchronization
»
Temporal noise:
»
SPI controls <4cm @ full resolution
»
Control input pins: trigger in, reset <2cm @ VGA resolution
»
Light control output – trigger out <1cm @ QVGA resolution
»
3.3 V and 1.8 V power supplies
»
Frame rate: 30fps in depth map mode
»
67 pins PGA ceramic package
APPLICATIONS EMBEDDED FUNCTIONS »
Vision guided robotics
»
Multi integration mode
»
Automated Guided Vehicles (AGV) for logistics
»
Region of interest
»
Factory surveillance and safety
»
Wide dynamic range capabilities
»
Surveillance and traffic cameras
»
Sub-sampling (horizontal/vertical)
»
Outdoor applications
teledyne-e2v.com/imaging
*Application dependent
