Datasheet L6983 (STMicroelectronics) - 2
| 制造商 | STMicroelectronics |
| 描述 | 38 V 3A synchronous step-down converter with 17uA quiescent current |
| 页数 / 页 | 63 / 2 — L6983. DS13116. Rev 1. page 2/63 |
| 文件格式/大小 | PDF / 5.1 Mb |
| 文件语言 | 英语 |

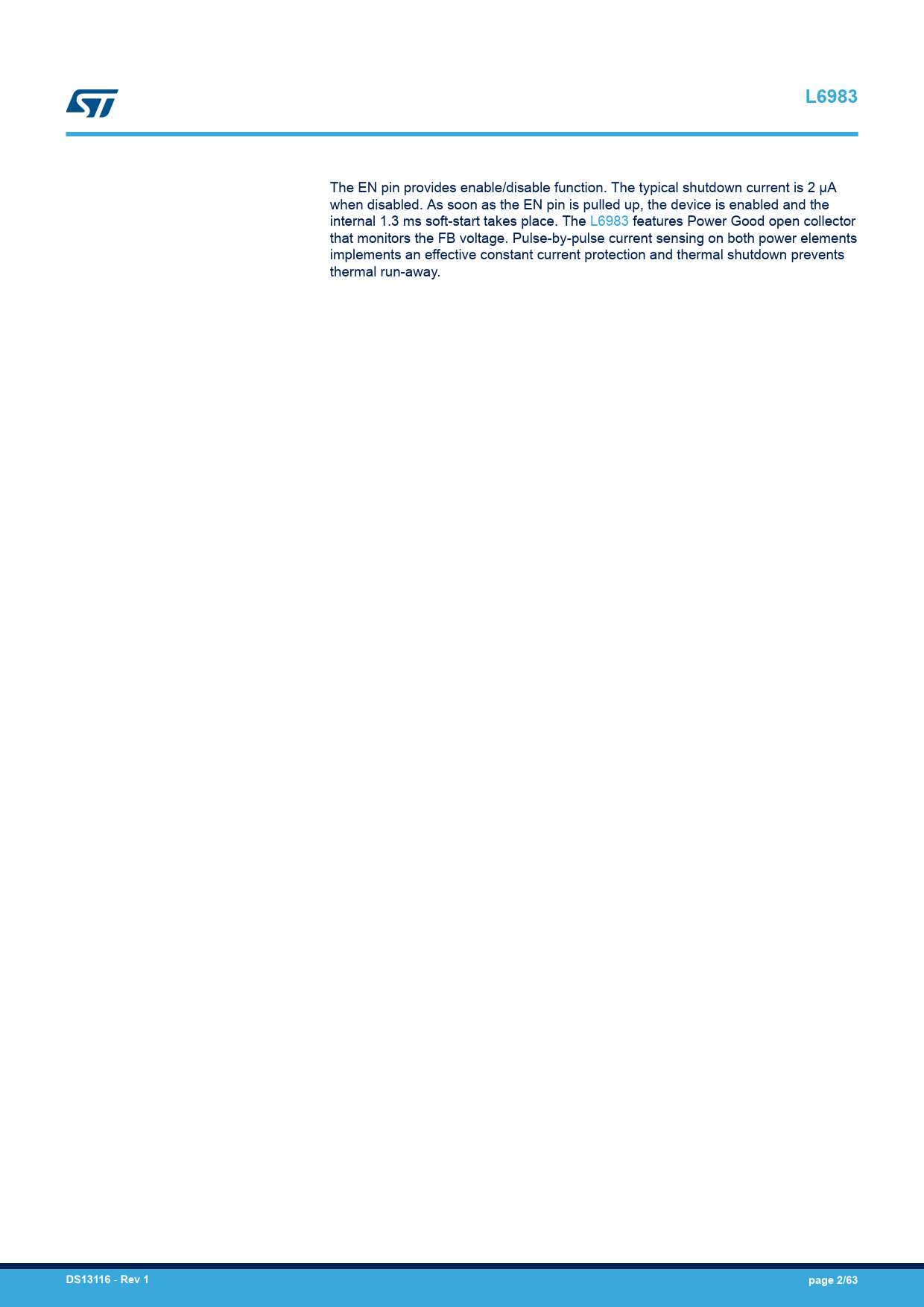

L6983. DS13116. Rev 1. page 2/63
该数据表的模型线
文件文字版本
L6983
The EN pin provides enable/disable function. The typical shutdown current is 2 µA when disabled. As soon as the EN pin is pulled up, the device is enabled and the internal 1.3 ms soft-start takes place. The L6983 features Power Good open collector that monitors the FB voltage. Pulse-by-pulse current sensing on both power elements implements an effective constant current protection and thermal shutdown prevents thermal run-away.
DS13116
-
Rev 1 page 2/63
Document Outline 1 Diagram 2 Pin configuration 3 Typical application circuit 4 Absolute maximum ratings 4.1 ESD protection 4.2 Thermal characteristics 5 Electrical characteristics 5.1 Frequency selection table 6 Functional description 6.1 Enable 6.2 Soft-start 6.3 Undervoltage lockout 6.4 Light-load operation 6.4.1 Low consumption mode (LCM) 6.4.2 Low noise mode (LNM) 6.4.3 Efficiency for low consumption mode and low noise mode part number 6.4.4 Load regulation for low consumption mode and Low noise mode part number 6.5 Switch-over feature 6.6 Spread spectrum 6.7 Overvoltage protection 6.8 Overcurrent protection 6.9 Thermal shutdown 6.10 Power Good 7 Closing the loop 7.1 GCO(s) control to output transfer function 7.2 Error amplifier compensation network 7.3 Voltage divider 8 Application notes 8.1 Programmable power up threshold 8.2 External synchronization (available for low noise mode only) 8.3 Output voltage adjustment 8.4 Switching frequency 8.5 Design of the power components 8.5.1 Input capacitor selection 8.5.2 Inductor selection 8.5.3 Output capacitor selection 9 Application board 10 Efficiency curves 11 Thermal dissipation 12 Package information 12.1 QFN16 (3x3 mm) package information 13 Ordering information Revision history
