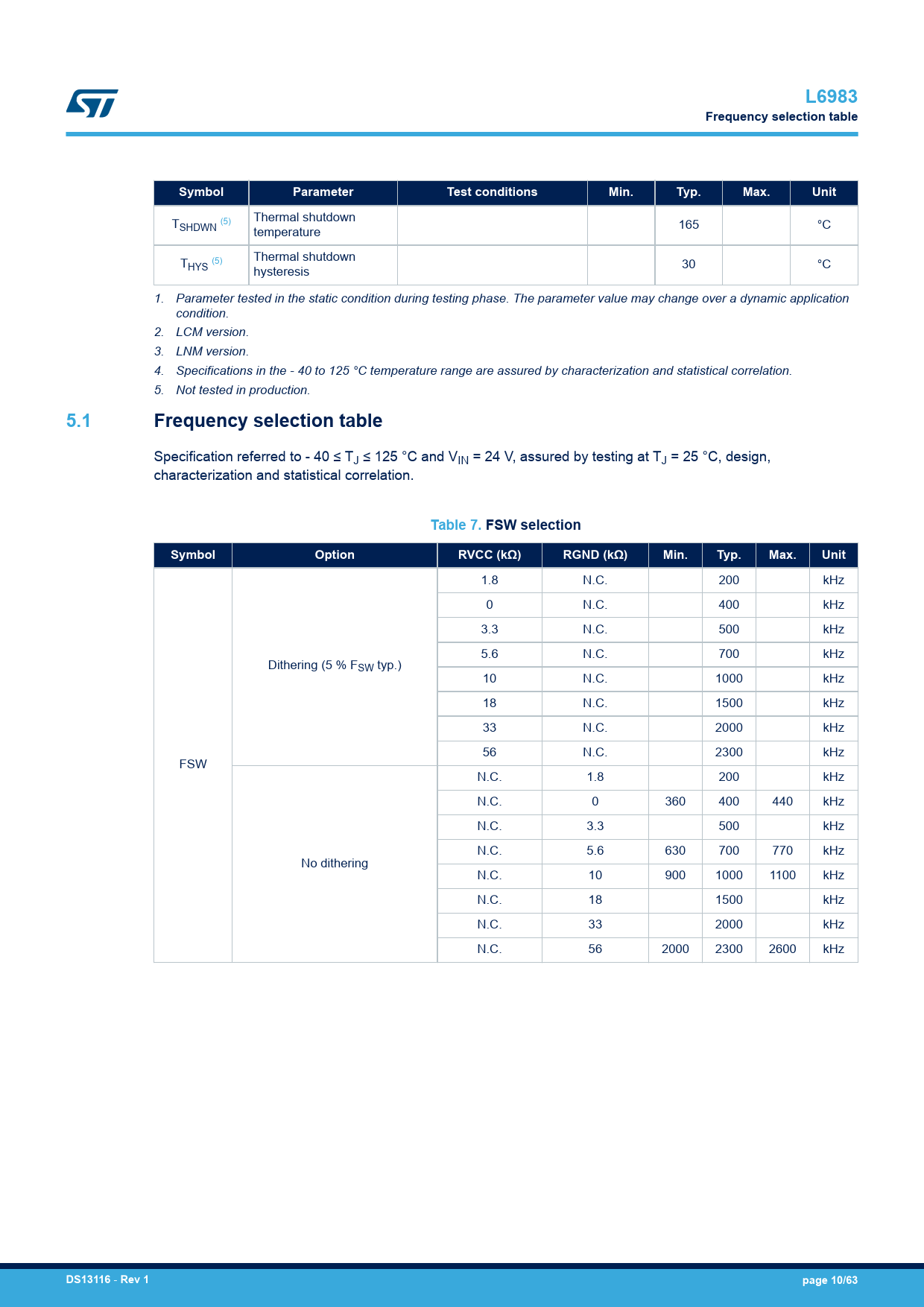

L6983 Frequency selection table Symbol Parameter Test conditions Min. Typ. Max. Unit
TSHDWN (5) Thermal shutdown 165 °C temperature THYS (5) Thermal shutdown 30 °C hysteresis 1. Parameter tested in the static condition during testing phase. The parameter value may change over a dynamic application condition. 2. LCM version. 3. LNM version. 4. Specifications in the - 40 to 125 °C temperature range are assured by characterization and statistical correlation. 5. Not tested in production.
5.1 Frequency selection table
Specification referred to - 40 ≤ TJ ≤ 125 °C and VIN = 24 V, assured by testing at TJ = 25 °C, design, characterization and statistical correlation.
Table 7. FSW selection Symbol Option RVCC (kΩ) RGND (kΩ) Min. Typ. Max. Unit
1.8 N.C. 200 kHz 0 N.C. 400 kHz 3.3 N.C. 500 kHz 5.6 N.C. 700 kHz Dithering (5 % FSW typ.) 10 N.C. 1000 kHz 18 N.C. 1500 kHz 33 N.C. 2000 kHz 56 N.C. 2300 kHz FSW N.C. 1.8 200 kHz N.C. 0 360 400 440 kHz N.C. 3.3 500 kHz N.C. 5.6 630 700 770 kHz No dithering N.C. 10 900 1000 1100 kHz N.C. 18 1500 kHz N.C. 33 2000 kHz N.C. 56 2000 2300 2600 kHz
DS13116
-
Rev 1 page 10/63
