Datasheet KW CELMM1.TG OSLON Boost HM LED (OSRAM) - 4
| 制造商 | OSRAM |
| 描述 | OSLON Boost HM LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 26 / 4 — link. to. page. 24. link. to. page. 24. link. to. page. 24. link. to. … |
| 文件格式/大小 | PDF / 1.6 Mb |
| 文件语言 | 英语 |
link. to. page. 24. link. to. page. 24. link. to. page. 24. link. to. page. 24. link. to. page. 24. KW. CELMM1.TG. Characteristics. I. =. 1500. mA;. T. =. 25. °C. F. S. Parameter. Symbol
该数据表的模型线
文件文字版本

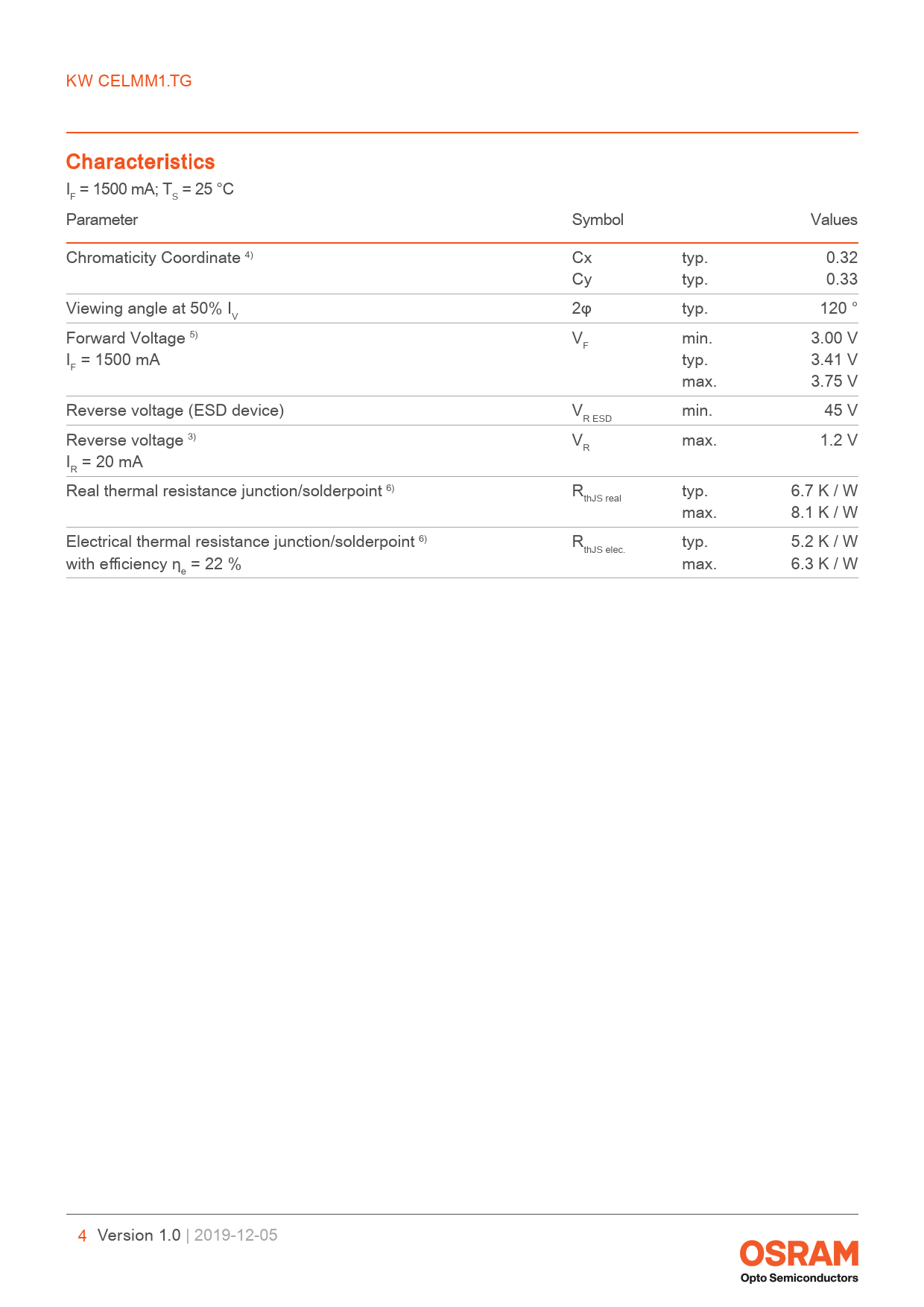

link to page 24 link to page 24 link to page 24 link to page 24 link to page 24 KW CELMM1.TG Characteristics I = 1500 mA; T = 25 °C F S Parameter Symbol Values Chromaticity Coordinate 4) Cx typ. 0.32 Cy typ. 0.33 Viewing angle at 50% I 2φ typ. 120 ° V Forward Voltage 5) V min. 3.00 V F I = 1500 mA typ. 3.41 V F max. 3.75 V Reverse voltage (ESD device) V min. 45 V R ESD Reverse voltage 3) V max. 1.2 V R I = 20 mA R Real thermal resistance junction/solderpoint 6) R typ. 6.7 K / W thJS real max. 8.1 K / W Electrical thermal resistance junction/solderpoint 6) R typ. 5.2 K / W thJS elec. with efficiency η = 22 % max. 6.3 K / W e 4 Version 1.0 | 2019-12-05
