Datasheet KW CELMM1.TG OSLON Boost HM LED (OSRAM) - 5
| 制造商 | OSRAM |
| 描述 | OSLON Boost HM LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 26 / 5 — link. to. page. 24. link. to. page. 24. link. to. page. 24. link. to. … |
| 文件格式/大小 | PDF / 1.6 Mb |
| 文件语言 | 英语 |
link. to. page. 24. link. to. page. 24. link. to. page. 24. link. to. page. 24. KW. CELMM1.TG. Brightness. Groups. Group. Luminous. Flux. 1). Luminous. Flux. 1). I. =. 1500. mA. I. =
该数据表的模型线
文件文字版本

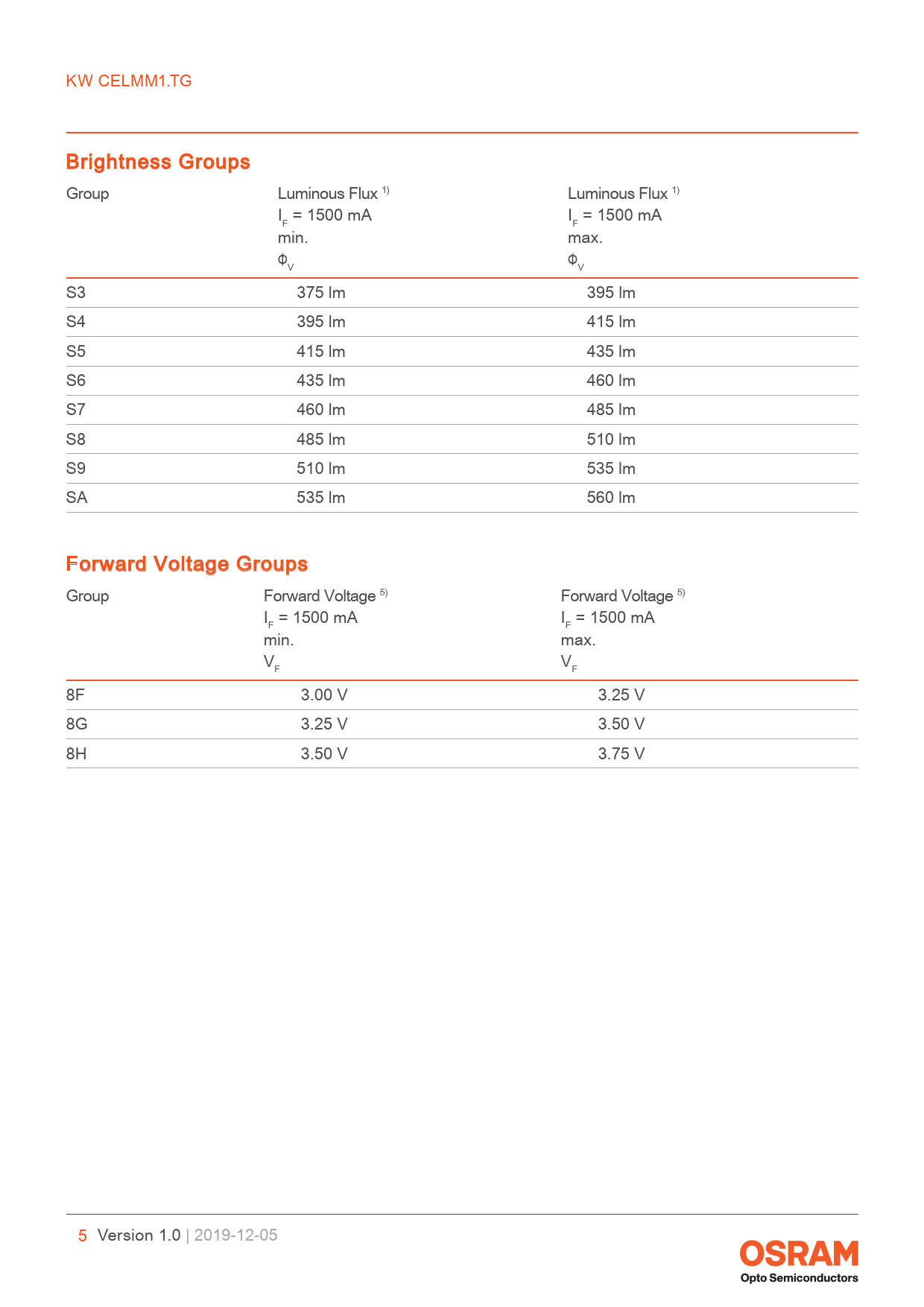

link to page 24 link to page 24 link to page 24 link to page 24 KW CELMM1.TG Brightness Groups Group Luminous Flux 1) Luminous Flux 1) I = 1500 mA I = 1500 mA F F min. max. Φ Φ V V S3 375 lm 395 lm S4 395 lm 415 lm S5 415 lm 435 lm S6 435 lm 460 lm S7 460 lm 485 lm S8 485 lm 510 lm S9 510 lm 535 lm SA 535 lm 560 lm Forward Voltage Groups Group Forward Voltage 5) Forward Voltage 5) I = 1500 mA I = 1500 mA F F min. max. V V F F 8F 3.00 V 3.25 V 8G 3.25 V 3.50 V 8H 3.50 V 3.75 V 5 Version 1.0 | 2019-12-05
