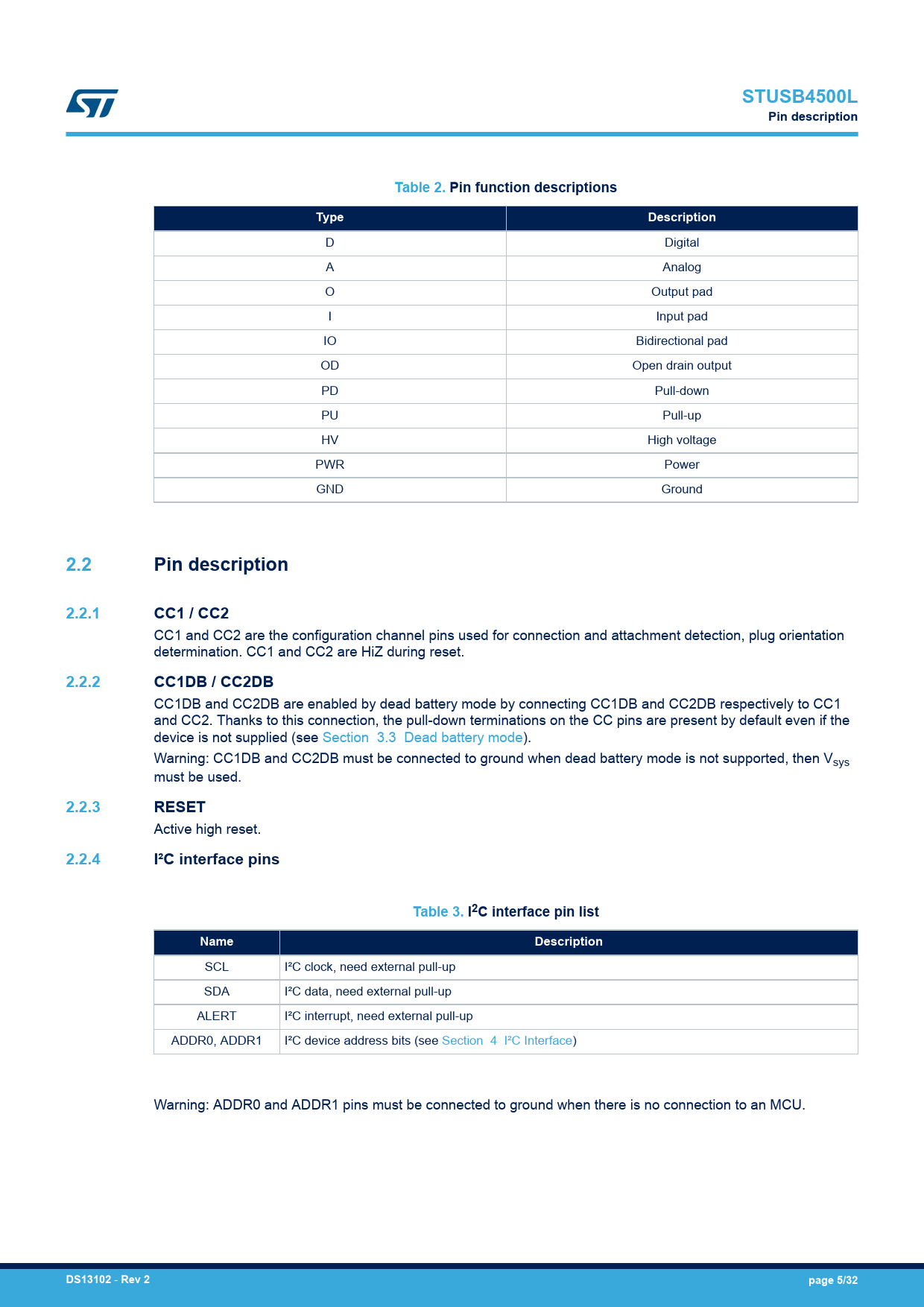

STUSB4500L. Pin description. Table 2. Pin function descriptions. Type. Description. 2.2. 2.2.1. CC1 / CC2. 2.2.2. CC1DB / CC2DB. 2.2.3. RESET
该数据表的模型线
文件文字版本
link to page 10 link to page 12
STUSB4500L Pin description Table 2. Pin function descriptions Type Description
D Digital A Analog O Output pad I Input pad IO Bidirectional pad OD Open drain output PD Pull-down PU Pull-up HV High voltage PWR Power GND Ground
2.2 Pin description 2.2.1 CC1 / CC2
CC1 and CC2 are the configuration channel pins used for connection and attachment detection, plug orientation determination. CC1 and CC2 are HiZ during reset.
2.2.2 CC1DB / CC2DB
CC1DB and CC2DB are enabled by dead battery mode by connecting CC1DB and CC2DB respectively to CC1 and CC2. Thanks to this connection, the pull-down terminations on the CC pins are present by default even if the device is not supplied (see Section 3.3 Dead battery mode). Warning: CC1DB and CC2DB must be connected to ground when dead battery mode is not supported, then Vsys must be used.
2.2.3 RESET
Active high reset.
2.2.4 I²C interface pins Table 3. I2C interface pin list Name Description
SCL I²C clock, need external pull-up SDA I²C data, need external pull-up ALERT I²C interrupt, need external pull-up ADDR0, ADDR1 I²C device address bits (see Section 4 I²C Interface) Warning: ADDR0 and ADDR1 pins must be connected to ground when there is no connection to an MCU.
