Datasheet LTC6991 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | TimerBlox: Resettable, Low Frequency Oscillator |
| 页数 / 页 | 24 / 8 — PIN FUNCTIONS (DCB/S6) GND (Pin 5/Pin 2):. OUT (Pin 6/Pin 6):. BLOCK … |
| 修订版 | D |
| 文件格式/大小 | PDF / 671 Kb |
| 文件语言 | 英语 |

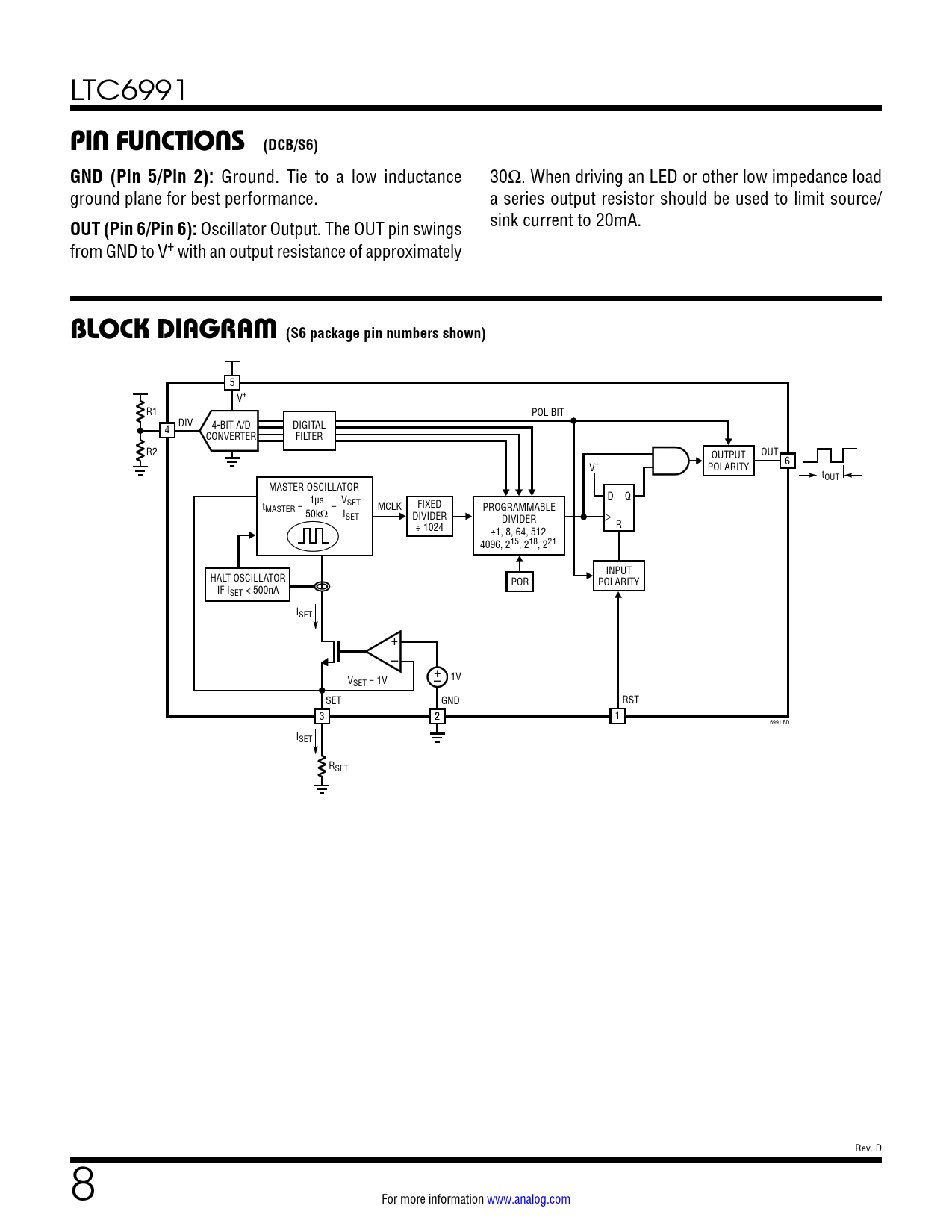

PIN FUNCTIONS (DCB/S6) GND (Pin 5/Pin 2):. OUT (Pin 6/Pin 6):. BLOCK DIAGRAM (S6 package pin numbers shown)
该数据表的模型线
- LTC6991CDCB#TRMPBF LTC6991CDCB#TRPBF LTC6991CS6#TRMPBF LTC6991CS6#TRPBF LTC6991HDCB#TRMPBF LTC6991HDCB#TRPBF LTC6991HS6#TRMPBF LTC6991HS6#TRPBF LTC6991HS6#WTRMPBF LTC6991HS6#WTRPBF LTC6991IDCB#TRMPBF LTC6991IDCB#TRPBF LTC6991IS6#TRMPBF LTC6991IS6#TRPBF LTC6991IS6#WTRMPBF LTC6991IS6#WTRPBF LTC6991MPS6#TRMPBF LTC6991MPS6#TRPBF
文件文字版本
LTC6991
PIN FUNCTIONS (DCB/S6) GND (Pin 5/Pin 2):
Ground. Tie to a low inductance 30Ω. When driving an LED or other low impedance load ground plane for best performance. a series output resistor should be used to limit source/
OUT (Pin 6/Pin 6):
Oscillator Output. The OUT pin swings sink current to 20mA. from GND to V+ with an output resistance of approximately
BLOCK DIAGRAM (S6 package pin numbers shown)
5 V+ R1 POL BIT DIV 4-BIT A/D DIGITAL 4 CONVERTER FILTER R2 OUTPUT OUT 6 V+ POLARITY tOUT MASTER OSCILLATOR 1µs V D Q t SET = MCLK FIXED MASTER = PROGRAMMABLE 50kΩ ISET DIVIDER DIVIDER ÷ 1024 R ÷1, 8, 64, 512 4096, 215, 218, 221 INPUT HALT OSCILLATOR POR POLARITY IF ISET < 500nA ISET + – + VSET = 1V – 1V SET GND RST 3 2 1 6991 BD ISET RSET Rev. D 8 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
