Datasheet PSMN0R9-25YLC (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology |
| 页数 / 页 | 15 / 4 — Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in … |
| 修订版 | 02042018 |
| 文件格式/大小 | PDF / 933 Kb |
| 文件语言 | 英语 |

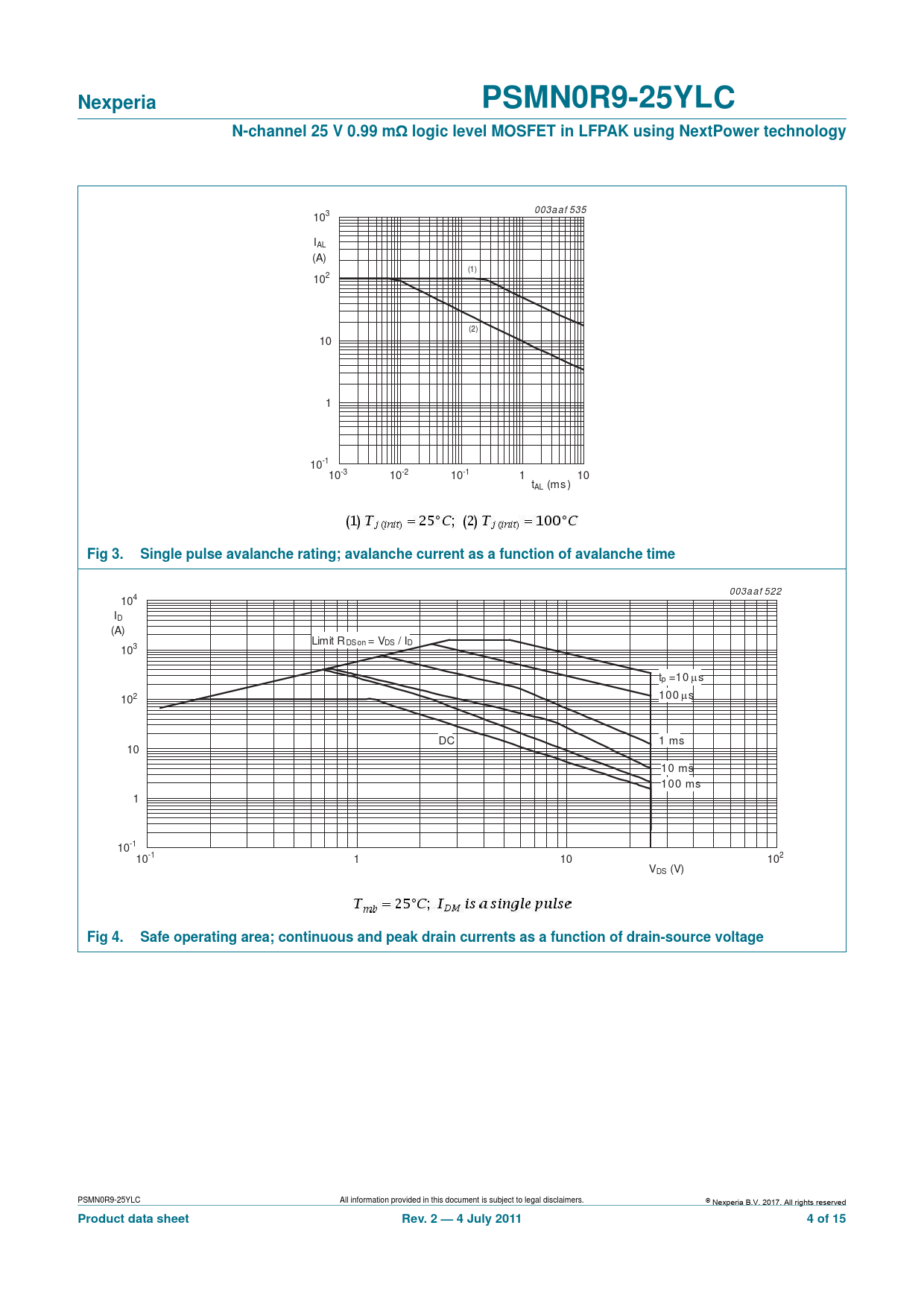

Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology. Fig 3
该数据表的模型线
文件文字版本
Nexperia PSMN0R9-25YLC N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology
003a a f 535 103 IAL (A) (1) 102 (2) 10 1 10-1 10-3 10-2 10-1 1 10 tAL (ms )
Fig 3. Single pulse avalanche rating; avalanche current as a function of avalanche time
003a a f 522 104 ID (A) Limit R DSon = VDS / ID 103 tp =10 s 102 100 s DC 1 ms 10 10 ms 100 ms 1 10-1 10-1 1 10 102 VDS (V)
Fig 4. Safe operating area; continuous and peak drain currents as a function of drain-source voltage
PSMN0R9-25YLC All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 4 July 2011 4 of 15
