| 制造商 | Nexperia |
| 描述 | N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology |
| 页数 / 页 | 15 / 5 — Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in … |
| 修订版 | 02042018 |
| 文件格式/大小 | PDF / 933 Kb |
| 文件语言 | 英语 |
Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology
该数据表的模型线
文件文字版本
link to page 5

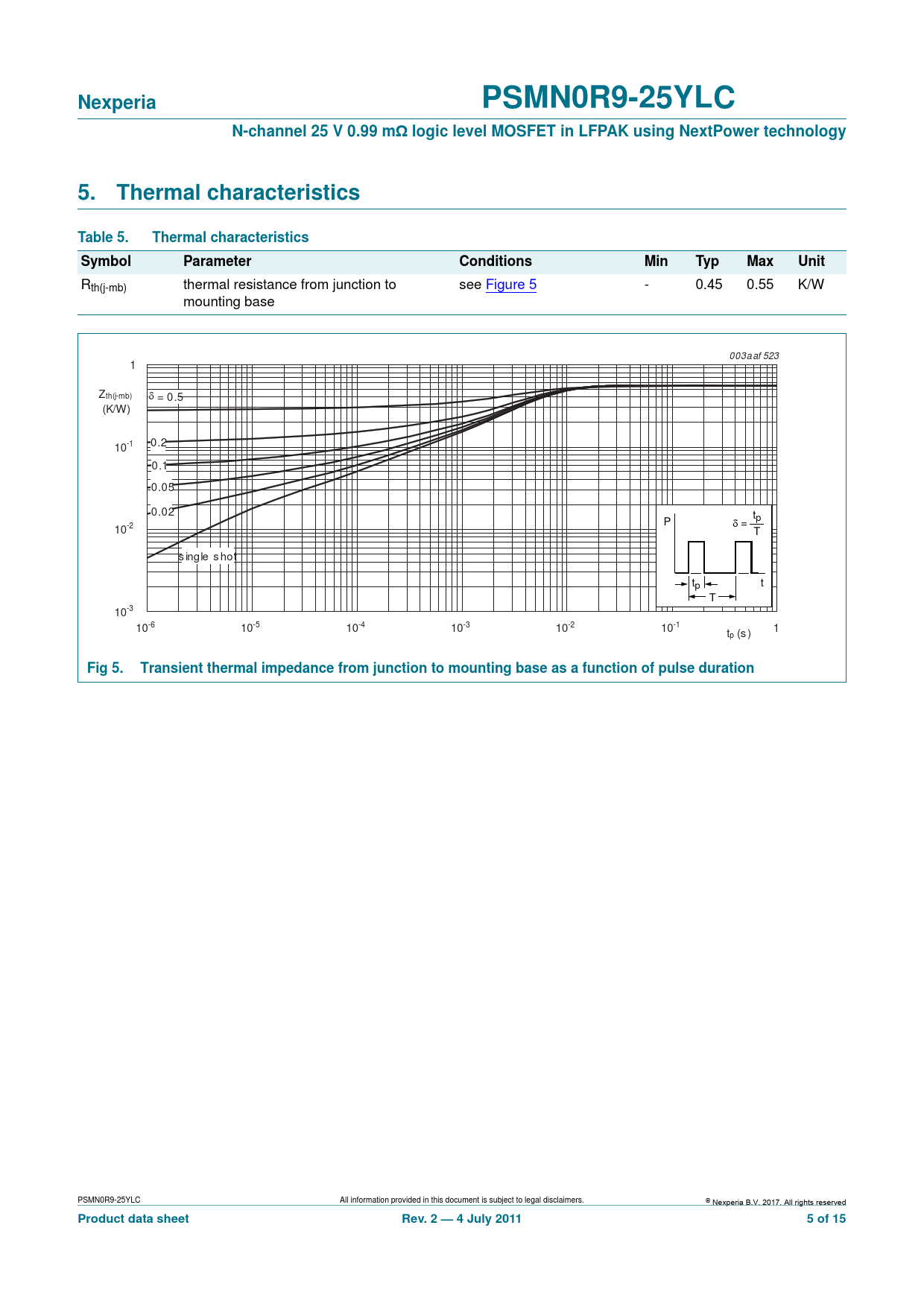

Nexperia PSMN0R9-25YLC N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology 5. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-mb) thermal resistance from junction to see Figure 5 - 0.45 0.55 K/W mounting base 003a af 523 1 Zth(j-mb) = 0.5 (K/W) 0.2 10-1 0.1 0.05 0.02 t P p = 10-2 T s ingle s hot tp t T 10-3 10-6 10-5 10-4 10-3 10-2 10-1 1 tp (s )
Fig 5. Transient thermal impedance from junction to mounting base as a function of pulse duration
PSMN0R9-25YLC All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 4 July 2011 5 of 15
