Datasheet PSMN0R9-25YLC (Nexperia) - 7
| 制造商 | Nexperia |
| 描述 | N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology |
| 页数 / 页 | 15 / 7 — Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in … |
| 修订版 | 02042018 |
| 文件格式/大小 | PDF / 933 Kb |
| 文件语言 | 英语 |
Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology. Table 6
该数据表的模型线
文件文字版本
link to page 10 link to page 10 link to page 10

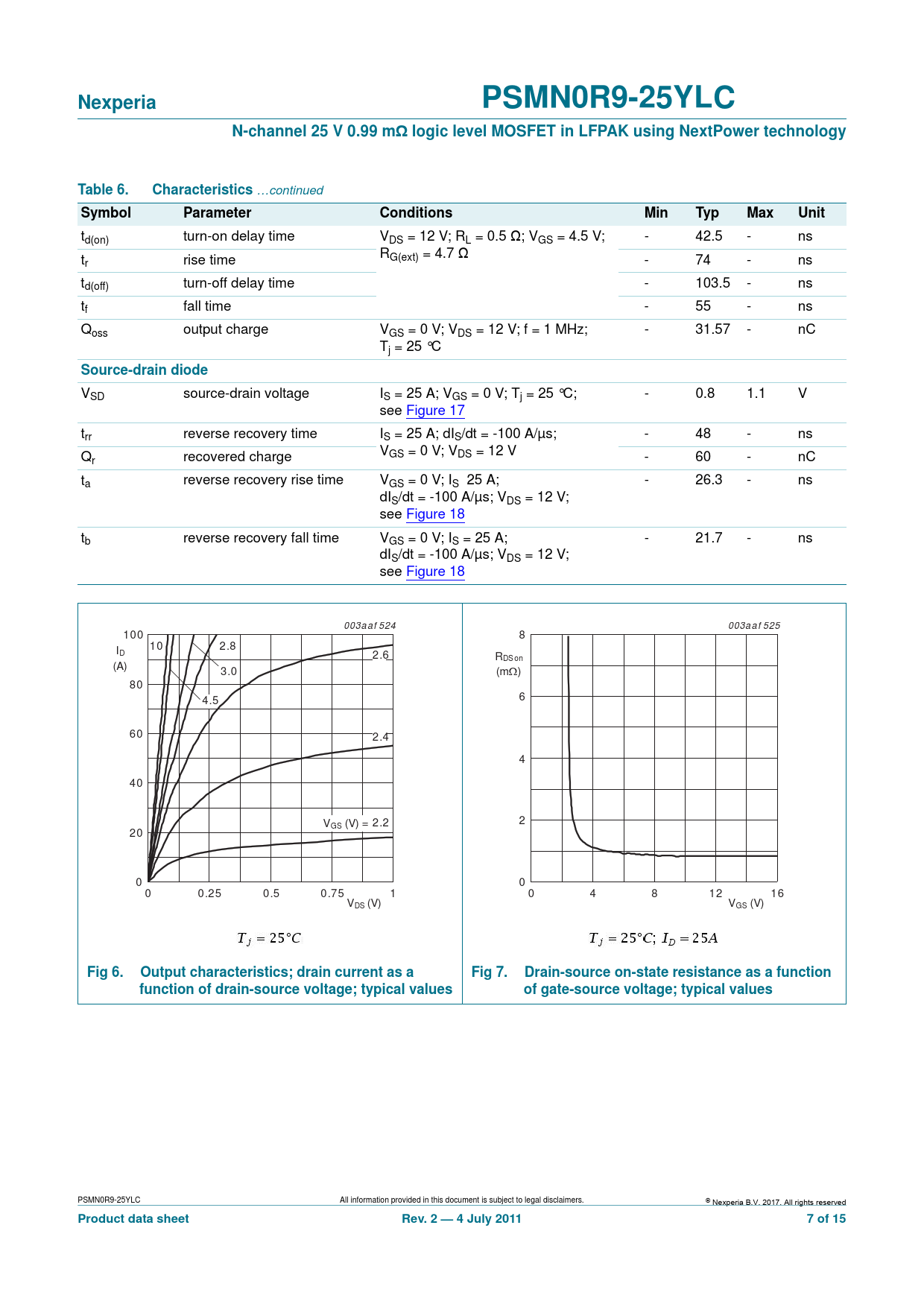

Nexperia PSMN0R9-25YLC N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology Table 6. Characteristics
…continued
Symbol Parameter Conditions Min Typ Max Unit
td(on) turn-on delay time VDS = 12 V; RL = 0.5 Ω; VGS = 4.5 V; - 42.5 - ns RG(ext) = 4.7 Ω tr rise time - 74 - ns td(off) turn-off delay time - 103.5 - ns tf fall time - 55 - ns Qoss output charge VGS = 0 V; VDS = 12 V; f = 1 MHz; - 31.57 - nC Tj = 25 °C
Source-drain diode
VSD source-drain voltage IS = 25 A; VGS = 0 V; Tj = 25 °C; - 0.8 1.1 V see Figure 17 trr reverse recovery time IS = 25 A; dIS/dt = -100 A/µs; - 48 - ns VGS = 0 V; VDS = 12 V Qr recovered charge - 60 - nC ta reverse recovery rise time VGS = 0 V; IS 25 A; - 26.3 - ns dIS/dt = -100 A/µs; VDS = 12 V; see Figure 18 tb reverse recovery fall time VGS = 0 V; IS = 25 A; - 21.7 - ns dIS/dt = -100 A/µs; VDS = 12 V; see Figure 18 003a a f 524 003a a f 525 100 8 I 10 2.8 D 2.6 RDSon (A) 3.0 (m) 80 4.5 6 60 2.4 4 40 V 2.2 2 GS (V) = 20 0 0 0 0.25 0.5 0.75 1 0 4 8 12 16 VDS (V) VGS (V)
Fig 6. Output characteristics; drain current as a Fig 7. Drain-source on-state resistance as a function function of drain-source voltage; typical values of gate-source voltage; typical values
PSMN0R9-25YLC All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 4 July 2011 7 of 15
