LND150/LND250 4.0 FUNCTIONAL DESCRIPTION

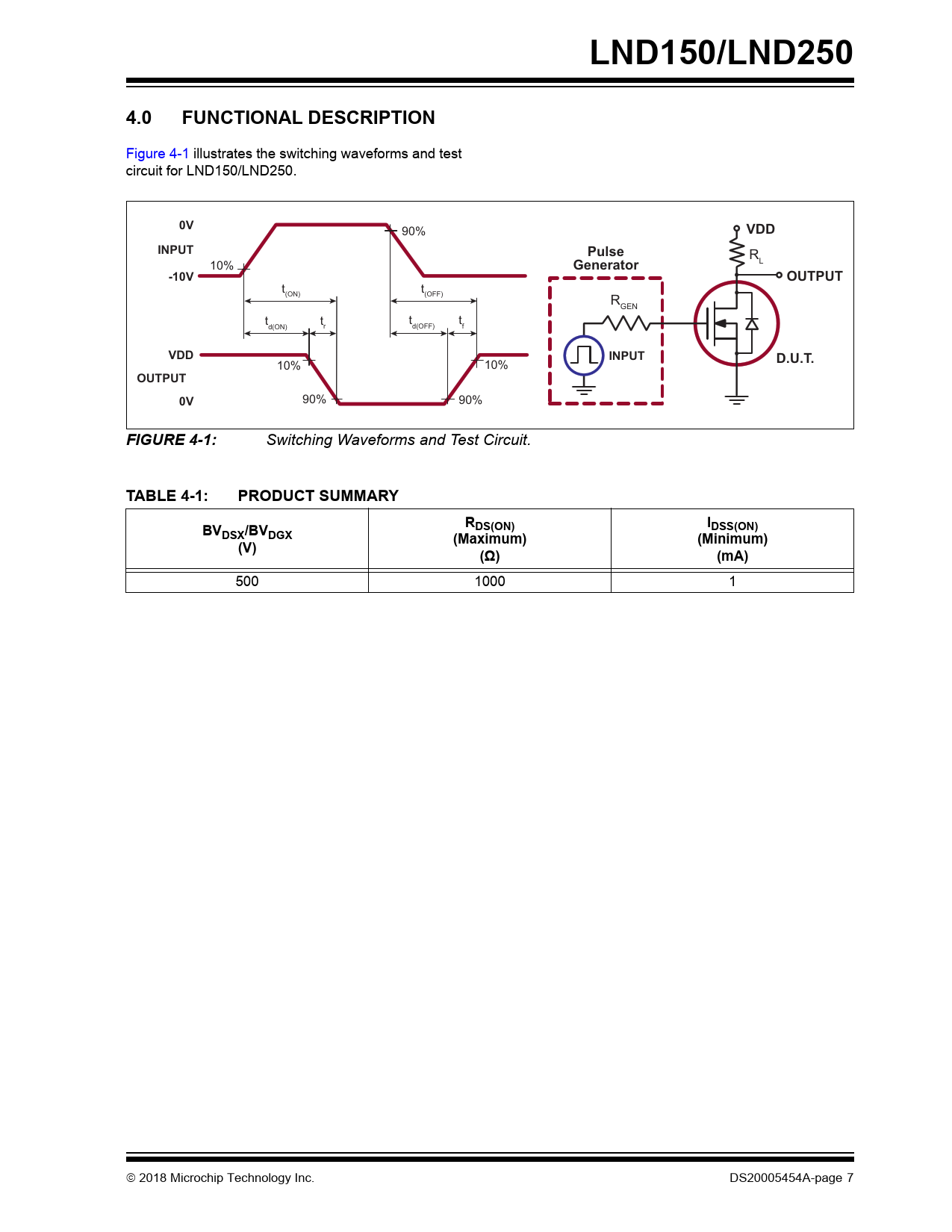

Figure 4-1 illustrates the switching waveforms and test circuit for LND150/LND250.
0V
90%
VDD INPUT Pulse
R 10%
Generator
L
-10V OUTPUT
t t (ON) (OFF) RGEN t t t t d(ON) r d(OFF) f
VDD INPUT D.U.T.
10% 10%
OUTPUT 0V
90% 90%
FIGURE 4-1:
Switching Waveforms and Test Circuit.
TABLE 4-1: PRODUCT SUMMARY R I BV DS(ON) DSS(ON) DSX/BVDGX (Maximum) (Minimum) (V) (Ω) (mA)
